Automobile pvc Carpet /heelmat high frequency welding machine
High Frequency Welding Machine for Automobile carpet which is suitable for PVC heelmat and automobile carpet .

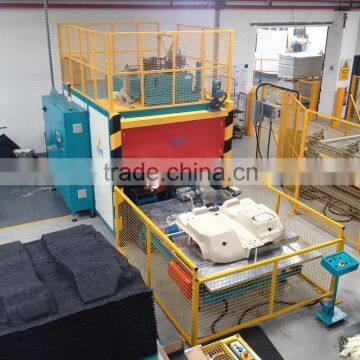

Automatic Car Carpet Welding Machine is specially designed for producing carpets for Audi A2; the Ford MONDEO;
Mercedes SLK; OPEL ASTRA, EPSILON, SAPHIRA; Porsche 982,996; Volkswagen COLORADO, POLO, GOLF,
PASSAT NEW BEETLE Chrysler, Skoda, Seat, Peugeot, BMW, Volvo and many other automobile models

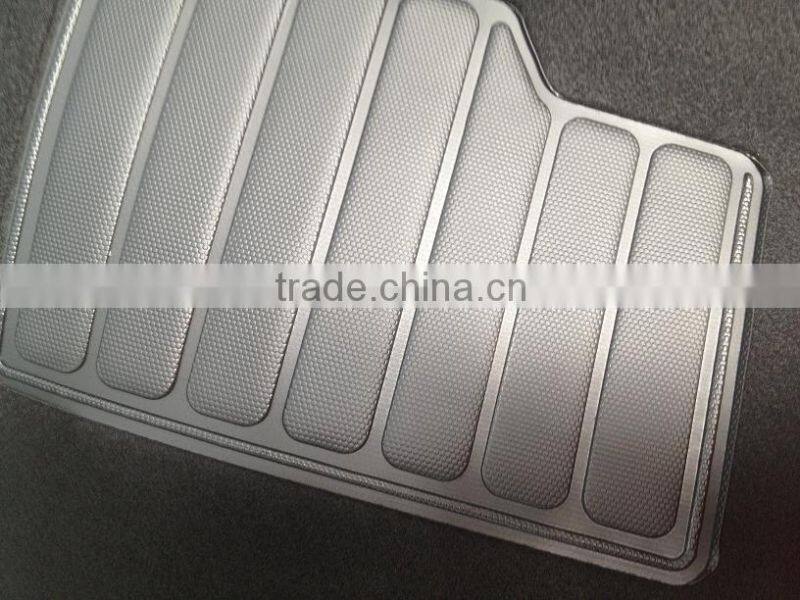

1. Apply for welding the heel-mat on the carpet
2. Suitable for LHD & RHD car.
3. Customized service offered.
4. Hydraulic Pressure from 2 ton -5 ton.
5. PLC programmed
Machine General Features:
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
12. High frequency welding press pneumatically operated
Optional Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

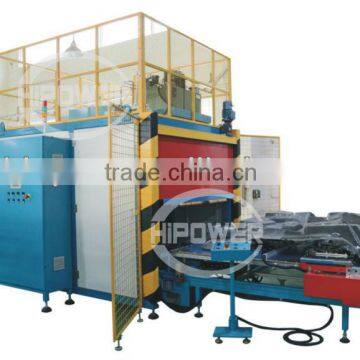

Hipower High frequency welding machine for automobile carpet.
Model: HR-15KW-2QT
HF power: 15000W
Power supply: 380V 3P 50HZ
HF frequency: 27.12MHz
Input power: 25KVA
Rectifier: SILICON DIODE
Electron tube: 8T85RB
Max pressure: 2000KG (Hydraulic)
The gap of electrod: 150MM

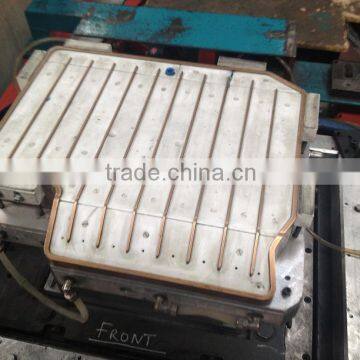

The size of active horn: 150MM
The size of upper mold:550*400MM
The size of lower mold:600*500MM
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and
durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Who We Are:

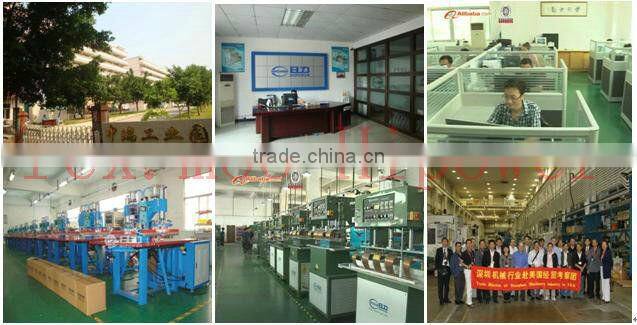

Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology
support, customer-oriented service and competitive price.
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
What we do and Why Us:
Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic
welding technology,automation of production processes and other innovative industrial solutions.
Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts
Tarpaulin, Big Covers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box,
and other plastic welding industries.
All machines are completely safe for the operator and fully comply with CE regulations.
Questions 01. How Do You Pack the machines?
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting
standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a
complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine
easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines?
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04. Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.

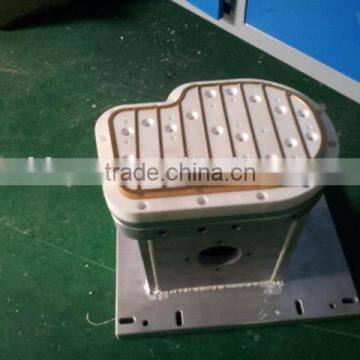

Questions 06. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07. Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point
like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08. What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test
on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
