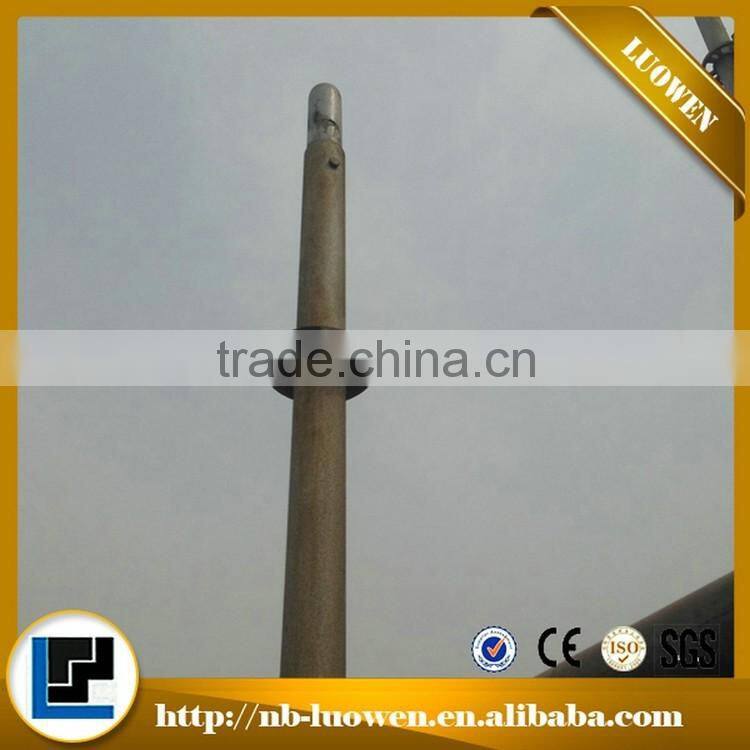

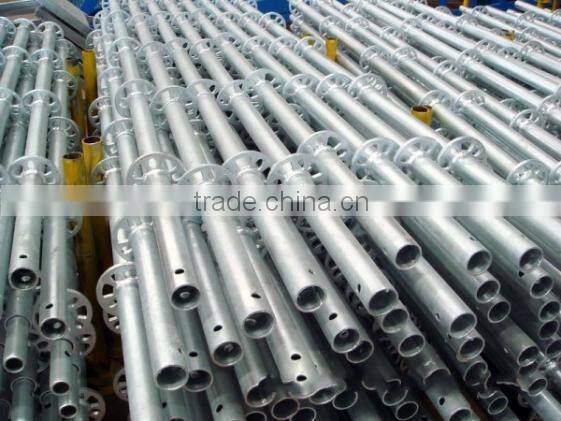

1. Hydraulic Scaffolding Ringlock Standard
Ringlock scaffolding standard is made of Q235 steel tube, OD is 48.3mm, thickness is 3.25mm,
surface can be hot dip galvanized or dip painted.
The drop forged rosettes of ringlock scaffoling are welded on standard every 500mm, which is
international standard. Each rosette have 8 holes, including 4 large holes and 4 small holes. so
ringlock scaffolding allow the legers and standards are not at right angle. which means the
ringlock scaffolding can be used for any shape of building.
Connect pin can be adjustable or fixed on standards, as you like.
Length |
1000mm |
1500mm |
2000mm |
2500mm |
3000mm |
||||

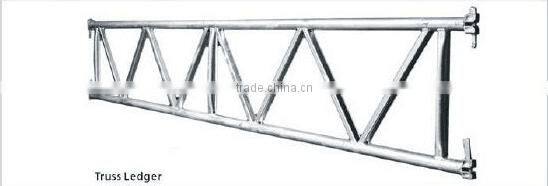

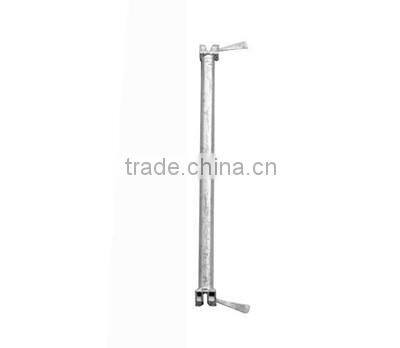

2. Hydraulic Scaffolding Ringlock Ledger
Ringlock scaffolding ledgers is also made of Q235 steel tube, OD is 48.3mm, thickness is
3.25mm, surface can be hot dip galvanized or dip painted.

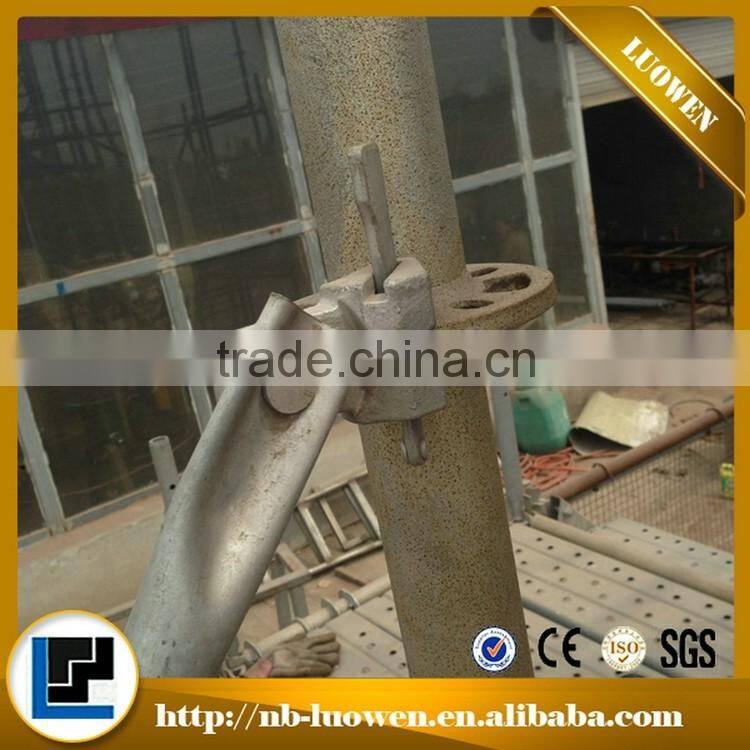

The ledger blade is drop forged, and strong welded at the end of ledger. ledger blade has
lock pin, which can lock the ledgers on rosette, and the lock pin are also fixed on the blade
and will not come out, so you don't worry about it will lost.
Length |
1000mm |
1770mm |
2000mm |
||

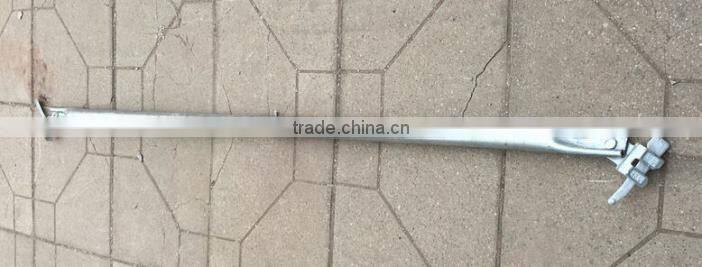

3. Hydraulic Scaffolding Ringlock Diagonal Brace
Ringlock scaffolding cross brace is also made of Q235 steel tube, OD is 48.3mm, thickness
is 3.0mm, surface can be hot dip galvanized or dip painted.
The ringlock scaffolding cross brace is used for stable the whole system, which is according
to trangle theory.
Length |
2411mm |
2244mm |

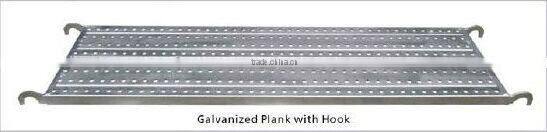

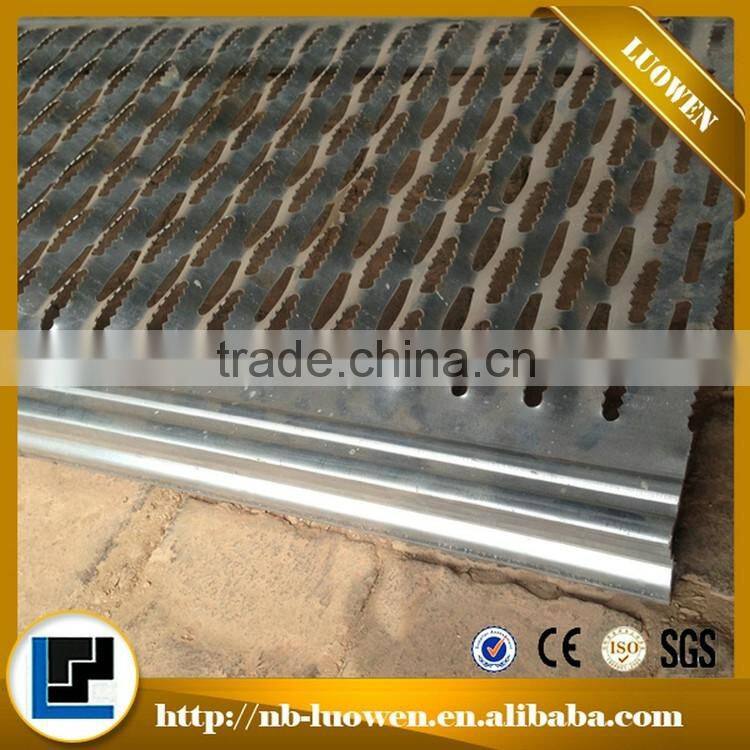

4. Hydraulic Scaffolding Ringlock Plank
Ringlock scaffolding plank is made of Q235 steel sheet, which has skid-risistant and waterproof
surface. At the end of plank, hooks are welded to make plank lock on scaffolding ledgers.
Length |
1800mm |
Width |
420mm |
Height |
40mm |
5. Hydraulic Scaffolding Ringlock Jack Base
Jack base can be solid or hollow, surface can be painted or hot dip galvanized, ringlock scaffolding
jack base is used for stable the whole system and make sure all scaffolding standards are at the same horizontal plane, and it also can disperse the loading of standards.
base plate |
120*120*2.5mm |
screw |
700*38mm |
||
2.Well-trained & experienced staffs are to answer all your inquiries professional in English of course.
3..All of our goods will pass THREE QUALITY INSPECTIONS before shipment.
4.Excellent quality and Competitive price,OEM is highly welcomed. We have strong R&D team here to help.
5.Less than one container loading is accepted.
6.On time delivery, in general 25-40 days.
7.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
