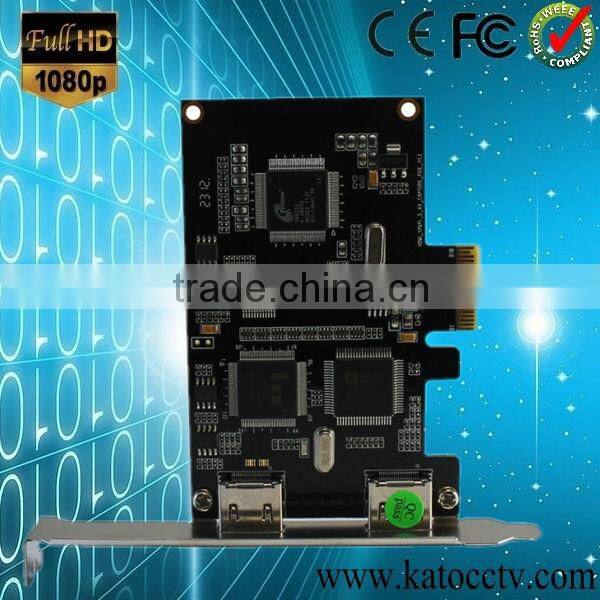

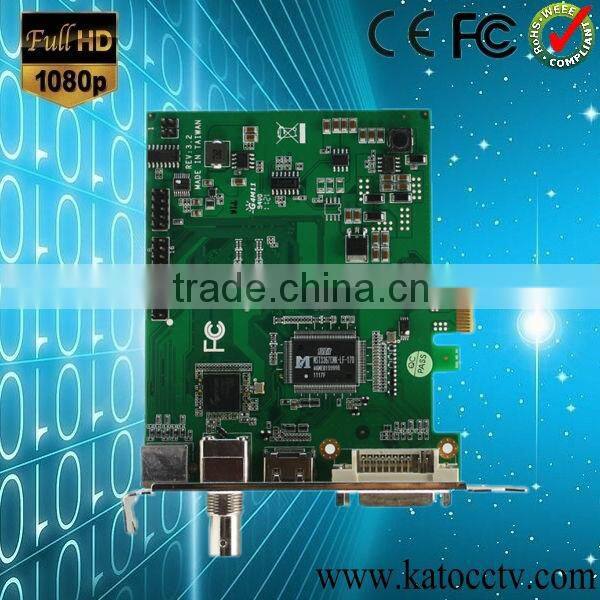

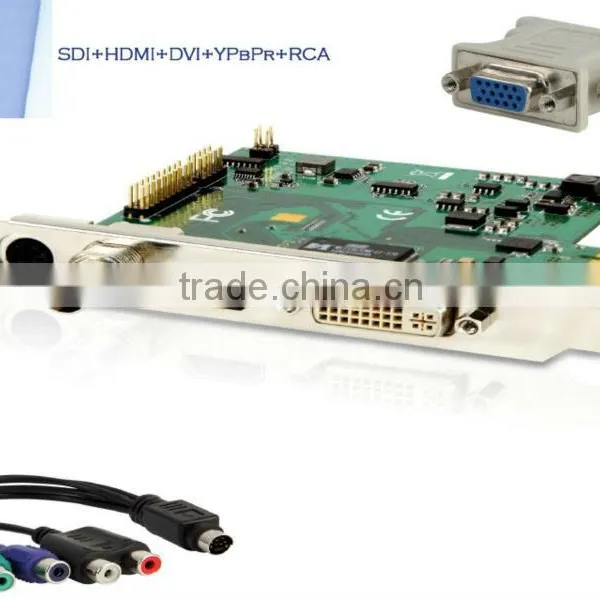

4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device

Shenzhen KATO Vision Co., Limited
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device thumbnail-1
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device thumbnail-2
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device thumbnail-3
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device thumbnail-4
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device thumbnail-5
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device thumbnail-6
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device photo-1
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device photo-2
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device photo-3
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device photo-4
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device photo-5
4ch Hdmi Capture Card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device photo-6
US$ 260 - 280 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KATO/OEM, HDCA02 4ch hdmi capture card
Model Number:
HDCA02
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KATO/OEM, HDCA02 4ch hdmi capture card
Model Number HDCA02

The future of video collaboration is now

Our new products and solutions have begun to transform the industry by redefine the video collaboration experience as we know it



PCIe HD Video Capture Grabber

(HOT)



Overview of Video Capture Card 4ch hdmi capture card

This HD video grabber with whole A/V input terminal, support 1080p/ 720p / 480p / 480i,1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. offer DVI-I (DVI-D or VGA) input, can connect another PC / Mac display card to record directly.



Feature of Video Capture Card 4ch hdmi capture card

-Support Windows 7

-Support HD 1080p real-time record

-MPEG-4 real-time compress

-MST3367CMK-LF-170 10-bit HD Image processing chip

-PCI-Express *1, support plug and play

-Support NTSC/PAL

-Dynamic acquisition: AVI(MPEG-4/VBR) and Static collection:BMP/JPG format

-Sampling frequency: 16-bit / 32~48KHz/ Stereo

-4:3 / 16:9 display

-Image window zoom and full screen preview

-Video format detect, window display ration automatically

-Zooming display function (MouseWheel)



Resolution Support of Video capture card 4ch hdmi capture card

Input Terminal



Mode

NTSC

PAL

SDI

HD

1080P

1920*1080p*30fps

1920*1080p*25fps

1920*1080p*24fps

1920*1080p*24fps

1080I

1920*1080i*30fps

1920*1080i*25fps

720P

1920*720p*60fps

1920*720p*50fps

Ypbpr

VGA

DVI

HDMI

HD

1080P

1920*1080p*30fps

1920*1080p*25fps

1920*1080p*24fps

1920*1080p*24fps

1080I

1920*1080i*30fps

1920*1080i*25fps

720P

1920*720p*60fps

1920*720p*50fps

SD

480P

720*480p*60fps

720*576p*50fps

480I

720*480i*30fps

720*576i*25fps

VGA

DVI

HDMI

PC

800*600p*60fps

800*600p*60fps

1024*768p*60fps

1024*768p*60fps

1280*960p*60fps

1280*960p*60fps

1280*1024p*60fps

1280*1024p*60fps

1440*900p*60fps

1440*900p*60fps



Parameter of Video Capture Card 4ch hdmi capture card

Dimension

114.44*101.03(mm)

Interface

PCIe*1

Video Input

1*SDI, 1*HDMI, 1*DVI-D, 1*DVI-A, 1*Ypbpr

Video Format

YUY2

Video Resolution

NTSC/PAL

1920*1080p@30/25/24fps

1920*1080i@60/50fps

1280*720p@60/50/30/25fps

720*480p@60fps

7208576i@50fps



(HDMI, DVI-D/I, Ypbpr only)

1440*900p@60fps

1280*1024p@60fps

1280*960p@60fps

1024*768p@60fps

800*660p@60fps

640*480p@60fps

720*480p@60fps

720*586p@60fps

Video Record Format

MPEG4/H.264(Depend on Software Application)

Video Record Resolution

NTSC/PAL

1920*1080p@30/25/24fps

1920*1080i@60/50fps

1280*720p@60/50/30/25fps

720*480p@60fps

7208576i@50fps



(HDMI, DVI-D/I, Ypbpr only)

1440*900p@60fps

1280*1024p@60fps

1280*960p@60fps

1024*768p@60fps

800*660p@60fps

640*480p@60fps

720*480p@60fps

720*586p@60fps

Audio Input

1*SDI, 1*HDMI, 2*RCA

Audio Format

Stereo / 16-bit/3200-4800Hz

I/O

16

WatchDog

√

Multi Card Composite

∞

SDK

VC++ / .NET / BCB / VB/ V4L2

Operation System

WINDOWS XP /VISTA/ 7

Linux 2.6. 14 or higher

(32-bit and 64-bit)

Accessories:



Driver Disk

Ypbpr & Audio connecter

DVI to D-SUB(VGA)

Warrantee Card

User Manual





Notes of Video capture card 4ch hdmi capture card

DVI input DVI-I

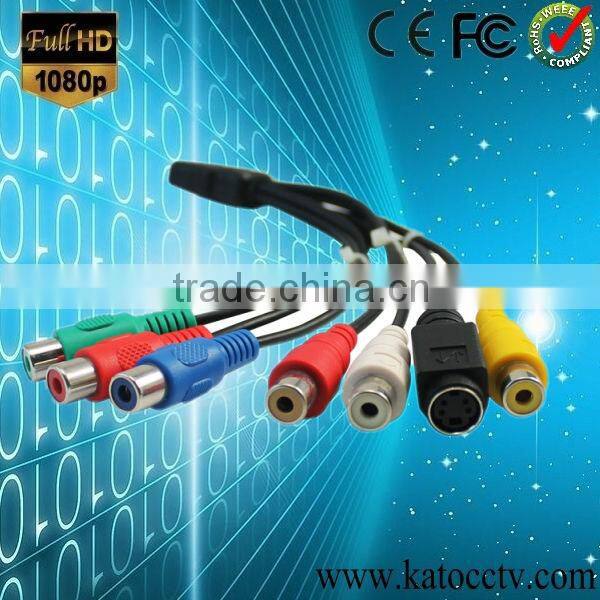

YPbPr & Audio connecter

4ch hdmi capture card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device



4ch hdmi capture card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device4ch hdmi capture card 1080p PCI-e SDI DVI HDMI Ypbpr VGA Video Capture Device
