Specifications
1.DVI HD-SDI HDMI VGA Ypbpr Input2.1920 *1080i(50/60), 1920 *1080p(24/25/30)
3.WINDOWS XP /VISTA/ 7 Linux (32-bit and 64-bit)

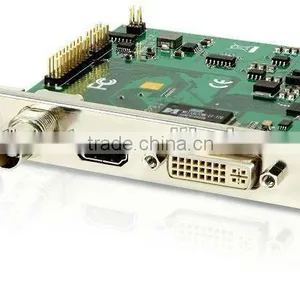

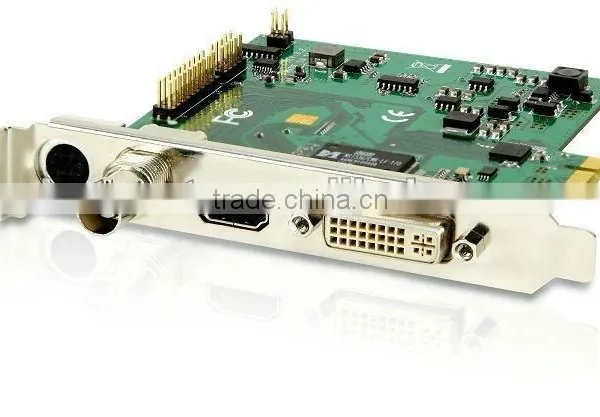

4CH PCIe HDMI Video Capture Card with DVI HD-SDI Ypbpr Input
Product Overview
Interface: PCI Express x 1 HD video capture card
Video input: Component(YPbPr),DVI-I(RGB),HDMI,and SDI(Optional)
Max.Resolution: Up to 1920 *1080i(50/60) and 1920 *1080p(24/25/30)
Support devices: VGA resolution,up to 1280 x 1024 and 1440 x 900
Software Supported:
Self-developed Software-Stream catcher
Adobe Flash Media Live Encoder3.2
Ustream Producer 1.0.2
Window media encoder 9.0
Edius 6.0x--6.5
VLC 2.0
AMCAP
SKYPE
Expression Encoder4.0
Dimension | 114.44*101.03(mm) |
Interface | PCIe*1 |
Video Input | 1*SDI, 1*HDMI, 1*DVI-D, 1*DVI-I, 1*Ypbpr |
Video Format | YUY2 |
Video Resolution | NTSC/PAL |
1920*1080p@30/25/24fps 1920*1080i@60/50fps 1280*720p@60/50/30/25fps 720*480p@60fps 7208576i@50fps
(HDMI, DVI-D/I, Ypbpr only) 1440*900p@60fps 1280*1024p@60fps 1280*960p@60fps 1024*768p@60fps 800*660p@60fps 640*480p@60fps 720*480p@60fps 720*586p@60fps | |
Video Record Format | MPEG4/H.264(Depend on Software Application) |
Video Record Resolution | NTSC/PAL |
1920*1080p@30/25/24fps 1920*1080i@60/50fps 1280*720p@60/50/30/25fps 720*480p@60fps 7208576i@50fps
(HDMI, DVI-D/I, Ypbpr only) 1440*900p@60fps 1280*1024p@60fps 1280*960p@60fps 1024*768p@60fps 800*660p@60fps 640*480p@60fps 720*480p@60fps 720*586p@60fps | |
Audio Input | 1*SDI, 1*HDMI, 2*RCA |
Audio Format | Stereo / 16-bit/3200-4800Hz |
I/O | 16 |
WatchDog | √ |
Multi Card Composite | ∞ |
SDK | VC++ / .NET / BCB / VB/ V4L2 |
System Requirement | |
Operation System | WINDOWS XP /VISTA/ 7 Linux 2.6. 14 or higher (32-bit and 64-bit) |
Resolution Support:
Input Terminal |
| Mode | NTSC | PAL |
SDI | HD | 1080P | 1920*1080p*30fps | 1920*1080p*25fps |
1920*1080p*24fps | 1920*1080p*24fps | |||
1080I | 1920*1080i*30fps | 1920*1080i*25fps | ||
720P | 1920*720p*60fps | 1920*720p*50fps | ||
Ypbpr VGA DVI HDMI | HD | 1080P | 1920*1080p*30fps | 1920*1080p*25fps |
1920*1080p*24fps | 1920*1080p*24fps | |||
1080I | 1920*1080i*30fps | 1920*1080i*25fps | ||
720P | 1920*720p*60fps | 1920*720p*50fps | ||
SD | 480P | 720*480p*60fps | 720*576p*50fps | |
480I | 720*480i*30fps | 720*576i*25fps | ||
VGA DVI HDMI | PC | 800*600p*60fps | 800*600p*60fps | |
1024*768p*60fps | 1024*768p*60fps | |||
1280*960p*60fps | 1280*960p*60fps | |||
1280*1024p*60fps | 1280*1024p*60fps | |||
1440*900p*60fps | 1440*900p*60fps | |||
Accessories:
Warrantee Card, User Manual, Disk, Video Grabber, DVI to D-SUB(VGA), Ypbpr & Audio connecter.
Note: DVI input DVI-I
