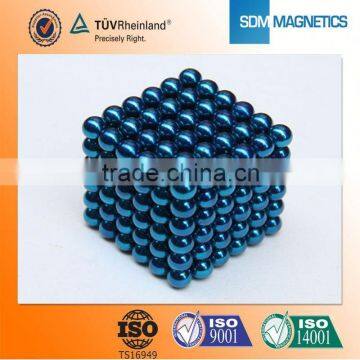

China Suppliers N35-N38AH Rare Earth Magnetic Balls

FOB Price

US$ 0.1 - 100 / Piece

1 Piece(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	SDM
Model Number	magnet ball	Type	Permanent
Composite	Neodymium Magnet	Shape	Other, ball, bar,block, arc,ring,disc magnet
Application	Industrial Magnet

Product Description

Customized Magnets Show

The grade of magnet we can offer:

Professional Customized ISO/TS 16949 Certificated Strong Permanent N35-N52 (M, H, SH, EH, UH,AH) Neodymium Magnet

Grade	Residual Induction (Br)		Coercive Force (Hcb)		Intrinsic Coercive Force (Hcj)		Max Energy Product (BH)max		Max Working Temp.
Grade	T	kGs	kA/m	kOe	kA/m	kOe	Kj/m³	MGOe	(°C)
N35	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 955	≥ 12	263-287	33-36	80
N38	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 955	≥ 12	287-310	36-39	80
N40	1.25-1.28	12.5-12.8	≥ 907	≥ 11.4	≥ 955	≥ 12	302-326	38-41	80
N42	1.28-1.32	12.8-13.2	≥ 915	≥ 11.5	≥ 955	≥ 12	318-342	40-43	80
N45	1.32-1.38	13.2-13.8	≥ 923	≥ 11.6	≥ 955	≥ 12	342-366	43-46	80
N48	1.38-1.42	13.8-14.2	≥ 923	≥ 11.6	≥ 955	≥ 12	366-390	46-49	80
N50	1.40-1.45	14.0-14.5	≥ 796	≥ 10	≥ 876	≥ 11	374-406	47-51	60
N52	1.43-1.48	14.3-14.8	≥ 796	≥ 10	≥ 876	≥ 11	390-422	49-53	60
N35M	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 1114	≥ 14	263-287	33-36	100
N38M	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 1114	≥ 14	287-310	36-39	100
N40M	1.25-1.28	12.5-12.8	≥ 923	≥ 11.6	≥ 1114	≥ 14	302-326	38-41	100
N42M	1.28-1.32	12.8-13.2	≥ 955	≥ 12	≥ 1114	≥ 14	318-342	40-43	100
N45M	1.32-1.38	13.2-13.8	≥ 955	≥ 12.5	≥ 1114	≥ 14	342-366	43-46	100
N48M	1.37-1.43	13.7-14.3	≥ 1027	≥ 12.9	≥ 1114	≥ 14	366-390	46-49	100
N50M	1.40-1.45	14.0-14.5	≥ 1033	≥ 13	≥ 1114	≥ 14	382-406	48-51	100
N35H	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 1353	≥ 17	263-287	33-36	120
N38H	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 1353	≥ 17	287-310	36-39	120
N40H	1.25-1.28	12.5-12.8	≥ 923	≥ 11.6	≥ 1353	≥ 17	302-326	38-41	120
N42H	1.28-1.32	12.8-13.2	≥ 955	≥ 12	≥ 1353	≥ 17	318-342	40-43	120
N45H	1.32-1.36	13.2-13.6	≥ 963	≥ 12.1	≥ 1353	≥ 17	326-358	43-46	120
N48H	1.37-1.43	13.7-14.3	≥ 995	12.5	≥ 1353	≥ 17	366-390	46-49	120
N35SH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 1592	≥ 20	263-287	33-36	150
N38SH	1.22-1.25	12.2-12.5	≥ 907	≥ 11.4	≥ 1592	≥ 20	287-310	36-39	150
N40SH	1.25-1.28	12.5-12.8	≥ 939	≥ 11.8	≥ 1592	≥ 20	302-326	38-41	150
N42SH	1.28-1.32	12.8-13.2	≥ 987	≥ 12.4	≥ 1592	≥ 20	318-342	40-43	150
N45SH	1.32-1.38	13.2-13.8	≥ 1003	≥ 12.6	≥ 1592	≥ 20	342-366	43-46	150
N28UH	1.04-108	10.4-10.8	≥ 764	≥ 9.6	≥ 1990	≥ 25	207-231	26-29	180
N30UH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 1990	≥ 25	223-247	28-31	180
N33UH	1.13-1.17	11.3-11.7	≥ 852	≥ 10.7	≥ 1990	≥ 25	247-271	31-34	180
N35UH	1.17-1.22	11.7-12.2	≥ 860	≥ 10.8	≥ 1990	≥ 25	263-287	33-36	180
N38UH	1.22-1.25	12.2-12.5	≥ 876	≥ 11	≥ 1990	≥ 25	287-310	36-39	180
N40UH	1.25-1.28	12.5-12.8	≥ 899	≥ 11.3	≥ 1990	≥ 25	302-326	38-41	180
N42UH	1.28-1.32	12.8-13.2	≥ 899	≥ 11.3	≥ 1990	≥ 25	318-342	40-43	180
N28EH	1.04-1.08	10.4-10.8	≥ 780	≥ 9.8	≥ 2388	≥ 30	207-231	26-29	200
N30EH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 2388	≥ 30	223-247	28-31	200
N33EH	1.13-1.17	11.3-11.7	≥ 836	≥ 10.5	≥ 2388	≥ 30	247-271	31-34	200
N35EH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 2388	≥ 30	263-287	33-36	200
N38EH	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 2388	≥ 30	287-310	36-39	200
N40EH	1.25-1.28	12.5-12.8	≥ 899	≥ 11.3	≥ 2388	≥ 30	302-326	38-41	200
N28AH	1.04-1.08	10.4-10.8	≥ 787	≥ 9.9	≥ 2624	≥ 33	207-231	26-29	230
N30AH	1.08-1.13	10.8-11.3	≥ 819	10.3	≥ 2624	≥ 33	223-247	28-31	230
N33AH	1.13-1.17	11.3-11.7	≥ 843	≥ 10.6	≥ 2624	≥ 33	247-271	31-34	230
N35AH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 2624	≥ 33	263-287	33-36	230
N38AH	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 2624	≥ 33	287-310	36-39	230

Application

Sintered Neodymium-Iron-Boron (NdFeB) magnets are also referred to as “neo” magnets. They are particularly suitable for high volume production in a wide variety of shape and size. Precise dimensional control is achieved in machining processes.

Advantages

1)High performance and High Working Temperature

2)High Consistancy

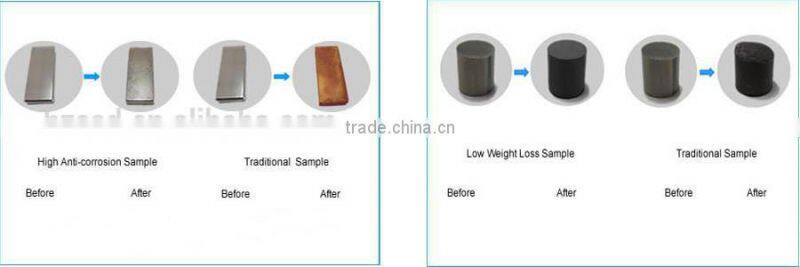

3)High Anti-Corrosion and Low Weight Loss

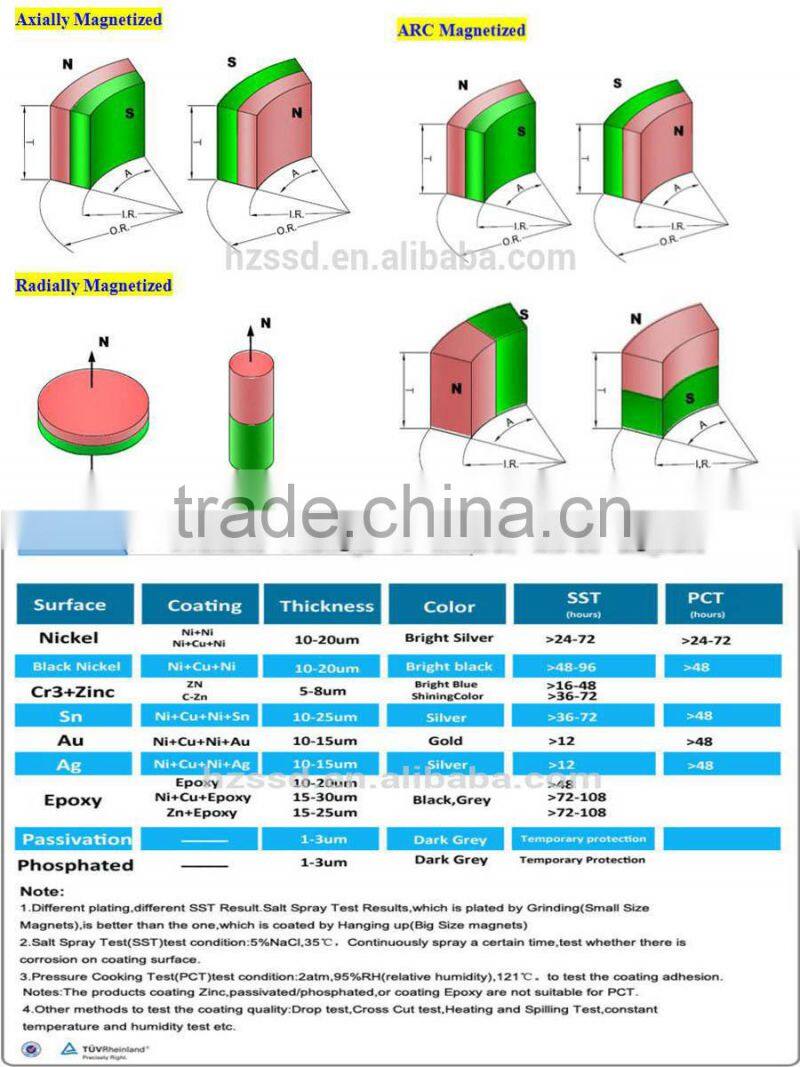

Magnetization and Coating Examples:

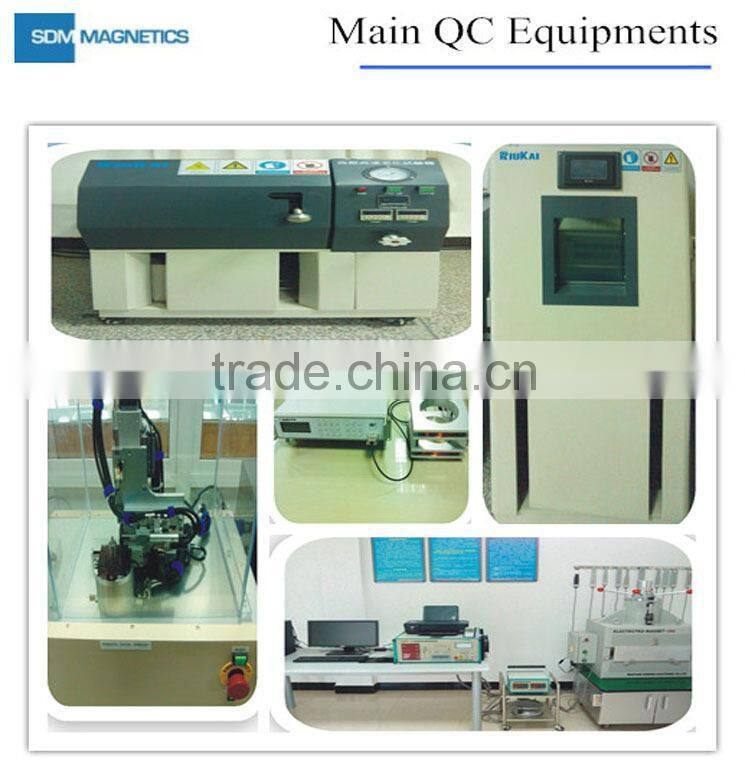

Main QC Equipments

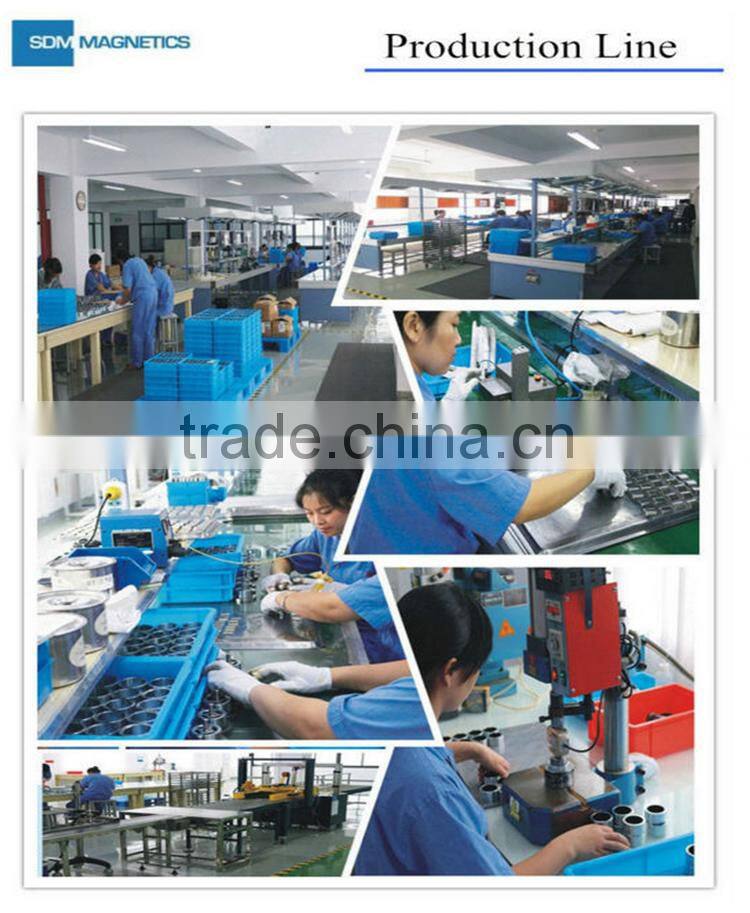

Production Flow for Magnets
