SC Copper Cable Lugs Terminal

SC Copper Cable Lugs Terminal thumbnail-1
SC Copper Cable Lugs Terminal thumbnail-2
SC Copper Cable Lugs Terminal thumbnail-3
SC Copper Cable Lugs Terminal thumbnail-4
SC Copper Cable Lugs Terminal thumbnail-5
SC Copper Cable Lugs Terminal thumbnail-6
SC Copper Cable Lugs Terminal photo-1
SC Copper Cable Lugs Terminal photo-2
SC Copper Cable Lugs Terminal photo-3

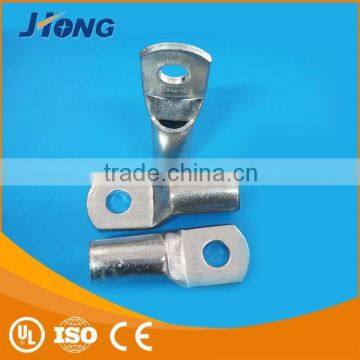

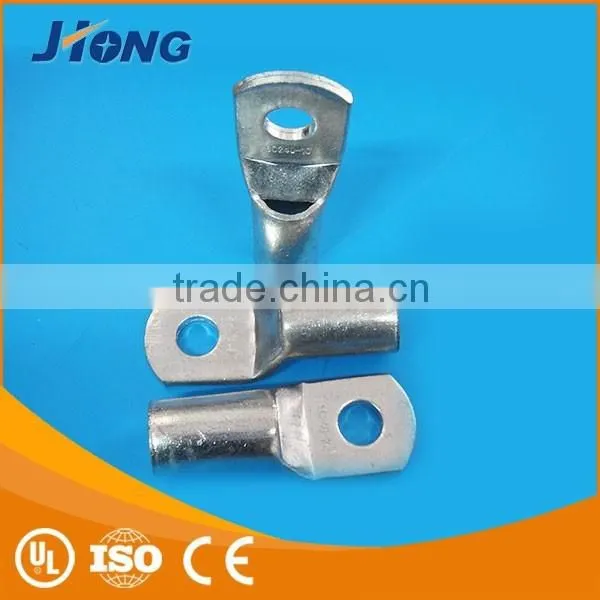

SC Copper Cable Lugs Terminal photo-4

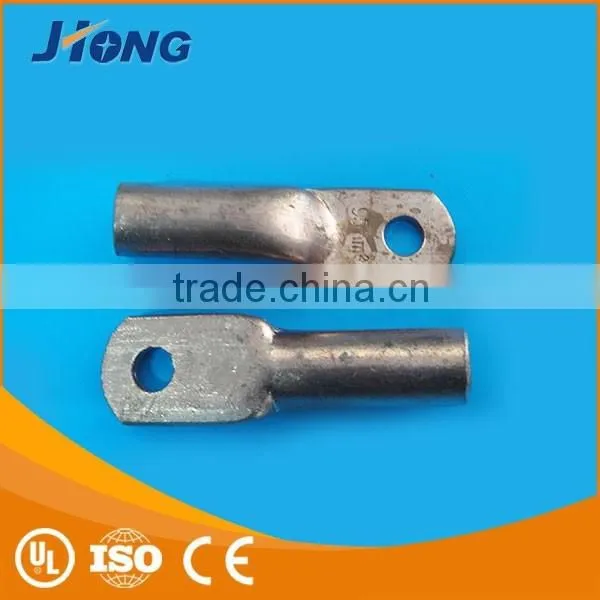

SC Copper Cable Lugs Terminal photo-5

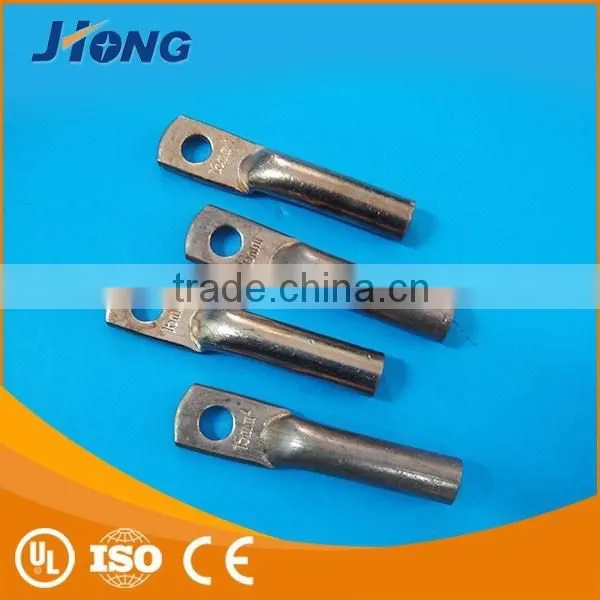

SC Copper Cable Lugs Terminal photo-6

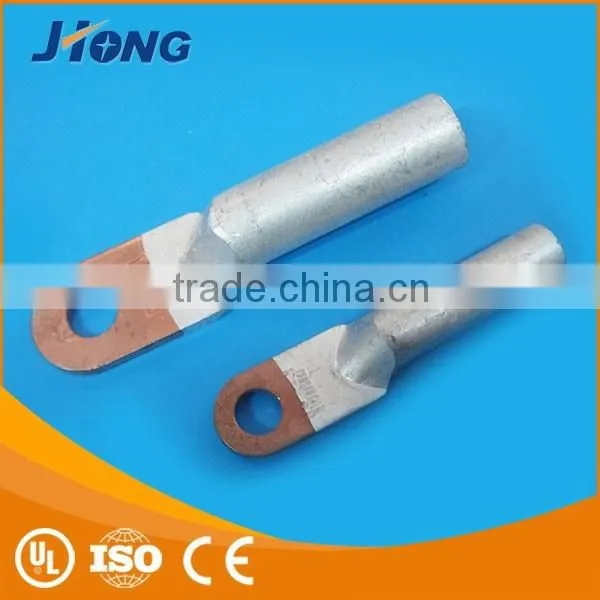

US$ 0.055 - 1 MOQ: 2000 Pieces

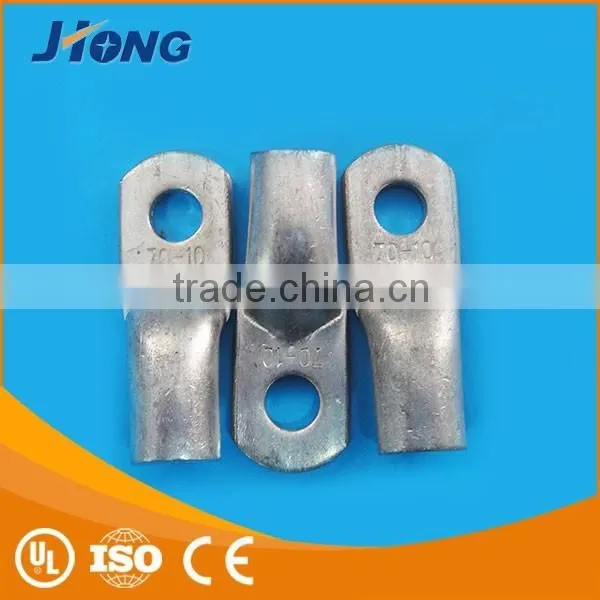

Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JIONG
Model Number:
JG
Contact Supplier Request Quote Chat Now
Yueqing Jiuhong Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JIONG
Model Number JG
Type Lug
Product Description



1) Application: Connection of wires in distribution equipment or power supply cable with electronic apparatus.

2) Material: T2 copper tube by dies cast, good conductivity

3) Tinned Surface: corrosion resistance

4) Certificate: ISO9001-2008



SC Copper Cable Lugs Terminal





TYPE
Φ
D
d
L
JG-10
6.2
8
5
38
JG-16
8.4
9
6
41
JG-25
8.4
10
7
46
JG-35
8.5
11
8
52
JG-50
8.5
13
10
54
JG-70
10.5
16
12
61
JG-95
10.5
18
14
66
JG-120
12.5
20
15
73
JG-150
12.5
23
17
77
JG-185
14.5
25
19
86
JG-240
16.5
27
21
83
JG-300
16.5
31
24
103
JG-400
18.5
34
26
113
JG-500
20.5
38
30
124
JG-630
22.5
45
35
140
JG-800
22.5
50
40
170



 SC Copper Cable Lugs Terminal

TYPE
Φ
D
d
L
DT(G)-10
6.2
8
5
52
DT(G)-16
6.2
9
6
57
DT(G)-25
6.2
10
7
62
DT(G)-35
8.5
11
8
66
DT(G)-50
8.5
13
10
72
DT(G)-70
10.5
16
12
80
DT(G)-95
10.5
18
14
85
DT(G)-120
12.5
20
15
96
DT(G)-150
12.5
23
17
102
DT(G)-185
14.5
25
19
114
DT(G)-240
16.5
27
21
120
DT(G)-300
16.5
31
24
135
DT(G)-400
18.5
34
26
150
DT(G)-500
20.5
38
30
170
DT(G)-630
22.5
45
35
210
DT(G)-800
22.5
50
40
270






Application

These products are suitable for the connection of copper conductors(section 1.5-1000mm2)in power cable with electronic equiqment.They are made of with higher 99.9 percent pute copper tube T2 and coated with tin.Working temperature-55ºC-150ºC.

SC Copper Cable Lugs Terminal

Type Φ D d L
SC(JGA)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGA)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGA)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGA)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGA)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGA)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGA)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGA)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGA)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGA)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGA)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGA)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGA)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGA)-185 Φ16.5 23.5 18.8 78
SC(JGA)-240 Φ16.5 26.5 21 92
SC(JGA)-300 Φ16.5,Φ20.5 30 24 102
SC(JGA)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGA)-500 Φ16.5,Φ20.5 38 30 123
SC(JGA)-630 Φ20.5 45 35 135
SC(JGA)-800 Φ22.5 50 39 170
SC(JGA)-1000 Φ22.5 56 44 200



Type Φ D d L
SC(JGK)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGK)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGK)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGK)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGK)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGK)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGK)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGK)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGK)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGK)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGK)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGK)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGK)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGK)-185 Φ16.5 23.5 18.8 78
SC(JGK)-240 Φ16.5 26.5 21 92
SC(JGK)-300 Φ16.5,Φ20.5 30 24 102
SC(JGK)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGK)-500 Φ16.5,Φ20.5 38 30 123
SC(JGK)-630 Φ20.5 45 35 135
SC(JGK)-800 Φ22.5 50 39 170
SC(JGK)-1000 Φ22.5 56 44 200

SC Copper Cable Lugs Terminal


Type Φ D d L
SC(JGY)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGY)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGY)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGY)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGY)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGY)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGY)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGY)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGY)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGY)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGY)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGY)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGY)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGY)-185 Φ16.5 23.5 18.8 78
SC(JGY)-240 Φ16.5 26.5 21 92
SC(JGY)-300 Φ16.5,Φ20.5 30 24 102
SC(JGY)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGY)-500 Φ16.5,Φ20.5 38 30 123
SC(JGY)-630 Φ20.5 45 35 135
SC(JGY)-800 Φ22.5 50 39 170
SC(JGY)-1000 Φ22.5 56 44 200



Type Φ D d L
SC(JGB)-1.5 Φ4.2,Φ5.2 3.5 1.8 18
SC(JGB)-2.5 Φ4.2,Φ5.2,Φ6.2 4 2.5 19
SC(JGB)-4 Φ5.2,Φ6.2 4.8 3.1 21
SC(JGB)-6 Φ5.2,Φ6.2,Φ8.2 5.5 3.8 24
SC(JGB)-10 Φ6.2,Φ8.2 6.8 4.5 25.5
SC(JGB)-16 Φ6.2,Φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGB)-25 Φ6.2,Φ8.2,Φ10.5 9 7 34
SC(JGB)-35 Φ6.2,Φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGB)-50 Φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGB)-70 Φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGB)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGB)-120 Φ12.5,Φ16.5 19.5 15.5 63
SC(JGB)-150 Φ12.5,Φ16.5 21 16.5 71
SC(JGB)-185 Φ16.5 23.5 18.8 78
SC(JGB)-240 Φ16.5 26.5 21 92
SC(JGB)-300 Φ16.5,Φ20.5 30 24 102
SC(JGB)-400 Φ16.5,Φ20.5 34 26.5 113
SC(JGB)-500 Φ16.5,Φ20.5 38 30 123
SC(JGB)-630 Φ20.5 45 35 135
SC(JGB)-800 Φ22.5 50 39 170
SC(JGB)-100 Φ22.5 56 44 200





FAQ

SC Copper Cable Lugs Terminal

Why Chose Us?

1.We are factory,the price are competitive.

2.Good quality,the goods are passed UL,ROHS,CE,SGS,CCS ect. They have been exported to many countries and enjoy good popularity.

3.Quickly delivery,we have automatic production line,so the production is much quicker. Keep smooth delivery on time.

4.Perfect package according your demand

5.We have design/technology team and can make new products according your demand.



Trade team of products

1.Payment:T/T,L/C,D/A,D/P ,Western Union,Paypal etc.

2.Supply Ability:20ft Container/Month

3.OEM: accept

4.Delivery: •By Courier: 1-2 Working days by special offer

                  •By Air: 4-7 Working days at appointed airport

                  •By Sea:20-25 Working days at appointed port



Package of products

•Common Packing:100Pcs+Polybag+Label+Export Carton

•Customized Packing:Header card packing,Blister with card packing,Double Blister packing,Canister packing,other packing can be supplied according customers requirement.



Services

Excellent service and first-class after-sale service

  •Provide professional sale person to communicate with you before the order

  •Provide optimum system solution based on each client’s export

  •Provide strict check for each part,each process before export.

  •Provide post-sale service,including installation,technical guide and training.



If you are interested in our products, please contact with us. Thank you.
