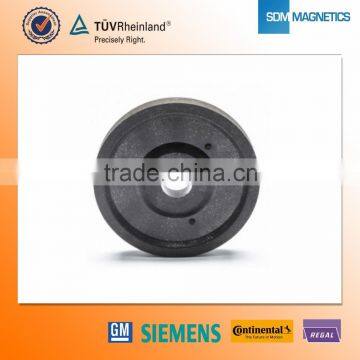

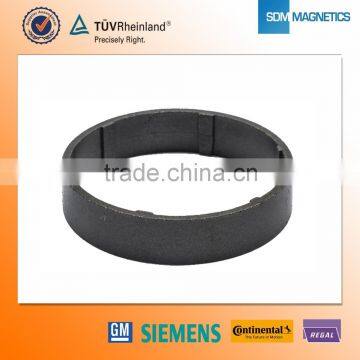

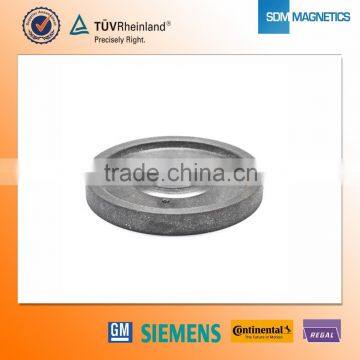

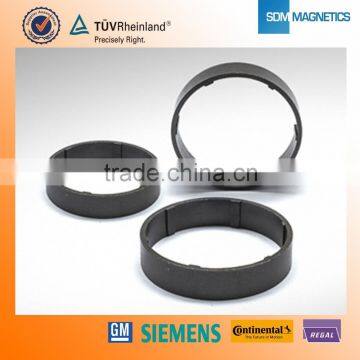

Anisotropic SmCo Injection Magnet

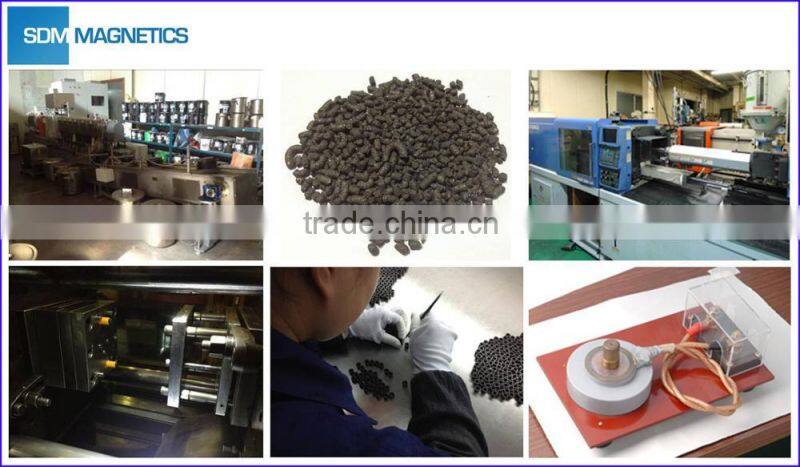

Professional manufactures of anisotropic SmCo injection magnet

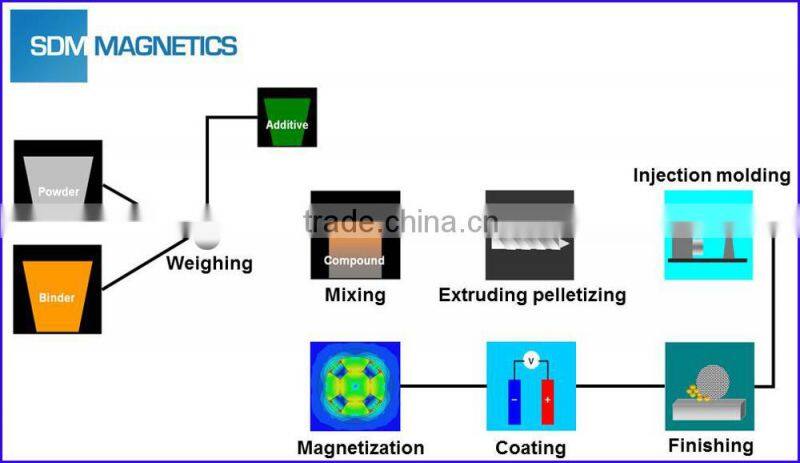

The process chart of anisotropic SmCo injection magnet
Orientation technology of anisotropic SmCo injection magnet
Magnetic properties of anisotropic SmCo injection magnet
|
BZ-7(SmCo/PA) |
BZ-9(SmCo/PA) |
BZ-6(SmCo/PPS) |
|
|
Residual Induction Br |
mT kGs |
570-600 5.7-6.0 |
620-650 6.2-6.5 |
500-550 5.0-5.5 |
|
Coercivity Hcb |
kA/m kOe |
330-370 4.1-4.6 |
380-415 4.8-5.2 |
325-345 4.1-4.3 |
|
Intrinsic Coercivity Hcj |
kA/m kOe |
675-875 8.5-11.0 |
675-875 8.5-11.0 |
675-875
8.5-11.0 |
|
Max. Energy Product (BH)max |
kJ/m3 MGOe |
52-60 6.5-7.5 |
68-76 8.5-9.5 |
44-52 5.5-6.5 |
Density ρ |
g/cm3 |
5.0-6.2 |
5.0-6.2 | 5.0-6.2 |
|
Recoil Permeability μr |
%/℃ |
1.1 |
1.1 | 1.1 |
Tem. Coeff. of Br |
℃ |
-0.04 |
-0.04 | -0.04 |
|
Max. Operating Tem. Tw |
℃ |
120 |
120 | 180 |

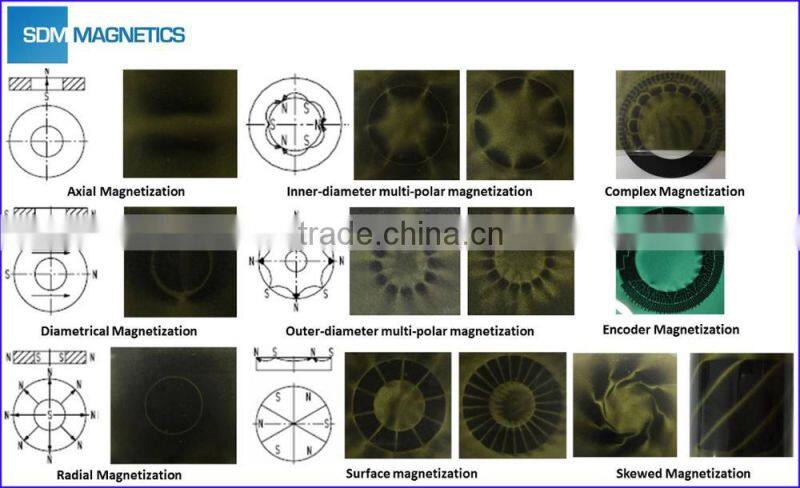

Magnetization of anisotropic SmCo injection magnet

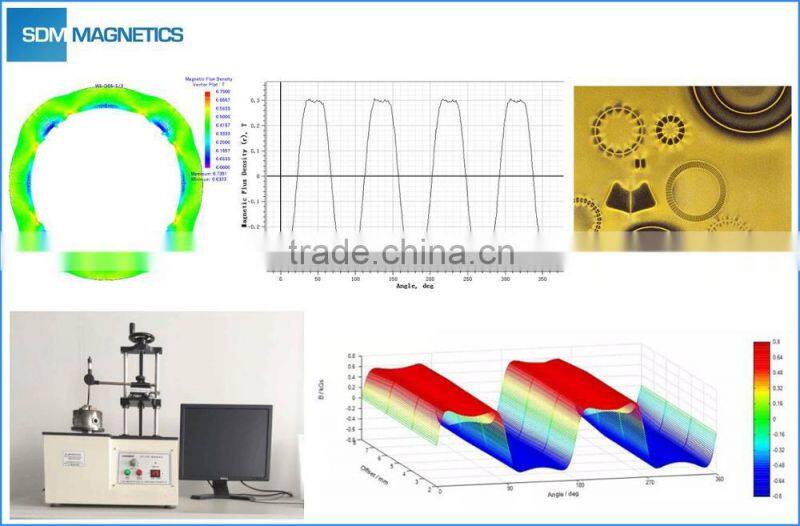

Magnetic circuit simulation & measurement of anisotropic SmCo injection magnet
Company Information
Seniority and integrity.
Hangzhou SDM Magnetics Co.,Ltd established in 2004year,over 10 years experience in cable filed.“Quality”and “integrity”is the life of enterprise. After a long-term development, establish a good reputation in the market and among the customers.
Technology
supervise, technology and advanced services. We have the advanced manufacturing equipment and quality test equipment for each batch of product testing. Also, we can design and produce every single specification for every customer’s different requirement.
Factory
Our factory located in the Tonglu,Xiaoshan. Total about 2000 employees including 130 production workers,30QC and 20 engineers. The factory area is 17,000 m2.We have a complete industry chain. And we have our own raw material supply which decreased the procurement cost.
Partners
We cooperate with the most famous global cable brand---Siemens Ltd Australia,GM, BMW, BENTLEY, REGAL BELOIT.
Certificate
Our core competences:certificates of TS16949,ISO9001,ROHS
Packaging & Shipping
a: the weight is under 40Kg,we will choose FedEx,DHL or UPS with shielding box for you;
b: the weight is over 100Kg,we will choose shipping for you;
c: the weight is between 40Kg-100Kg, per you request;
1:How long will you give me the reply?
we will contact you in 12 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO,TS and ROSH,we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality magnet we can with reasonable price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
