made in china motor shuttering magnetic materials

FOB Price

USD $0.1 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shanghai/Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	SDM	Model Number:	SDMN

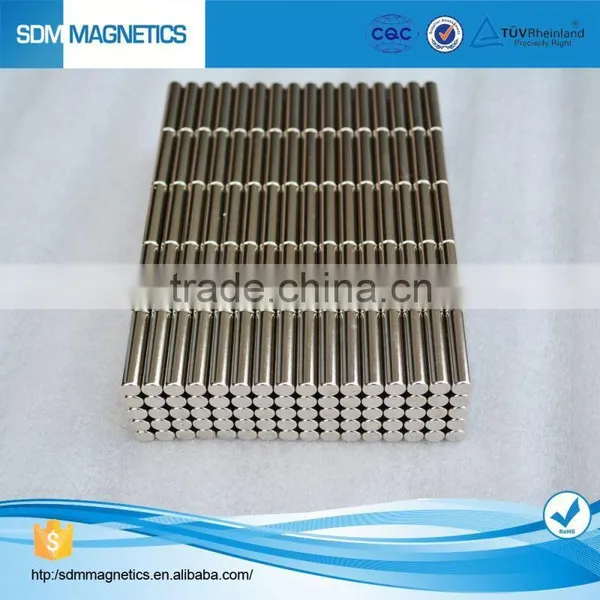

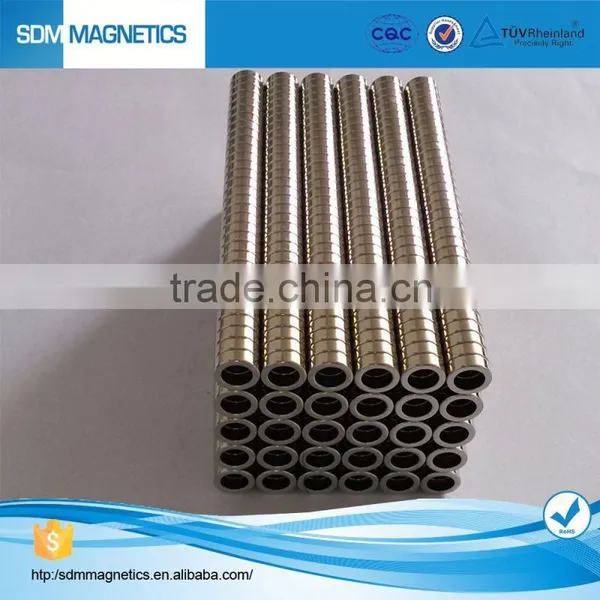

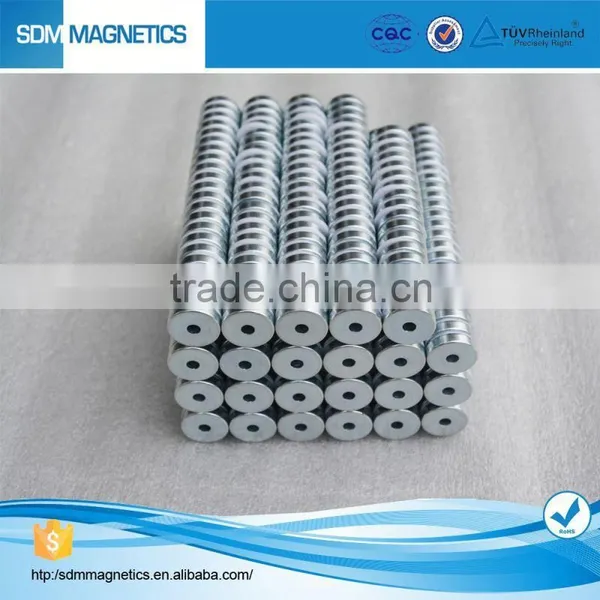

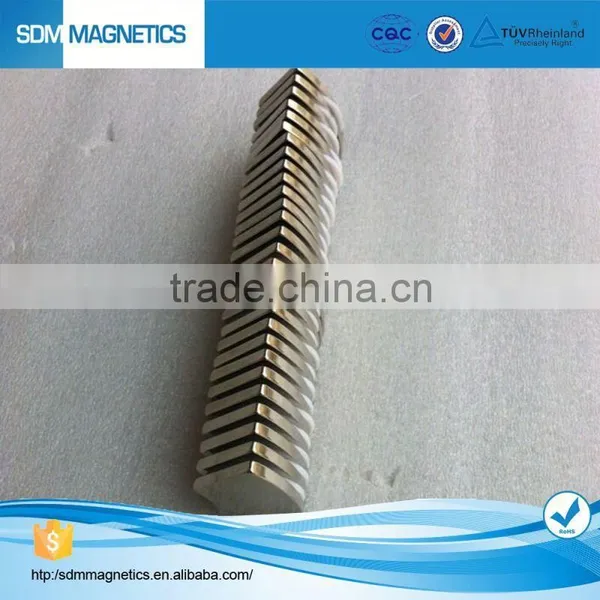

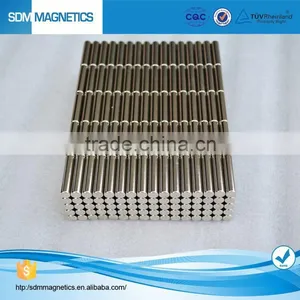

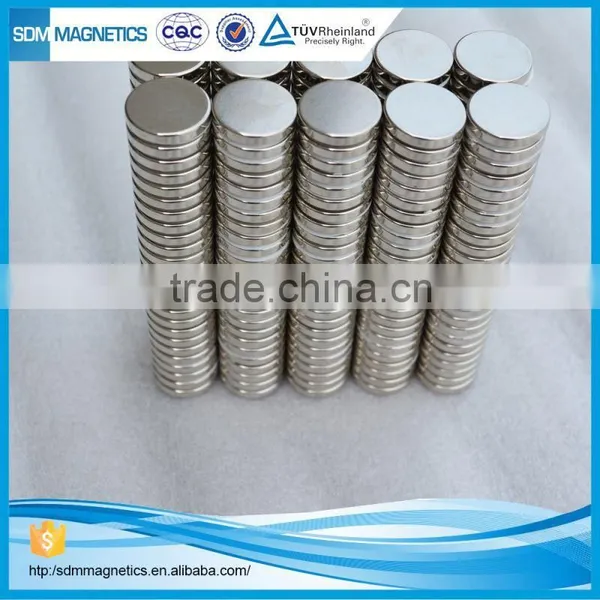

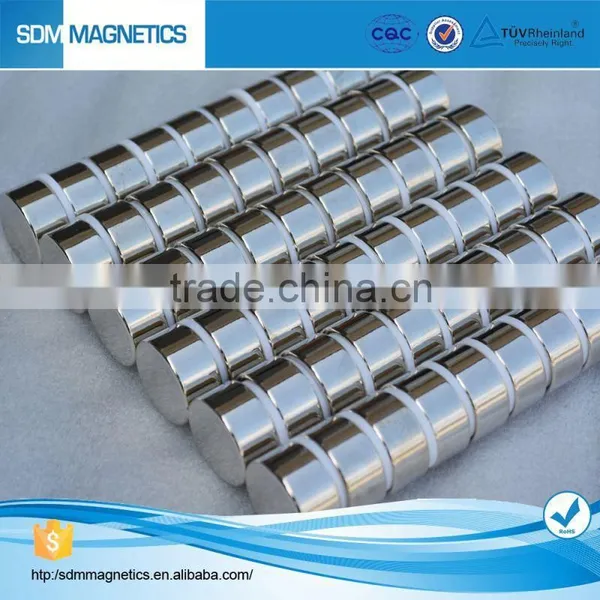

Type:	Permanent	Composite:	Neodymium Magnet	Shape:	Other, ball, bar,block, arc,ring,disc magnet
Application:	Industrial Magnet

Product Description

Grade	Residual Induction (Br)		Coercive Force (Hcb)		Intrinsic coercive Force (Hcj)		Max Energy Product (BH)max		Max Working Temp.
Grade	T	kGs	kA/m	kOe	kA/m	kOe	Kj/m³	MGOe	(°C)
N35	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 955	≥ 12	263-287	33-36	80
N38	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 955	≥ 12	287-310	36-39	80
N40	1.25-1.28	12.5-12.8	≥ 907	≥ 11.4	≥ 955	≥ 12	302-326	38-41	80
N42	1.28-1.32	12.8-13.2	≥ 915	≥ 11.5	≥ 955	≥ 12	318-342	40-43	80
N45	1.32-1.38	13.2-13.8	≥ 923	≥ 11.6	≥ 955	≥ 12	342-366	43-46	80
N48	1.38-1.42	13.8-14.2	≥ 923	≥ 11.6	≥ 955	≥ 12	366-390	46-49	80
N50	1.40-1.45	14.0-14.5	≥ 796	≥ 10	≥ 876	≥ 11	374-406	47-51	60
N52	1.43-1.48	14.3-14.8	≥ 796	≥ 10	≥ 876	≥ 11	390-422	49-53	60
N35M	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 1114	≥ 14	263-287	33-36	100
N38M	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 1114	≥ 14	287-310	36-39	100
N40M	1.25-1.28	12.5-12.8	≥ 923	≥ 11.6	≥ 1114	≥ 14	302-326	38-41	100
N42M	1.28-1.32	12.8-13.2	≥ 955	≥ 12	≥ 1114	≥ 14	318-342	40-43	100
N45M	1.32-1.38	13.2-13.8	≥ 955	≥ 12.5	≥ 1114	≥ 14	342-366	43-46	100
N48M	1.37-1.43	13.7-14.3	≥ 1027	≥ 12.9	≥ 1114	≥ 14	366-390	46-49	100
N50M	1.40-1.45	14.0-14.5	≥ 1033	≥ 13	≥ 1114	≥ 14	382-406	48-51	100
N35H	1.17-1.22	11.7-12.2	≥ 868	≥ 10.9	≥ 1353	≥ 17	263-287	33-36	120
N38H	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 1353	≥ 17	287-310	36-39	120
N40H	1.25-1.28	12.5-12.8	≥ 923	≥ 11.6	≥ 1353	≥ 17	302-326	38-41	120
N42H	1.28-1.32	12.8-13.2	≥ 955	≥ 12	≥ 1353	≥ 17	318-342	40-43	120
N45H	1.32-1.36	13.2-13.6	≥ 963	≥ 12.1	≥ 1353	≥ 17	326-358	43-46	120
N48H	1.37-1.43	13.7-14.3	≥ 995	12.5	≥ 1353	≥ 17	366-390	46-49	120
N35SH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 1592	≥ 20	263-287	33-36	150
N38SH	1.22-1.25	12.2-12.5	≥ 907	≥ 11.4	≥ 1592	≥ 20	287-310	36-39	150
N40SH	1.25-1.28	12.5-12.8	≥ 939	≥ 11.8	≥ 1592	≥ 20	302-326	38-41	150
N42SH	1.28-1.32	12.8-13.2	≥ 987	≥ 12.4	≥ 1592	≥ 20	318-342	40-43	150
N45SH	1.32-1.38	13.2-13.8	≥ 1003	≥ 12.6	≥ 1592	≥ 20	342-366	43-46	150
N28UH	1.04-108	10.4-10.8	≥ 764	≥ 9.6	≥ 1990	≥ 25	207-231	26-29	180
N30UH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 1990	≥ 25	223-247	28-31	180
N33UH	1.13-1.17	11.3-11.7	≥ 852	≥ 10.7	≥ 1990	≥ 25	247-271	31-34	180
N35UH	1.17-1.22	11.7-12.2	≥ 860	≥ 10.8	≥ 1990	≥ 25	263-287	33-36	180
N38UH	1.22-1.25	12.2-12.5	≥ 876	≥ 11	≥ 1990	≥ 25	287-310	36-39	180
N40UH	1.25-1.28	12.5-12.8	≥ 899	≥ 11.3	≥ 1990	≥ 25	302-326	38-41	180
N42UH	1.28-1.32	12.8-13.2	≥ 899	≥ 11.3	≥ 1990	≥ 25	318-342	40-43	180
N28EH	1.04-1.08	10.4-10.8	≥ 780	≥ 9.8	≥ 2388	≥ 30	207-231	26-29	200
N30EH	1.08-1.13	10.8-11.3	≥ 812	≥ 10.2	≥ 2388	≥ 30	223-247	28-31	200
N33EH	1.13-1.17	11.3-11.7	≥ 836	≥ 10.5	≥ 2388	≥ 30	247-271	31-34	200
N35EH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 2388	≥ 30	263-287	33-36	200
N38EH	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 2388	≥ 30	287-310	36-39	200
N40EH	1.25-1.28	12.5-12.8	≥ 899	≥ 11.3	≥ 2388	≥ 30	302-326	38-41	200
N28AH	1.04-1.08	10.4-10.8	≥ 787	≥ 9.9	≥ 2624	≥ 33	207-231	26-29	230
N30AH	1.08-1.13	10.8-11.3	≥ 819	10.3	≥ 2624	≥ 33	223-247	28-31	230
N33AH	1.13-1.17	11.3-11.7	≥ 843	≥ 10.6	≥ 2624	≥ 33	247-271	31-34	230
N35AH	1.17-1.22	11.7-12.2	≥ 876	≥ 11	≥ 2624	≥ 33	263-287	33-36	230
N38AH	1.22-1.25	12.2-12.5	≥ 899	≥ 11.3	≥ 2624	≥ 33	287-310	36-39	230

Advantages

Custom neodymium magnet

1)High performance and High Working Temperature

2)High Consistancy

3)High Anti-Corrosion and Low Weight Loss

Contact Us

Hangzhou SDM Magnetics Co., Ltd.: Contact nameDavid Ye; Phone86-0571-82867019; AddressRoom 1702, Bldg. 1, Hangzhou Xiaoshan International Business Center, No. 458, Jincheng Road, Xiaoshan District Hangzhou,Zhejiang
