Remote Shooting PTZ Video Conference Camera with Sony Ep48 movement

FOB Price

USD $300 - $450 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Remote Shooting PTZ Video Conference Camera with Sony Ep48 movement

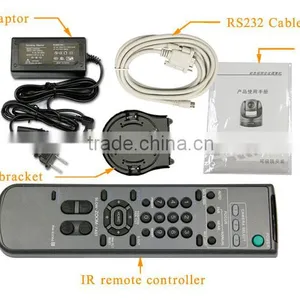

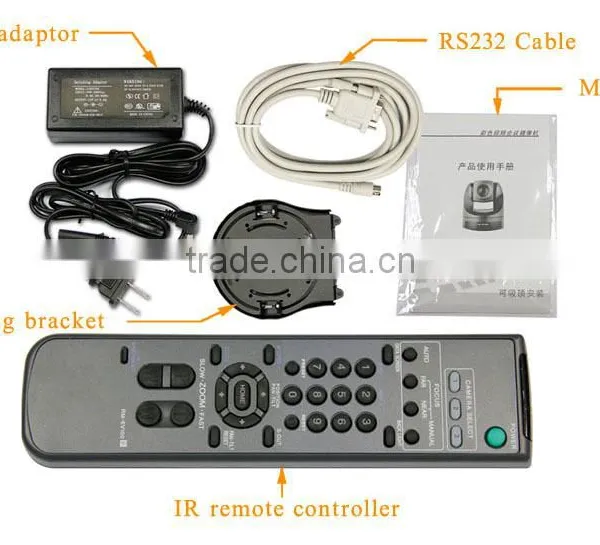

Detailed Images

Product Description

Item No.	KT-D848
Image Sensor	SONY 1/4 Exwave HAD CCD
Effective Pixel	752 (H) * 582 (V)
Signal System	NTSC/PAL
Horizontal Resolution	550 TVL
Synchronization	Internal & External
Lens	18* Optical, F=4.1mm(tele)~73.8mm(wide), F1.4~F3.0
Angle of View (H)	48°(wide-angle)~2.8°(far-end)
Min. object distance	290mm(wide-angle)~800mm(tel-end)
Minimum Illumination	0.4lux (F1.4, 50IRE)
Auto exposure	Auto/Manual/AE priority/Exposure compensation/Backlight compensation
Shutter Speed	1/3~1/10000S,22 shelves
Gain	Auto/Manual (-3 ~ +28dB, 16 steps)
White Balance	Auto/Indoor/Outdoor/One push WB/Manual WB
S/N Ratio	more than 50dB
Pan/Tilt	Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s)
Preset Position	9 by remote commander, 256 by keyboard controller
Picture effect	E-Flip, Invert, Mirror
Analog Output	VIDEO and S-VIDEO VBS 1.0VP-P
Camera Control	RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA)
Baud rate	9600bps, 38400bps
Power	10.8V~13.2V
Operating Temperature	0℃~50℃
Storage Temperature	-20℃~+60℃
Consumption	12W
Dimensions	(L)153(W)134(H)153mm
Weight	1200g
Color	black
