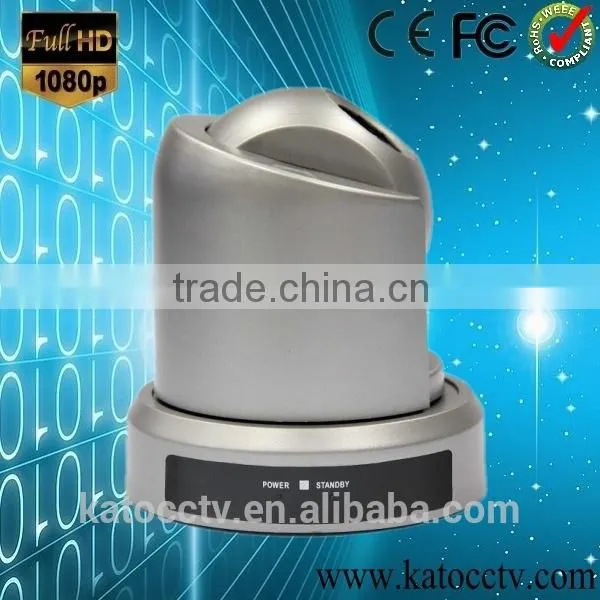

Help Center1080p 30fps Fixed Lens Wide View Angle HD USB PTZ Video Conference Camera
Related Products
-
Video Conference Camera KT-HD30UNegotiableMOQ: 1 Set -
HD Camera Video Conferencing Equipment With 360 Degree PTZ Camera With USB3.0 Output KT-HD30D3UNegotiableMOQ: 1 Set
-
Camera hd With Usb Video Grabber Ptz Camera for Video Conferencing Equipment With Meeting Room Microphone KT-30D3UNegotiableMOQ: 1 Set
-
720 P hd Cctv Conference Cameras 1.5Lux/50dB Usb Conference Video CameraUS$ 300 - 400MOQ: 4 Sets
-
Broadcasting Equipment ! 1080p Hdmi Video Conferencing CameraNegotiableMOQ: 1 Set

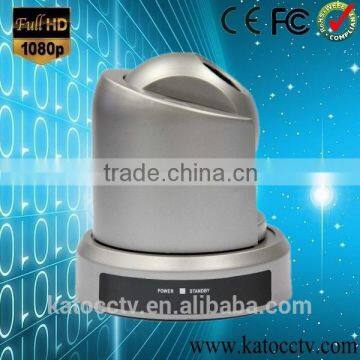

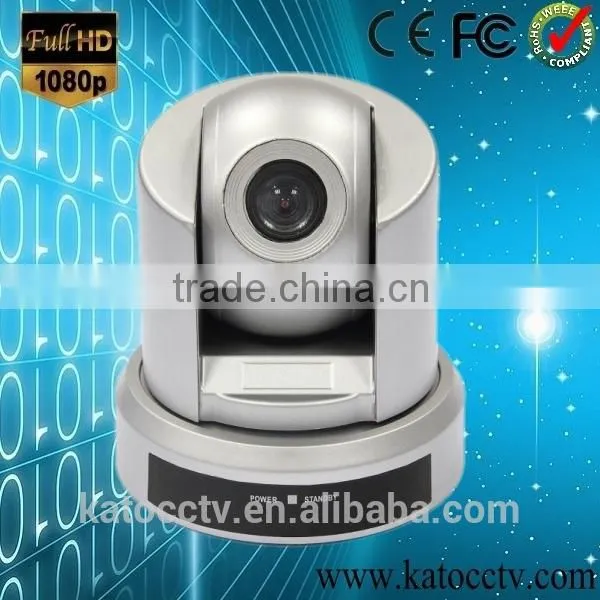

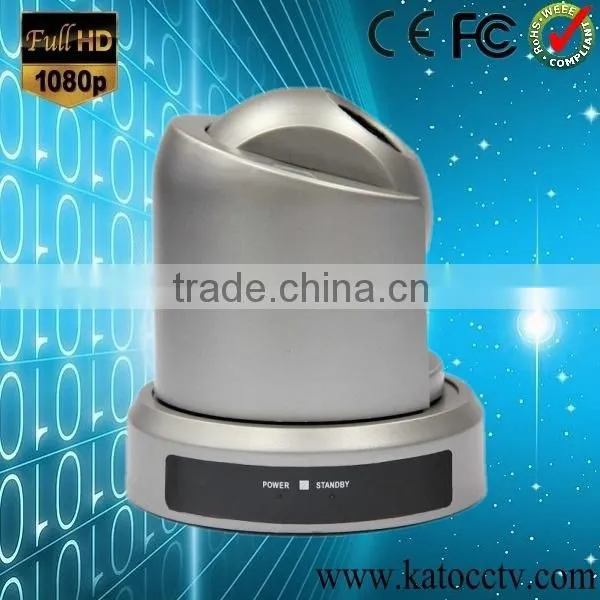

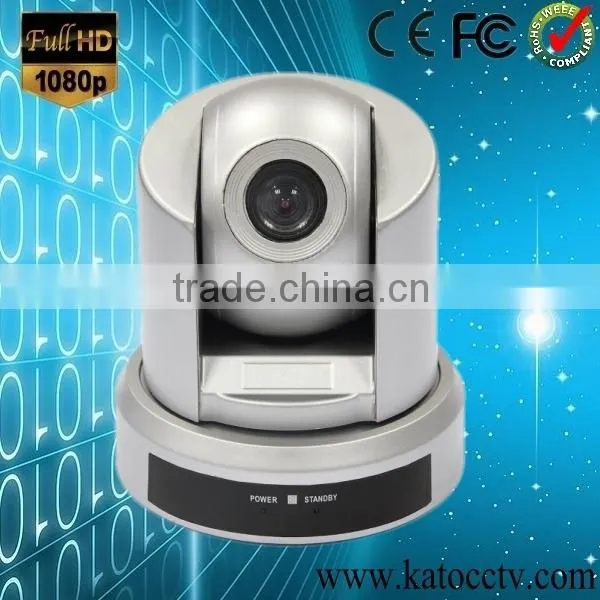

KATO KT-HD1080P
With High S/N Ratio and Supporting Multi Format of USB2.0 Output 355 degrees pan HD video conference camera
(10X lens, 1080P 20/15,720p 30/25, high performance , wide angle;Support 1080p30/25, 720p60/50/30/25)
Specifications
Model | KT-HD1080P |
Image Sensor | 1/3” Progressive CMOS |
Signal Format | 1080P 20/15, 720P 30/25 |
SD Signal Format | NTSC, PAL |
Min lumination | 1.2 lux (F1.6, 50 IRE, High Sensitivity Mode) |
Lens | 10X Zoom,Canon lens |
Focal | F=4.7~94mm, F1.6 ~ F3.5 |
Zoom Speed | Wide~Tel :3.2S Tel~Wide :3S |
Focus | Auto, Manual, Zoom Trigger AF, PT Trigger AF, |
Shortest Focus Distance | 10cm(W), 1m(N) |
Field of View | 55.4°(W), 2.9 °(N) |
IRIS | AutoManual |
AE Control | Auto, Manual, Shutter Priority, Iris Priority, Bright Mode |
Shutter Speed | NTSC: 1/30~1/10000, PAL: 1/25~1/10000 |
BLC | Auto, Indoor, Outdoor, One Push, Manual, AI |
DayNight Swift | Auto/ Day/Night |
WDR | YesNo |
Other Function | Mirroring, Flip |
Spectra Address | 0~255 |
PanTilt Range | 355°(Pan),120°(Tilt) |
Control | RS-232C(VISCA)/RS-422(VISCA)PELCO: P/D |

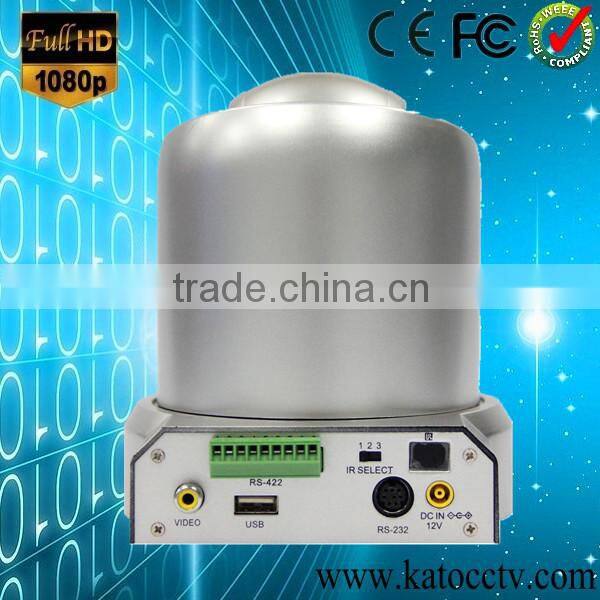

Video Output | HD-SDI;DVI(HDMI);Y,Pb ,Pr; VBS(RCA) |
Operating Temperature | 0-40℃ |
Power | DC12V |
Weight | 2.5KG |
HD video conference camera
output high resolution quality image and at the same time meet the demand of the smooth
Features
with High S/N Ratio and Supporting Multi Format of Full HD Video Output 355 degrees pan120 degrees tilt HD video conference camera
* Real HD image: high quality HD CMOS sensor, 1920x1080 ultra high resolutions; 1/2.8 inches; 2 effective pixels, HD CMOS sensor,support 1080P30; output high resolution quality image and at the same time meet the demand of the smooth picture.
* 3 times optical zoom: Rapid, accurate and stable auto focus lens; up to 3 times optical variable Times, f =3~9mm; F1.2 2.1
* Ultra wide viewing angle: the maximum angle up to 120 degrees
* Low noise and high signal to noise ratio: camera video signal-to-noise to HD video conference terminal than the direct effect Image compression coding efficiency
* Wide range, high speed, low noise PAN/pitch operation: new stepping motor driver, running very smoothly and quietly; can quickly move to the designated location, and a wide range of shooting
* Multi format full HD video output: support variety of high-definition video 1080P30, 1080P25, 720P60, 720P50, 720P30; output HD analog and digital video signal in multiple interfaces DVI-I,HDMI, HD-SDI
* Through the high definition multimedia interface for high quality image transmission: DVI-I digital high-definition multimedia interface, can be compatible with both analog and digital HD video output, can be directly used cable connected to the high-definition display devices
* RS-232C remote control (VISCA): RS-232C (VISCA protocol) interface, for all camera settings and pan / tilt / zoom r remote high-speed communication control operation
* Location presupportion: can be preset to multiple locations, including preset horizontal , pitch and zoom. Presupposition, the setting data can be reserved when the of the cameras powered off
* Support for camera inversion: support the camera inversion structure, and can set the image level through a serial port command, the image flip command has reserve function when power off

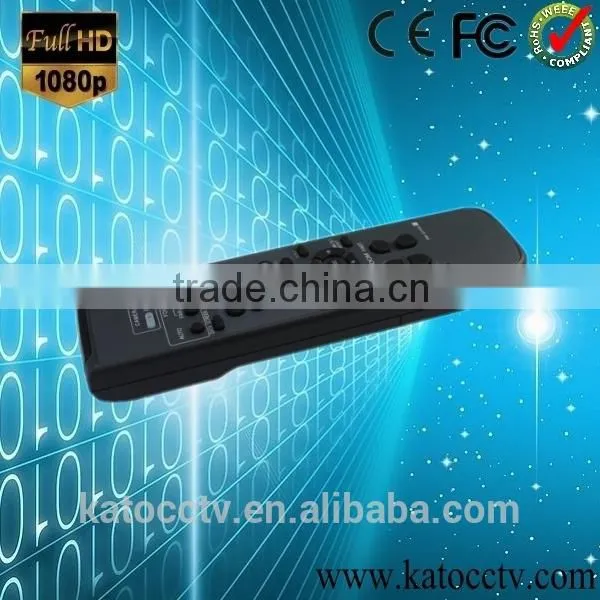

* Equipped with remote control: equipped with remote control which can be easy to operate. in addition to the basic Settings, and to control horizontal, pitching and zoom, it can also to set the cameras manually via the remote control
* OSD menu: OSD menu, the user can adjust the camera exposure parameters through the OSD menu, change video format, view the current status, etc.
1)What is your minimum order quantity?
- one full container at least 5sets each model. Sample order is acceptable.
2)Do you have products in stock?
- Some types of video conference camera have, and haven’t.It depend your order module.
3)What is your delivery terms?
- FOB to your country by DHL,Fedex through air.
Payment terms is T/T in advance, Western Union, Paypal ect.
4)When will you ship my order?
- Ordinary,once we get confirmation for payment,we will ship order within 1-3days.
5)The video confence camera doesn’t have the interface I need, what should I do?
-Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to co nferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.
6)Can I install the conference camera by myself?

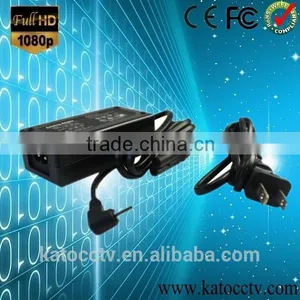

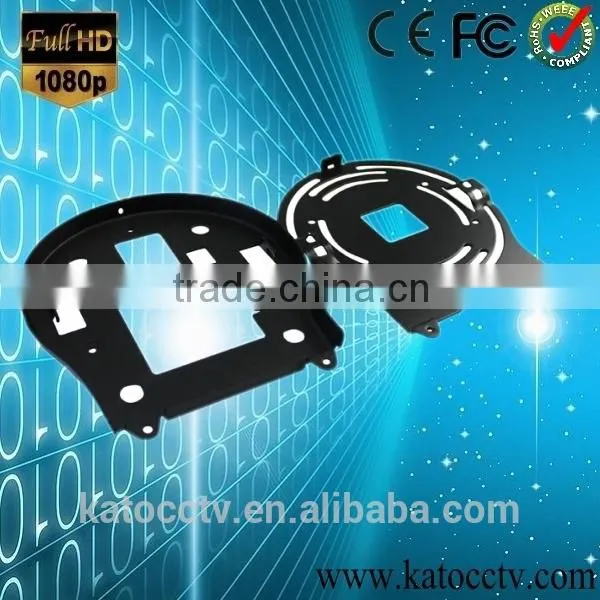

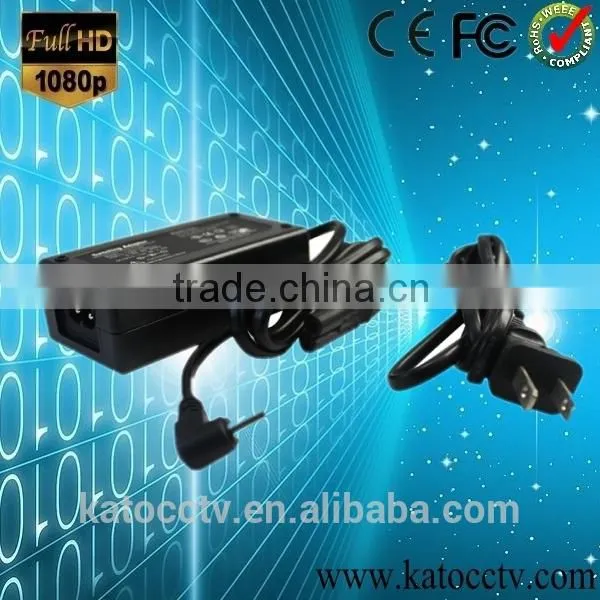

Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS232 cable and YPBPR cable.You can in stall by user manual or you can contact us in need.
7)How about warranty?
-Generally, modules for 1 year, and conference camera for 2 years.
Life-time provide technical consulting.
KATO VISION CO., LIMITED
Skype: sales06 KATO
TradeManager: cn1001158615
Mobile:0086-755-89500973
Website: /
Address:4/F, Block B, Dexinchang Industrial Park, Qingxiang Rd., Longhua district, Shenzhen 518109, China.
