Product Details
| Place of Origin | Guangdong, China | Brand Name | KATO/OEM | |
| Model Number | KT-HD20C | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description

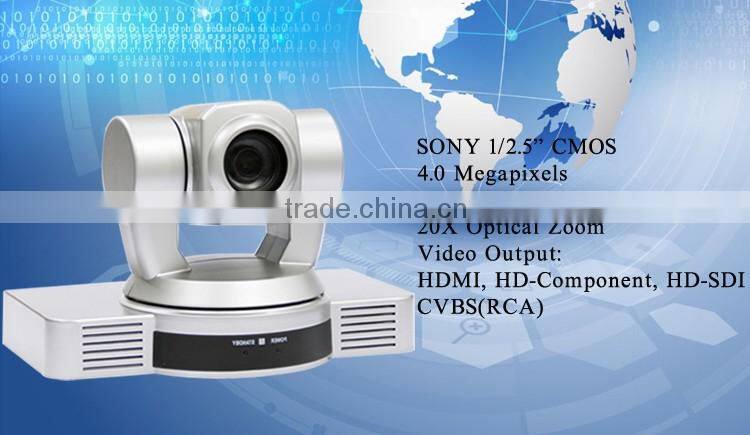

1080p Video Out PTZ HD camera Video Conferencing and Online Meetings
Features:
1. Integrated and delicate design;
2. 1/2.8" CMOS, 2.38Megapixels;
3. Using precision step motor driver, Flexible operation& control, positioning accuracy (± 0.1 °);
4.Unique 355 degree horizontal unlimited consecutive pan, tilt range 120 degrees;
5. Maximum horizontal rotation speed of 80 ° / sec, vertical rotation speed of 60 ° / sec;
6. 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller, memory auto store when power off;
7. VISCA and PELCO P / D protocol optional;
8. Enter and exit the menu via IR remote controller “M-OPEN” button directly;
9. 254 addresses can be set (can be controlled 7 cameras via VISCA);
10. Multi control methods available, support IR remote control, RS-232C / 422 serial controls;
11. Multi-installation methods: wall mounting, desktop or ceiling mounting;
12. Information feedback automatically prompts;
13. Preset automatically correct;
14. Full compatibility with SONY terminal.
What is the datasheet of this camera?
Parameters:
Item No. | KT-HD20CX |

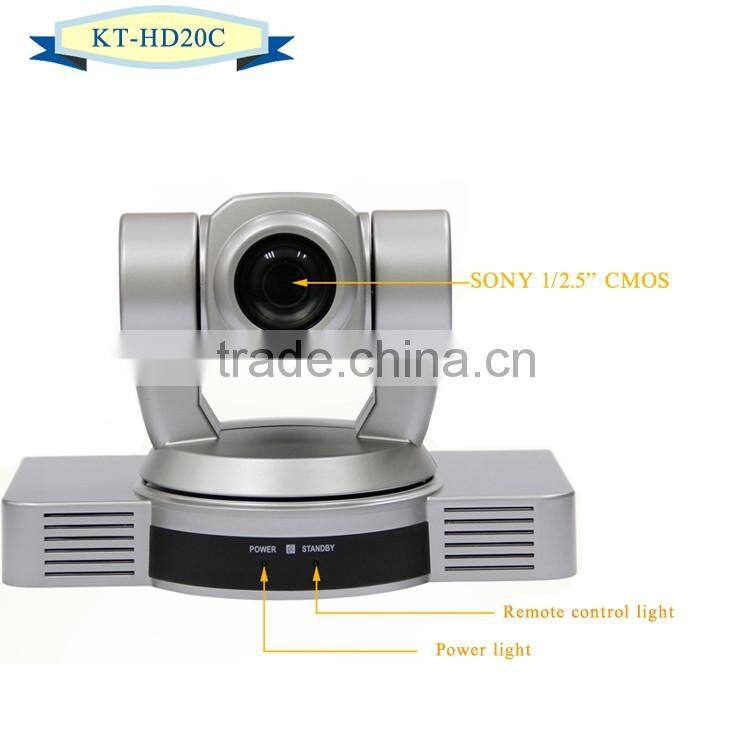

Image Sensor | SONY 1/2.8’’Progressive CMOS |
Effective Pixels | 4 Megapixels |
Resolution HD | 1080p60/50,1080i60/50,1080p30/25,720p60/50 |
Signal System | PAL/NTSC |
Lens | 20X optical zoom, f=4.7mm(wide angle end)~94.0 mm(far end) |
Horizontal View Angle | 59.5°(W)~3.3°(T) |
Focus System | Auto/Manual |
Minimum Illumination | 0.4Lux |
Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
Shutter Speed | 1/1~1/10,000s |
Gain | Auto/Manual |
White Balance | Auto/ Indoor/Outdoor/Manual |
Image Effect | Full color/black and white/Electronic flip |
S/N Ratio | ≥50db |
Pan | 355°(max. speed:80°/s) |
Tilt | -30° to +90° (max. speed: 60°/s) |
Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard |

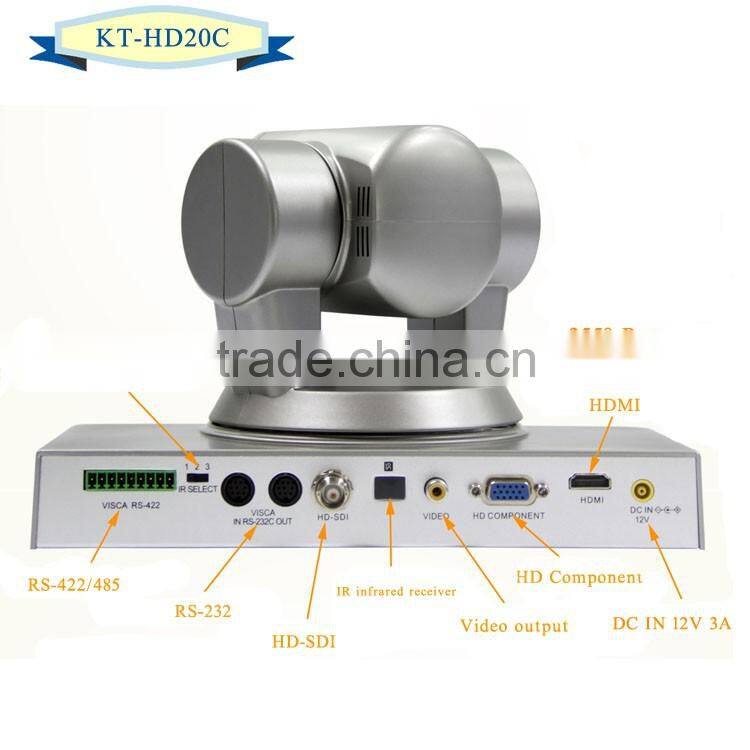

Video Output HD | DVI-1(YPBPR,HDMI),HD-SDI,RJ-45 |
Video Output SD | CVBS(RCA) |
Control Protocol | SONY VISCA, PELCO P/D |
Control Mode | RS-232C, RS-422/485 |
Power | 12V DC(10.8~13.0V DC) |
Power Consumption | Max. 30W(DC 12V) |
Operating Temperature | 0~40℃ |
Storage Temperature | -20-60℃ |
Dimensions | (L)262×(W)165×(H)157mm |
Weight | 1710g |
Color | White |

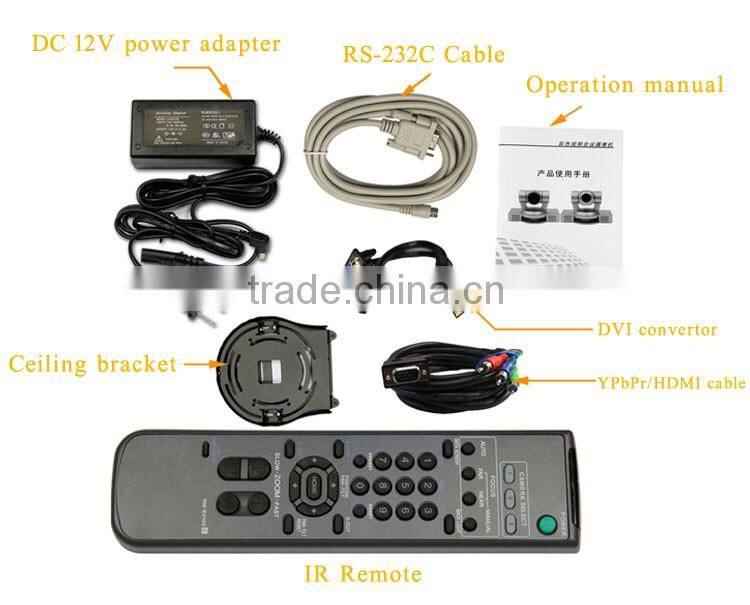

Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, YPbPr/HDMI cable, Ceiling bracket |
