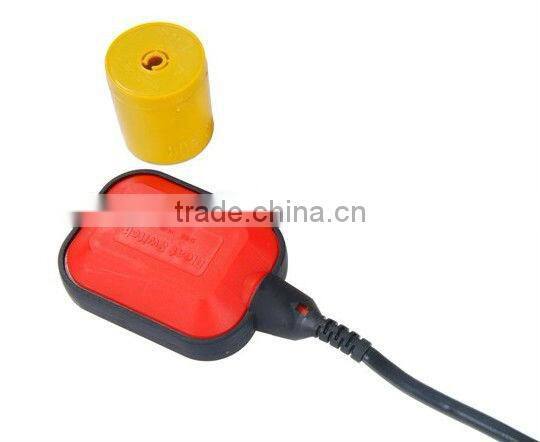

Electrical Water Level Control Float Switch FDK-2
Negotiable
MOQ: 120 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Kuopu
Model Number:
FDK-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Kuopu
Model Number
FDK-2
Max. Current
AC16(4)A
Max. Voltage
AC125V-250V
Specifications
Model NO.: FDK-2Certificate: CE and TUV certificate
Power cable : Customer's can choose the length
1.Auto-fill-water modes
Connect the control's blue line to electric pump, black line is connected to zero-line, black,brown line can not be connected and should be insulated.
2.Auto-drainage and lack-water protection modes
Connect the control's brown line to electric pump,the black line is connected to the zero-line, the blue line can not be connected and should be insulated
3.Fill-water and drainage auto-swith mode
The chart is fill-water and drainage auto-switch mode. This electric connection chart synthesize by automatic fill-water and auto-drainage
Rated Voltage:AC125/250V
Max Current:AC16(4)
Frequency:50/60Hz
Max.Using Temperature:50 degree centigrade
Protection Degree:IP68
Optional:
FDK-1
