20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring thumbnail-1
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring thumbnail-2
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring thumbnail-3
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring thumbnail-4
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring thumbnail-5
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring photo-1
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring photo-2
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring photo-3
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring photo-4
20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring photo-5
US$ 4 - 20 MOQ: 900 Sheets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chinsunboard
Model Number:
MGO1
Contact Supplier Request Quote Chat Now
Yuyao Chinsun Building Material Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Chinsunboard
Model Number MGO1

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

mgo1

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

Magnesium Oxide Board Introduction

Mgo board is a kind of new green building material which is used in place of traditional gypsum drywall as partition wall and ceiling covering material and sheathing. MgO boards could be used anywhere Gypsum boards or dry walls could be used, such as wall board, backer board, underlayment, siding etc. MgO boards do have many advantages over gypsum boards or dry walls which make them the material of choice for new constructions and renovations.

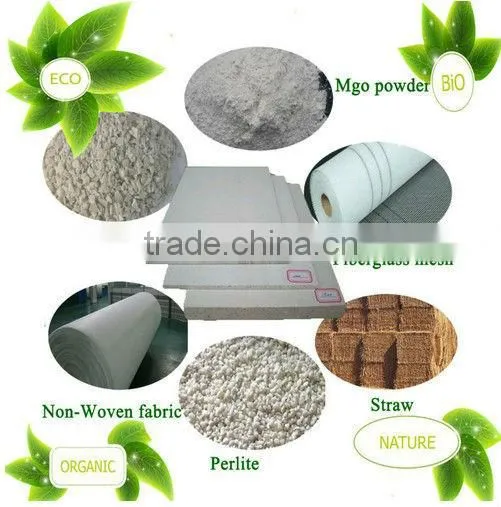

 Composition of Clean mgo board

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

mgo2

Characteristics of Magnesium Oxide Board



Item

Raw Materials

MgO, MgCl2, fiberglass mesh, non-woven cloth


Standard Size(mm)

Density(t/m³)

Fireproof



Weight(kgs)

Loading pieces

Full 20GP

1

2440×1220×3

1.0-1.2

Grade A

11

1360 pcs

2

2440×1220×4

1.0-1.2

Grade A

13

1240 pcs

3

2440×1220×5

1.0-1.2

Grade A

15

1008 pcs

4

2440×1220×6

1.0-1.2

Grade A

18

 850 pcs

6

2440×1220×8

1.0-1.2

Grade A

24

640 pcs

7

2440×1220×9

1.0-1.2

Grade A

26

572 pcs

8

2440×1220×10

1.0-1.2

Grade A

28

512 pcs

10

2440×1220×12

1.0-1.2

Grade A

34

420 pcs



Note: Other standard size: 2400×1200×3-20mm,we also provide customerization, please feel free to contact me

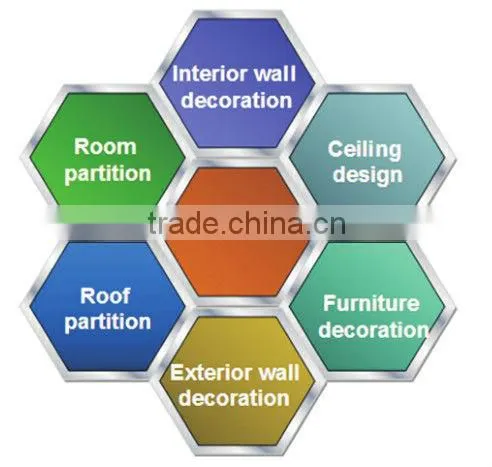

Application of mgo board

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

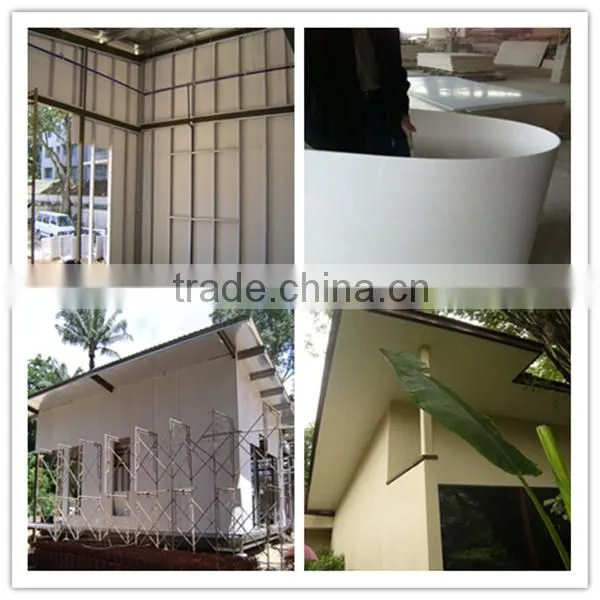

mgo board partition system installtion

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

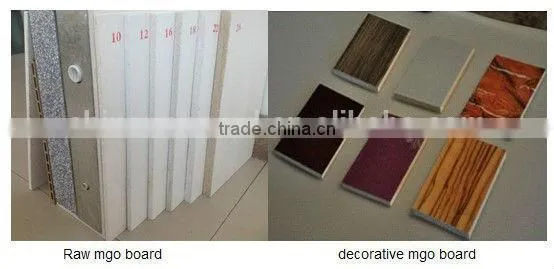

Mgo board also can be further processed:

faced with wallpaper

coated with latex paint

glued with ceramic tile

one surface with a design of wood or water grain.

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

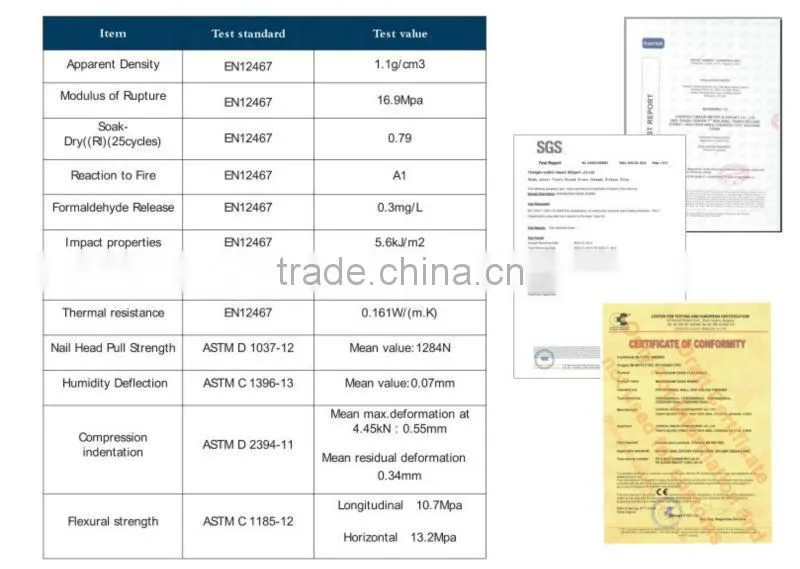

Performance:

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring



WHY so many customers choose Our mgo board?



                                                         Choose Chinsun board , choose green healthy life



                     20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

Fireproof capability:the fireproof capability can be reached 3 hours, and it’s no combustion at 800ºC and no flame out at 1200ºC.



Sound and heat insulation:the Sound insulation will be more than 45db (depend on the structure), and it has a great performance on heat insulation



Resistance to water:Mgo board doesn’t absorb water; its expansion in water is less than0.3% so it’s a better choice for high humidity areas



Shockproof:Fiberglass mesh inside the boards is designed to absorb shocks. It results in a shockproof and bend-proof board to increase durability.



Health concerns:MgO boards are Asbestos free,non toxicity and formaldehyde free.



Mold and mildew proof:MgO Boards are resistance for bacterial, mold, and mildew growth. That makes it suitable for hospitals constructions since bacterial resistance is of utmost importance.



Scratchproof:Our MgO board has a very smooth surface that could be covered with PVC, vinyl, or washable acrylic paint and can be used for decoration.

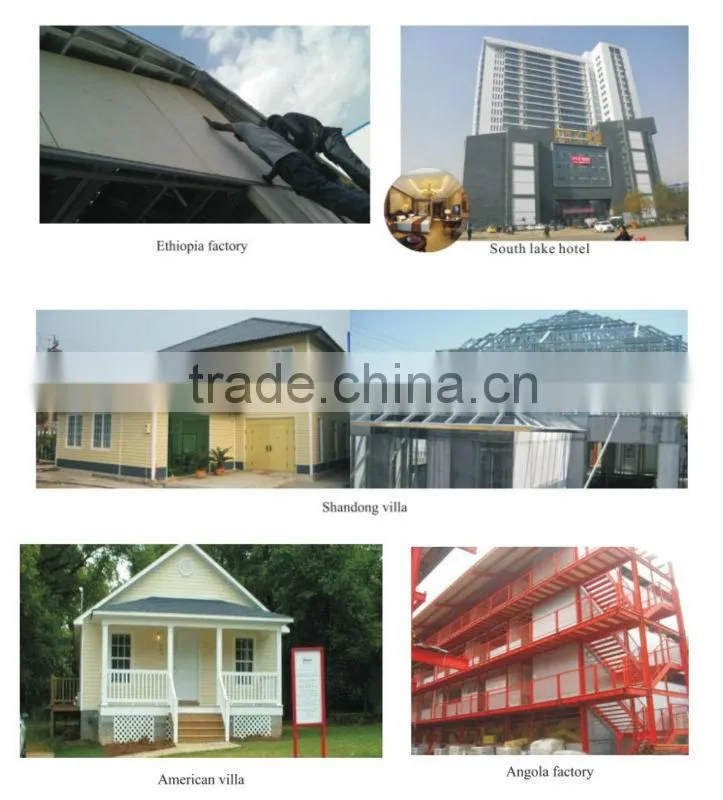

Successful projects:

20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

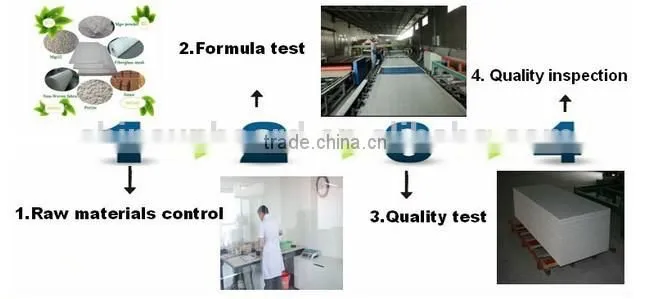

Strictly quality control system to ensure the quality



20mm Fireproof Magnesium Oxide Board(MGO Board)For Flooring

About Chinsun family

1. Specialize in magnesia products, technology , machines, and some other relative products, including the MgOpartition panel, board, tile, door and central air conditioner pipes etc.



2. Sustainable green building system is our slogan. And our core value is“ Quality primacy, High reputation, Service supremacy, Equality and mutual benefit”.



3. We have our own factory and research team for technology and products improvement; including chemical expert working in this filed for over 10 years; 15 full-time workmates including 1 building engineer and 1 mechanical engineer.







Any further information please feel free to contact us!







P:+86-13646638591 | F:+86-575-82071815







Whatsapp or Viber: 008613646638591







Skype:leeli089
