Technical Parameters
| Item | Unit | YST-63 | YST-100 | YST-200 | YST-315 | YST-630 | YST-630 | YST-1000 | YST-1500 | |
| Nominal Pressure | kN | 630 | 1000 | 2000 | 3150 | 6300 | 6300 | 10000 | 15000 | |
| Side Cylinder Pressure | kN | 250*3 | 500*2 | 1000*3 | 2000*3 | 3150*3 | 5000*2 | 8000*2 | 12500*2 | |
| The Max. Working Pressure of Fluid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| The Max.Distance between Working Table and Slider | mm | 500 | 900 | 1120 | 1250 | 1800 | 1200 | 1500 | 1800 | |
| Slider Stroke | mm | 230 | 8-22 | 5-14 | 8-22 | 1000 | 500 | 800 | 800 | |
| Side-Cylinder Stroke | mm | 150 | 100 | 200 | 200 | 350 | 350 | 400 | 400 | |
| The Height Between Working Table and Ground | mm | 800 | 860 | 550 | 650 | 500 | 600 | 600 | 1550 | |
| The Max.Distance between Piston End of Side Cylinder | mm | 600 | 600 | 1000 | 1120 | 1800 | 1200 | 1400 | 2000 | |
| The Max.Distance Between Piston End of behind-side Cylinder and working Table Centre | mm | 300 | 300 | 500 | 450 | 900 | ||||
| The Height between Working Table Face and Side Cylinder Centre | mm | 100 | 120 | 220 | 320 | 350 | 320 | 400 | 500 | |
| Slider Working Speed | Quick Descend | mm/s | 20 | 160 | 120 | 80 | 120 | 60 | 60 | 100 |
| Press-in | mm/s | 4-6 | 10-23 | 12-24 | 1-10 | 6-13 | 1-8 | 1-6 | 1-6 | |
| Return | mm/s | 40 | 130 | 150 | 60 | 150 | 100 | 80 | 80 | |
| Speed of both side Cylincer extrusion | mm/s | 17 | 10 | 14-24 | 8-16 | 6 | 3-5 | 3-6 | 3-5 | |
| Power | Kw | 5.5 | 11 | 15.5 | 22 | 30*2 | 59.5 | 51.5 | 143.5 | |
| Overall Dimensions | Front-Back | mm | 1525 | 1700 | 2200 | 2535 | 4790 | 4132 | 4250 | 2000 |
| Left-Right | mm | 2870 | 3000 | 4800 | 5355 | 5860 | 4856 | 6650 | 4800 | |
| Height Above the Ground | mm | 2400 | 3260 | 5015 | 4312/4127 | 5920 | 6240 | 5780 | 3520 | |
| Structure | Four-Column | Four-Column | Four-Column | Four-Column | Four-Column | Gantry-Style | Gantry-Style | Gantry-Style | ||

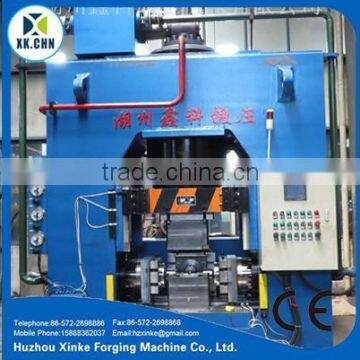

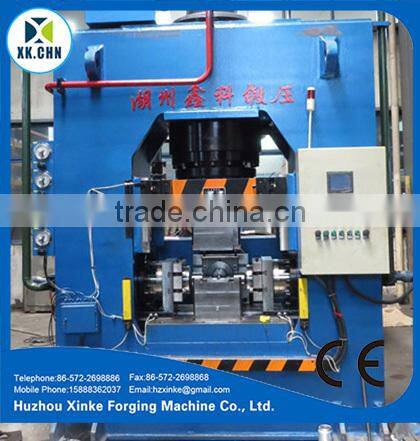

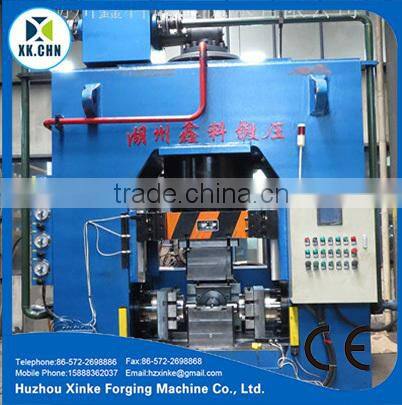

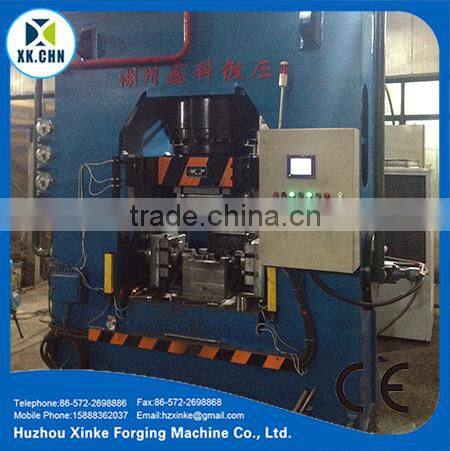

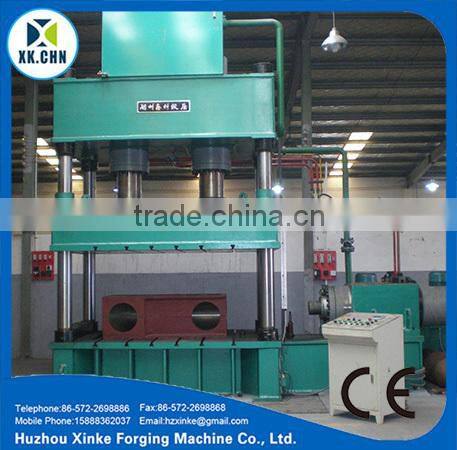

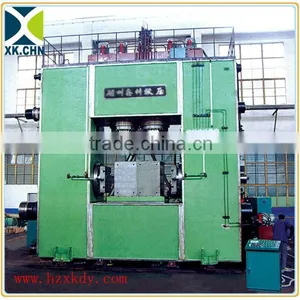

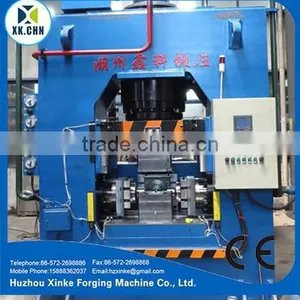

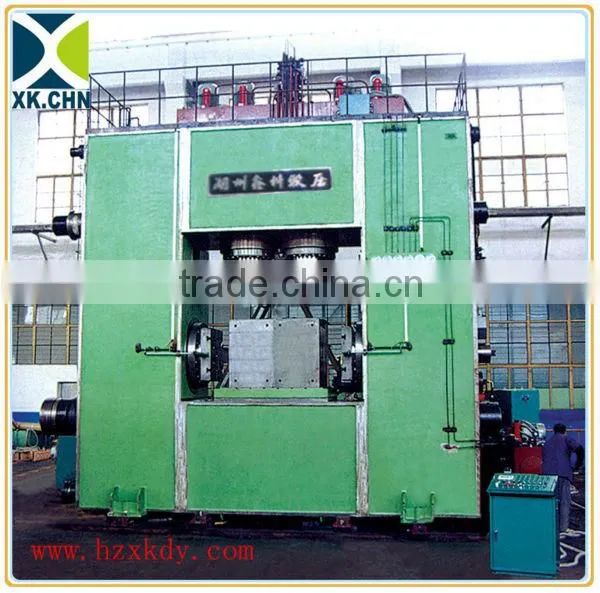

Xinke Three hot Extrusion Hydraulic Press
Characteristics:

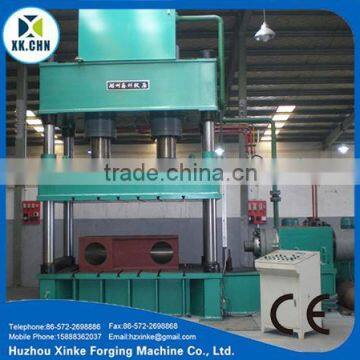

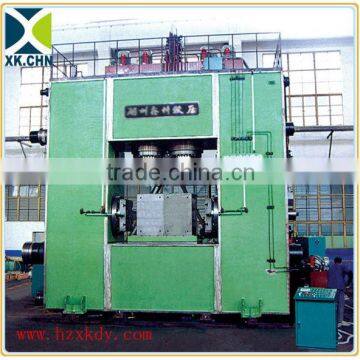

1. Gantry-style or Four-column structure, adopted Computer Optimized Design with High rigidity and high accuracy
2. Based on Latest Close-Loop Ratio Control Technology, digital display, setting stroke, pressure and speed, and also controlling high rigidity
3. Independent Power and electrics system, Adopting Industrial Touching Screen with Japanese PLC, Centralized pushbutton control. Two working way: Handle working and Auto-working

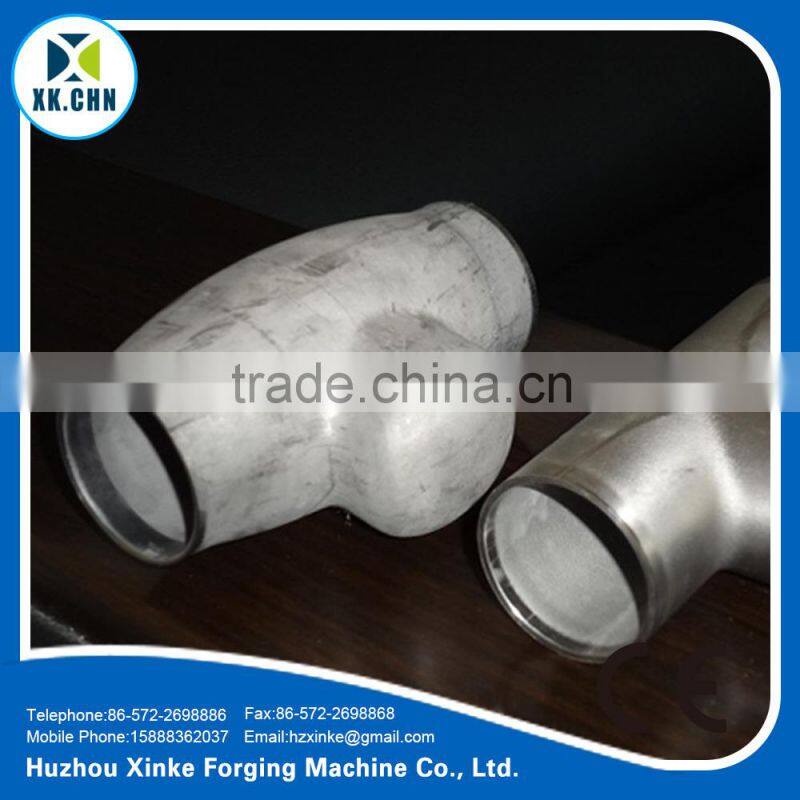

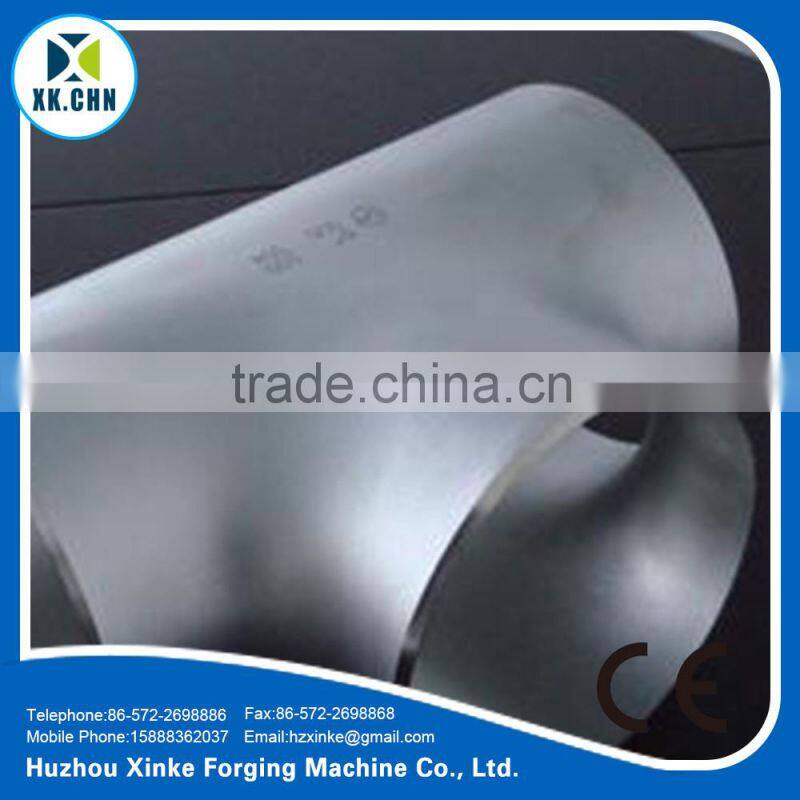

4.The ideal choice of pressing tee pipe coupling and 90º elbow with the feature of high reliability, high production efficiency
Applications:

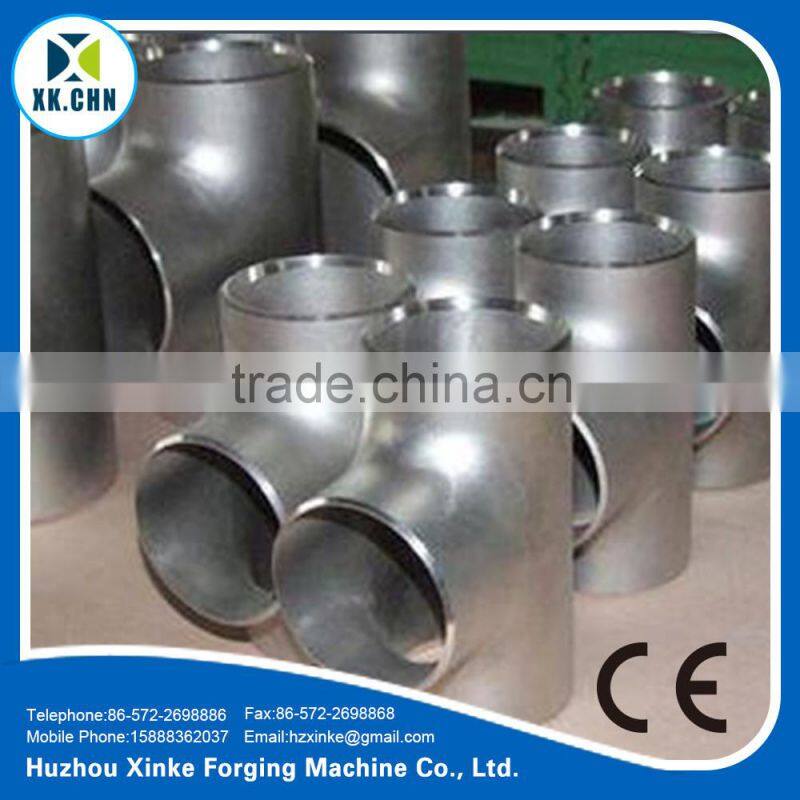

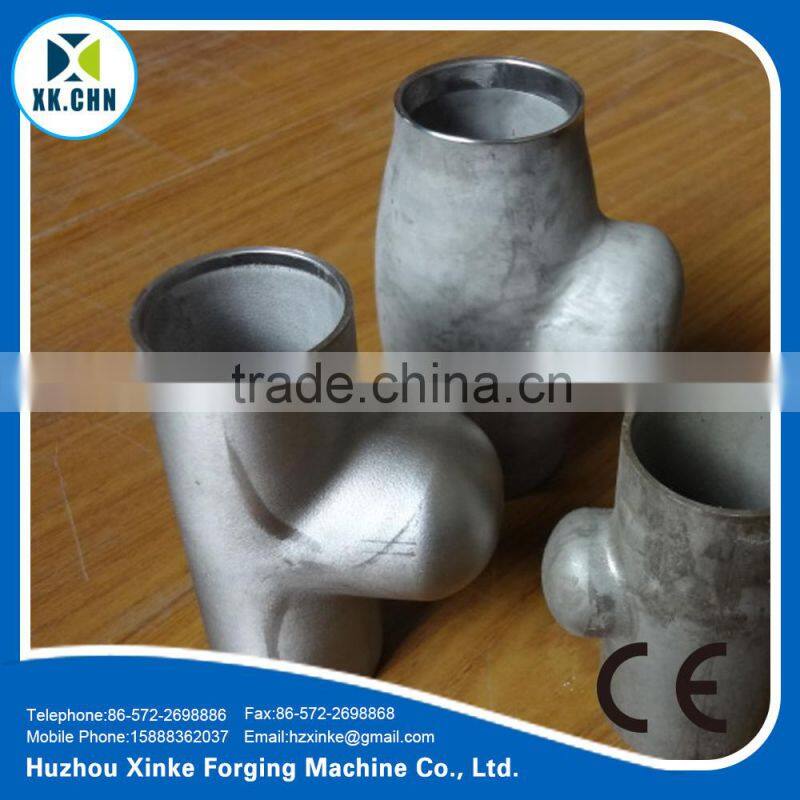

With the latest Close-Loop Proportional Control Technology, digital control speed, pressure and pressing process at all your need. Suitable for Extrusion forming for Tee pipe fitting of all kinds of Stainless and carbon steel.
Options:
90 degree elbow extrusion with the side cylinder; Light Curtain Safety Device; Ultrahigh Pressurization System
More products :
About us:
Huzhou Xinke Forging Machine Co., Ltd is located in Huzhou Economic and Technology Development Zone-South west Branch, to the west of Huzhou Bus Station. It locates in the superiorly geographical position and transportation convenient! The company possesses a group of professional Engineer and machinist for designing and making Hydraulic Press. We have formed kinds of structure, such as Four Column, Gantry style, Single column, and Horizontal Type. Our products include Special Hydraulic Press, Single-action Hydraulic Stamping Press, Double-action Hydraulic Drawing Press, Mental Extrusion Hydraulic Press, Powder Extrusion Hydraulic Press and Motor Manufacturing Hydraulic Press, etc. We can make a set of Hydraulic Press, Hydraulic Control System and Hydraulic Power Station!
We can offer the low price and reliable products, and also we will full play our technique and process to design effective equipment. We also can modify and improve Hydraulic system! Through scientific management and all the staff unremitting efforts, Hydraulic products are with High Quality, Highly Reliability and suitable price.
Our aim:
Technical Creativity, Sincere Management, Meticulous Education, Common Harvest.
1. Promising quality managing system, fully Knowing customer’s needs, whole-heartly Satisfying customer’s requirements.
2.Call back on time for the requirements. Door to door Service, within 24 hour in Zhejiang Province; within 48 hour out of Zhejiang; Within 24 hour (excluding holidays) answering for foreign market.
3. Be responsible for products, doing lifelong service.
(1) Providing door to door installation, adjustment, training service;
(2) Holding products knowledge and technical training meeting every year.
