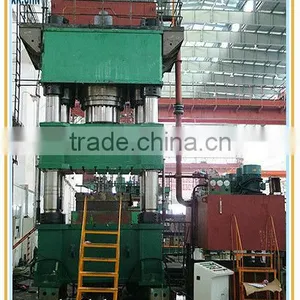

hydraulic press 500 tons

Specifications

hydraulic press 500 tons
1,high precious and durability.
2,simple controlling
3, reliable performance

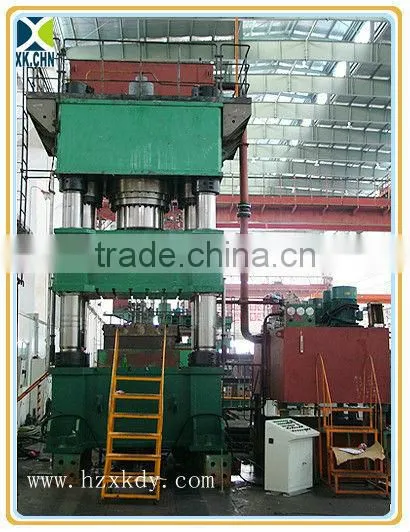

hydraulic press 500 tons





Characteristics of hydraulic press 500 tons:



1, Gantry or Four-column style based on Computer Optimizing Structure Design with high precious and durability.



2, Latest Closed-loop ratio control technology with digital display, position, pressure and speed setting,



3, Adopted in Inverter Control System with simple controlling, reliable performance and also reach to special SMC forming process.







 Apllications of  hydraulic press 500 tons:



 With the latest Closed-loop ratio control technology, digital control the speed, pressure, position, and pressing process with very high accuracy. The presses are will suitable for high quality production of various thermo setting and thermo-plastic SMC/BMC/DMC/LFT-D products. Widely used on aviation, aerospace, track vehicle, vessel, automobile, architecture, petrifaction, energy, electric and literary form producing.







Technical Specifications of hydraulic press 500 tons







Items           Type		Unit	Y71-63	Y71-100	Y71-200	Y71-315	Y71-400	Y71-500	Y71-630	Y71-800
Nominal Pressure		kN	630	1000	2000	3150	4000	5000	6300	8000
Preload Pressure		kN	250	315	630	1000	1250	2000	2500	2500
Mould Opening Force		kN	125	250	4000	630	800	1000	1250	1250
Ejection Force		kN	125	250	400	630	630	1000	1000	1000
Size of Working Table	Left-Right	mm	570	720	930	1260	1300	1400	1600/2000	2000
	Front-Back	mm	500	630	900	1200	1300	1400	1600/1800	1600
T Groove			22	22	28	28	36	36	36	36
Opening Height		mm	800	900	1120	1250	1250	1500	1500/2000	1600
Slider Stroke		t	500	630	710	800	800	900	1100/1400	1200
Knockout Stroke		mm/s	200	200	200	300	300	300	300	300
The Max. Pressure of System		Mpa	25	25	25	25	25	25	25	25
Quick Descend Speed		mm	120	120	120	150	180	180	200	200
Preload Speed		mm/s	5-25	5-25	5-20	5-20	5-20	5-20	5-25	5-25
Pressing Speed		mm/s	2-10	10-20	2-7	2-7	2-7	2-7	1-5	1-5
Mould Opening Speed		mm/s	5-30	5-30	5-30	5-30	5-30	5-30	5-30	5-30
Slider Return		mm/s	100	100	100	120	140	170	180	180
Slow Knockout		mm/s	5-30	5-30	5-30	5-30	5-30	5-30	5-30	5-30
Quick Ejecting		mm/s	80	80	80	80	80	80	60	60
Structure			Four-Column	Four-Column	Four-Column	Four-Column	Four-Column	Four-Column	Four-Column	Four-Column















The options of  hydraulic press 500 tons:



Moving Table; Conversion ejection device; Core-pulling, spraying, vacuum pumping device; Mould heating system; Light curtain safety device
