Technical Parameters
| Unit | Y79-100 | Y79-200 | Y79-315 | Y79-500 | Y79-630 | ||
| Nominal Pressure | kN | 1000 | 2000 | 3150 | 5000 | 6300 | |
| Knock-out Force | kN | 160 | 360 | 450 | 760 | 650 | |
| Ejecting Force | kN | 300 | 400 | 630 | 630 | 630 | |
| Ejection Stroke | kN | 200 | 250 | 300 | 300 | 300 | |
| The Max. Working Pressure of Fluid | MPa | 25 | 25 | 25 | 25 | 25 | |
| Opening Height | mm | 900 | 1120 | 1250 | 1500 | 1500 | |
| Slider Stroke | mm | 600 | 710 | 800 | 900 | 800 | |
| Size of Working Table | Left-Right | mm | 720 | 930 | 1250 | 1400 | 1300 |
| Front-Back | mm | 630 | 900 | 1200 | 1400 | 900 | |
| Slider Speed | Idle Descend | mm/s | 120 | 120 | 160 | 160 | 120 |
| Working | mm/s | 6-15 | 7-18 | 6-15 | 4-11 | 2-5 | |
| Exhausting | mm/s | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 | |
| Return | mm/s | 90 | 100 | 100 | 70 | 60 | |
| Ejecting | mm/s | 50 | 90 | 90 | 95 | 90 | |
| Configuration Power | Kw | 7.5 | 15 | 22 | 22 | 15 | |
| Piston Pump | YCY | 25 | 63 | 80 | 2*63 | ||
| Structure | Four-Column | Four-Column | Four-Column | Four-Column | Gantry-Style | ||

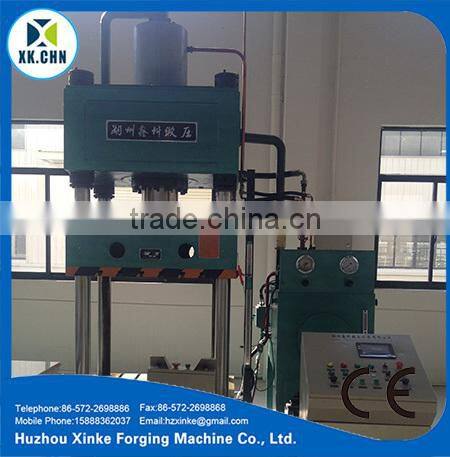

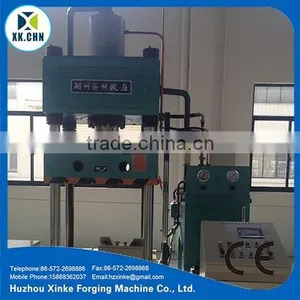

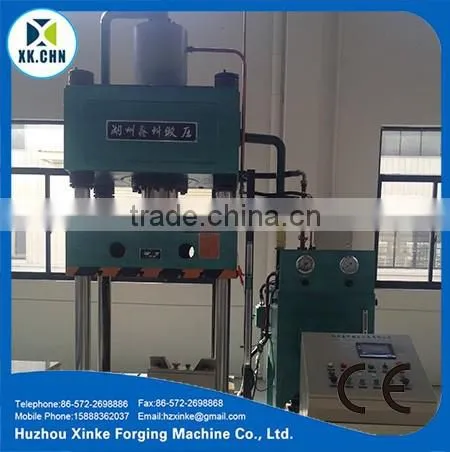

Y79 Friction material molding hydraulic machine/hydraulic press 80 ton
Characteristics:
1.Gantry or Four-column style based on Computer Optimizing Structure Design with high precious and durability.
2.Latest Closed-loop ratio control technology with digital display, position, pressure and speed setting,
3.Adopted in Inverter Control System with simple controlling, reliable performance and also reach to special SMC forming process.
4.Intelligent Temperature Control System. The precision can reach to ±5°C and Monitoring working conditions for heating elements of hotplate
5.Industrial Touching Screen Monitor and Communication module. Production control room uniform class and monitoring production process and statistics
6.630T Gantry Hydraulic Press is with exhaust system and Multilayer mold temperature control system, featuring high reliability and high quality
Applications:

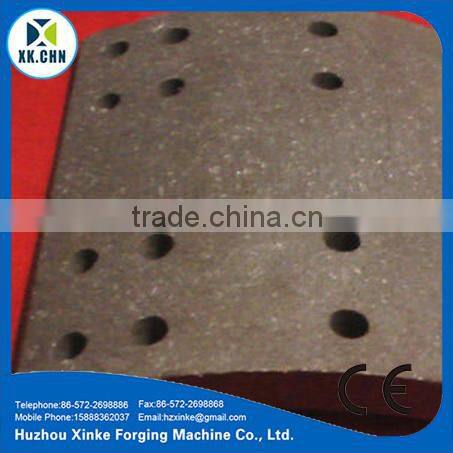

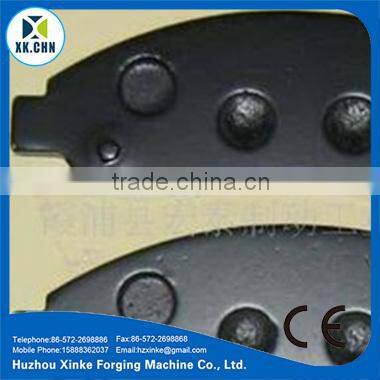

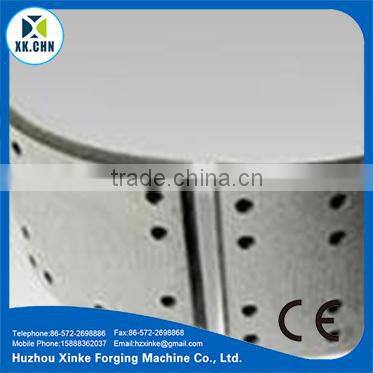

With the latest Frequency Conversion Control Technology, digital control the speed, pressure, position, pre-press and pressing process. The presses are will suitable for high quality production of various thermo setting friction products. Widely used on making brake pad of automobile industry
Options:
Multilayer Frame; Mould heating system; Light curtain safety device; Intelligent Temperature Control System
More products :
About us:
Huzhou Xinke Forging Machine Co., Ltd is located in Huzhou Economic and Technology Development Zone-South west Branch, to the west of Huzhou Bus Station. It locates in the superiorly geographical position and transportation convenient! The company possesses a group of professional Engineer and machinist for designing and making Hydraulic Press. We have formed kinds of structure, such as Four Column, Gantry style, Single column, and Horizontal Type. Our products include Special Hydraulic Press, Single-action Hydraulic Stamping Press, Double-action Hydraulic Drawing Press, Mental Extrusion Hydraulic Press, Powder Extrusion Hydraulic Press and Motor Manufacturing Hydraulic Press, etc. We can make a set of Hydraulic Press, Hydraulic Control System and Hydraulic Power Station!
We can offer the low price and reliable products, and also we will full play our technique and process to design effective equipment. We also can modify and improve Hydraulic system! Through scientific management and all the staff unremitting efforts, Hydraulic products are with High Quality, Highly Reliability and suitable price.
Our aim:
Technical Creativity, Sincere Management, Meticulous Education, Common Harvest.
1. Promising quality managing system, fully Knowing customer’s needs, whole-heartly Satisfying customer’s requirements.
2.Call back on time for the requirements. Door to door Service, within 24 hour in Zhejiang Province; within 48 hour out of Zhejiang; Within 24 hour (excluding holidays) answering for foreign market.
3. Be responsible for products, doing lifelong service.
(1) Providing door to door installation, adjustment, training service;
(2) Holding products knowledge and technical training meeting every year.
