Hydraulic Metal Cutting Machine

Hydraulic Metal Cutting Machine thumbnail-1
Hydraulic Metal Cutting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Xinke
Contact Supplier Request Quote Chat Now
Huzhou Xinke Forging Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Xinke
Model Number Y32
Machine Type Other
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services End Forming
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Product Description

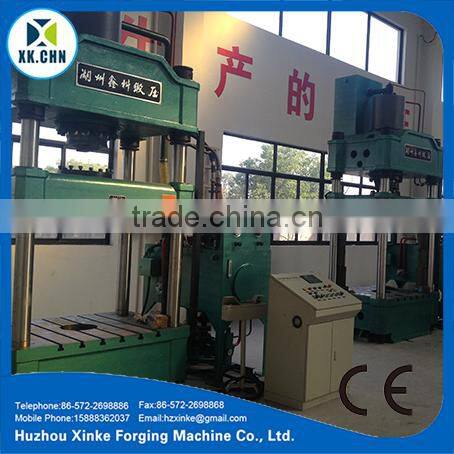

 Technical Parameters of  Y32 Four Column Hydraulic Press


Item type Unit Y32-40 Y32-63 Y32-100 Y32-125 Y32-200 Y32-315 Y32-400 Y32-500 Y32-630 Y32-800 Y32-
1000		 Y32-1250
Nominal Pressure kN 400 630 1000 1250 2000 3150 4000 5000 6300 8000 10000 12500
Ejecting Force kN 100 160 630 630 800 800 800 1000 1000 1250 2000 2000
Knock-out Force kN 150 125 160 180 360 450 345 570 850 720 1600 1200
The Max. Pressure of Working Fluid MPa 25 25 25 25 25 25 25 25 25 25 25 25
The Max. Stroke of Ejector mm 320 500 630 630 710 800 800 900 1000 1000 1000 1000
The Max. Stroke of Ejector mm 150 160 200 200 250 300 300 300 300 350 450 450
The Max. Opening Height mm 520 800 900 900 1120 1250 1250 1500 1600 1600 1600 1800
Speed of Slider Descend mm/s 55 115 250 220 160 120 180 150 120 150 150 250
Working mm/s 10-35 10-22 12-40 9-31 7-24 8-20 10-24 10-24 8-18 8-15 5-12 8-15
Return mm/s 105 105 200 180 120 120 250 180 125 145 75 140
Speed of Ejector Ejecting mm/s 170 90 60 60 60 75 120 65 65 98 60 50
Return mm/s 450 220 125 125 120 150 120 135 135 120 120 120
Active Area of Working Table(E×D) Left-Right mm 450 570 710 710 930 1260 1300 1400 1880 1880 2000 2500
Front-Back mm 400 500 630 630 900 1200 1300 1400 1600 1600 1800 2000
Overall Dimension Left-Right mm 1234 1850 2007 1880 2350 2840 3600 3750 5170 5390 5940 3400
Front-Back mm 1115 1855 1854 1854 2000 2000 2540 2600 2537 2480 3000 7600
Up to Ground mm 2252 2900 3260 3260 3680 4175 4650 4960 5257 5630 5400 7600
The Height between Working Table and Ground mm 870 800 860 860 550 650 710 500 500 500 450 450
Electric Motor Power kW 5.5 5.5 11 11 15 22 30 44 44 60 74 90
Weight of Machine t 1.5 2.7 4 4.1 10 13 17 21 33 43 52



76





Hydraulic Metal Cutting Machine



Hydraulic Metal Cutting Machine



Hydraulic Metal Cutting Machine



Characteristics:

1.Computer optimized design,3-beam&4-column compact structure;

2. Cartridge Valve Integrated System equipped in hydraulic control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design;

3.Independent electrical control system with reliability, intuitive movement and convenient amendment ;

4.Adopting Button common control;

5.Preset Stroke Forming or Preset Pressure Forming process can be selected

Applications:
Drawing, bending, flanging, cold extruding, blanking processes for metal materials; Adjusting, press-in and forming processes for powder and abrasive products, plastic and insulation materials



Hydraulic Metal Cutting MachineHydraulic Metal Cutting MachineHydraulic Metal Cutting MachineHydraulic Metal Cutting Machine



Options:
Cutting Dampening system; Oil heating/cooling unit;

Displacement sensor; Industrial touching screen monitor;

PLC programmable controller;

Floating guide-way and rolling bracket for die exchange;

Working area lighting; Quick die clamping device; Light curtain safety device

More products :

Hydraulic Metal Cutting Machine





Company Information





Hydraulic Metal Cutting Machine

  About us:

Hydraulic Metal Cutting Machine



      Huzhou Xinke Forging Machine Co., Ltd is located in Huzhou Economic and Technology Development Zone-South west Branch, to the west of Huzhou Bus Station. It locates in the superiorly geographical position and transportation convenient! The company possesses a group of professional Engineer and machinist for designing and making Hydraulic Press. We have formed kinds of structure, such as Four Column, Gantry style, Single column, and Horizontal Type. Our products include Special Hydraulic Press, Single-action Hydraulic Stamping Press, Double-action Hydraulic Drawing Press, Mental Extrusion Hydraulic Press, Powder Extrusion Hydraulic Press and Motor Manufacturing Hydraulic Press, etc. We can make a set of Hydraulic Press, Hydraulic Control System and Hydraulic Power Station!

         We can offer the low price and reliable products, and also we will full play our technique and process to design effective equipment. We also can modify and improve Hydraulic system! Through scientific management and all the staff unremitting efforts, Hydraulic products are with High Quality, Highly Reliability and suitable price.

Our aim:

Technical Creativity, Sincere Management, Meticulous Education, Common Harvest.







Certifications





 Hydraulic Metal Cutting Machine





Our Services



1. Promising quality managing system, fully Knowing customer’s needs, whole-heartly Satisfying customer’s requirements.

2.Call back on time for the requirements. Door to door Service, within 24 hour in Zhejiang Province; within 48 hour out of Zhejiang; Within 24 hour (excluding holidays) answering for foreign market.

3. Be responsible for products, doing lifelong service.
(1) Providing door to door installation, adjustment, training service;
(2) Holding products knowledge and technical training meeting every year.
