Help Center99.95% Tungsten Screen for Melting Jeweler Crytal Material
Related Products
-
99.98% High Pure Tungsten TubeUS$ 50 - 130MOQ: 20 Kilograms -
Tungsten Crucible for Iron MeltingUS$ 50 - 150MOQ: 20 Kilograms
-
Sintering Tungsten Crucible and Molybdenum CrucibleUS$ 50 - 150MOQ: 20 Kilograms
-
High Pure Tungsten Crucible for Sapphire CrystalUS$ 50 - 150MOQ: 20 Kilograms
-
Pure Tungsten Plate/ Sheets/belt/strip/foilUS$ 50 - 150MOQ: 5 Kilograms
Specifications
1.Purity>=99.95%2. Density>=19.1g/cm3
3.Hardness>=200HV
4.Working temperature :1500-2600 DC
1.Purity>=99.95%
2. Density>=19.1g/cm3
3.Hardness>=200HV
4.Working temperature :1500-2600 DC
5.we can supply tungsten and molybdenum shield with size:
Material |
Connection way |
Max. offered size |
W |
Riveted joint |
Diameter:600 high:850mm |
Mo |
Riveted joint |
Diameter :2000; high: 2000mm |

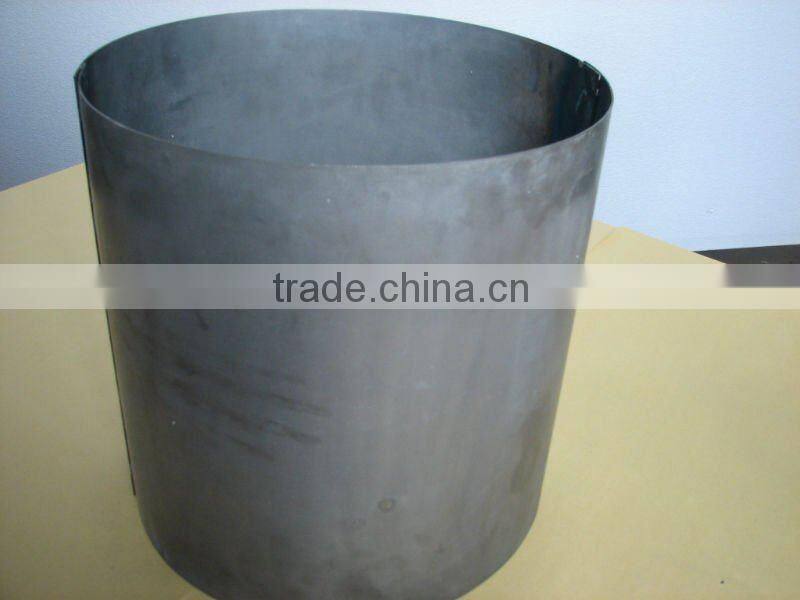

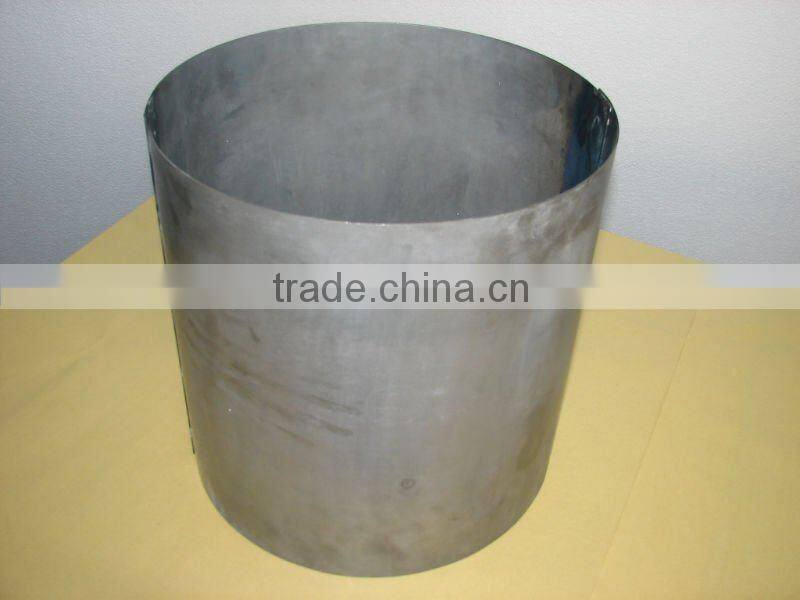

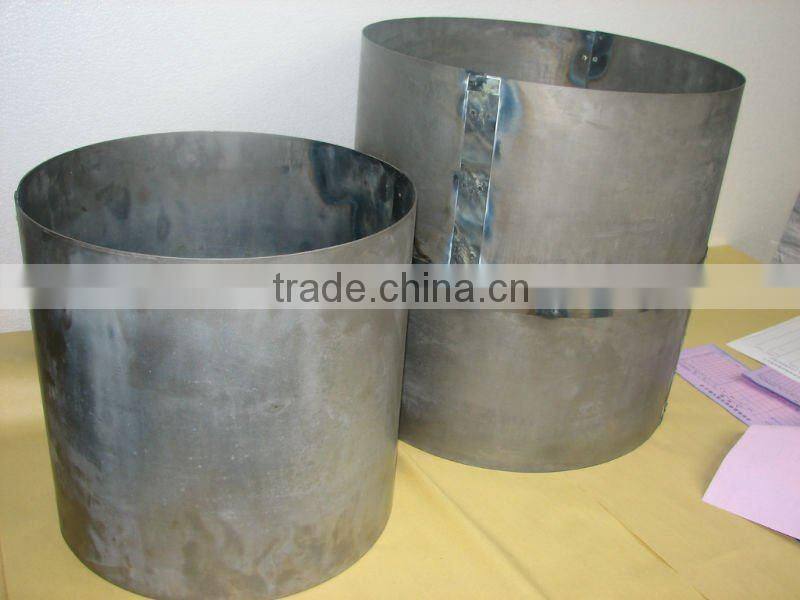

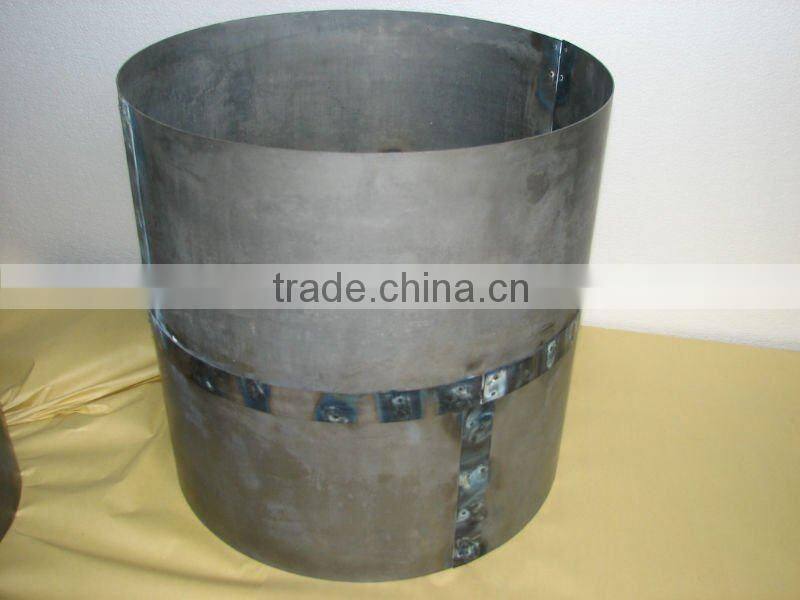

6.Products Show:
7.Application : vertical cylindrical vacuum furnace,Suiting for the heat insulation screen of crystal growing furnace.
8.characteristic:
Tungsten heat shield is very good materials for high temperature Hot-Zone construction . It works well at 1500-2200DC.. The heat shielding is make up of multiple layers of molybdenum sheet with spaces between each layer. Generally , a heat shielding often consists of 3-6 layers of tungsten sheet backed by stainless steel sheet . For higher operation temperatures, the number of tungsten layers is increased as well as the thickness of each layer.
9.Ceritficate of Quality:
