Tungsten Filament Vacuum Coating Wire

Name: Tungsten Filament Vacuum Coating Wire
Brand: Lytuojing
SKU: 112789673
Availability: InStock

US$ 10 - 80 MOQ: 5 Kilograms

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Lytuojing

Model Number:

W-1

Luoyang Tuojing Refractory Metal Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Peking.Guangzhou ect.

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name Lytuojing

Model Number W-1

Application High temperature field and electronics industry.

Shape wire

Material W>=99.95%

Dimensions Diameter:0.4 - 3.0mm

Chemical Composition W,Ca,Al,Mo,ect.

Specifications

1.Purity:W1>=99.95%,W2>=99.92%.
2.Density: 19.3g /cm3
3.Diameter: 0.4 - 3.0mm
4.Standard: GB/T4181-1997.

Product name: tungsten filament vacuum coating wire

1.Apperance:W-wire is regular black covered with graphite.Metallic luster after graphite removed.

2.We can provide the following size of tungsten wire:

3.Application of tungsten wire :

For producing electric light source parts and electric vacuum components.

For producing heating elements and refactory parts in high temperature furnaces.

For producing heating elements used in vacuum metalizing or plating.

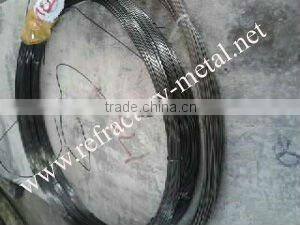

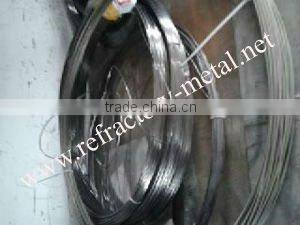

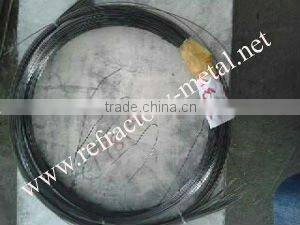

4.Attached our pictures of tungsten wire for your reference:

5.Tungsten Physical Properties:

Density	lb/in3	0.7
	gm/cm3	19.27
Melting Point	°F	6170
	°C	3410
Thermal Conductivity	Cal/cm2/cm° C/sec	0.48
	Cal/cm2/cm° C/sec	0.48
Specific Heat	Cal/gm/°C	0.032
	Cal/gm/°C	0.032
Coefficient of Linear Thermal Expansion	micro-in/°F x 10-6	4.3
	micro-in/°C x 10-6	2.4
	micro-in/°C x 10-6	2.4
Electrical Resistivity	micro-ohm-cm	5.5

6.We can also provide the following products,you may be interested in:

Molybdenum Product:			Molybdenum Sheet,Plate/Molybdenum Rod
			Molybdenum Crucible/Molybdenum Tube
			Molybdenum Special Shape Product
Tungsten Product:			Tungsten Sheet,Plate/Tungsten Rod
			Tungsten Crucible/Tungsten heat shield
			Tungsten Special Shape Product
Alloy Product:			TZM Alloy/Mo-La Alloy/W-Mo Alloy/Mo-Yt Alloy
