Technical Parameters of single column press
| Item | Unit | Y30-2.5 | Y30-4 | Y30-6.3 | Y30-10 | Y30K-10 | Y30-16 | Y30-25 | Y30-40 | Y30-63 | Y30-100 | Y30-315 | Y30-500 | |
| Nominal Pressure | kN | 25 | 40 | 63 | 100 | 100 | 160 | 250 | 400 | 630 | 1000 | 3150 | 5000 | |
| Ejector Force | kN | 60 | 100 | 125 | 200 | |||||||||
| The MAX. Working Pressure of Liquid | MPa | 8 | 12.5 | 16 | 20 | 20 | 20 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Ejecting Stroke | mm | 140 | 150 | 160 | 160 | |||||||||
| Stroke | mm | 125 | 200 | 200 | 250 | 400 | 320 | 350 | 400 | 400 | 450 | 450 | 1200 | |
| Roar Deep | mm | 110 | 125 | 180 | 250 | 230 | 250 | 280 | 320 | 320 | 320 | 350 | 1200 | |
| Max. Opening | mm | 210 | 360 | 360 | 450 | 700 | 520 | 560 | 600 | 650 | 710 | 710 | 1600 | |
| Size of Working Table | Left-Right | mm | 300 | 320 | 360 | 500 | 500 | 560 | 630 | 700 | 710 | 710 | 1000 | 2500 |
| Front-Back | mm | 200 | 240 | 320 | 420 | 420 | 480 | 520 | 580 | 600 | 630 | 650 | 2500 | |
| Size of Bed Opening | mm | φ80 | φ80 | φ80 | u100 | φ60 | φ100 | φ125 | φ125 | φ160 | φ180 | φ170 | ||
| The Height of Working Table | mm | 900 | 900 | 900 | 700 | 700 | 700 | 700 | 700 | 800 | 820 | 700 | 400 | |
| Speed of Slider | Downstream | mm/s | 38 | 38 | 55 | 45 | 45 | 45 | 115 | 63 | 115 | 110 | 180 | 130 |
| Working | mm/s | 38 | 38 | 55 | 25 | 25 | 10 | 15 | 14 | 10 | 8 | 8-15 | 5-12 | |
| Return | mm/s | 100 | 100 | 140 | 130 | 130 | 80 | 120 | 96 | 105 | 90 | 120 | 100 | |
| Overall Dimenshion | Left-Right | mm | 1105 | 1105 | 1295 | 1140 | 1190 | 1278 | 1485 | 1580 | 1750 | 1900 | 2000 | 4850 |
| Front-Back | mm | 555 | 555 | 660 | 760 | 730 | 750 | 860 | 860 | 1100 | 862 | 2280 | 2500 | |
| Height | mm | 1732 | 1807 | 1900 | 1810 | 2247 | 2150 | 2200 | 2200 | 2500 | 2705 | 4200 | 7600 | |
| Ejector Piston Speed | Ejecting | mm/s | 60 | 55 | 40 | 40 | ||||||||
| Return | mm/s | 180 | 220 | 160 | 160 | |||||||||
| Electric Motor Power | kW | 1.5 | 2.2 | 3 | 3 | 3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 30 | 30 | |
| Weight of Machine | t | 0.35 | 0.38 | 0.6 | 1.25 | 1.3 | 1.45 | 2.2 | 2.4 | 3.2 | 3.4 | 32 | 58 | |

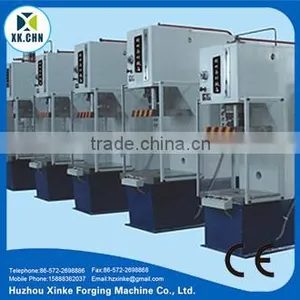

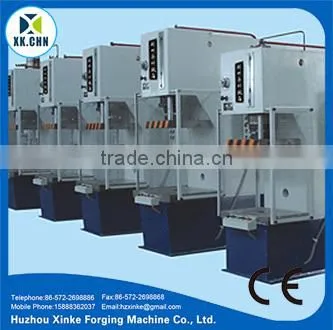

For Forming Xinke 120tons c frame hydraulic press
Characteristics:
1.Computer optimized designed C-frame vertical structure
2.With Ram direction guide rod
3. Independent hydraulic and electrical control system, centralized pushbutton control
4.Preset Stroke Forming or Preset Pressure Forming process
5.Adjustment operation or Two-hand/single cycle operation
Applications:
1.Drawing, forming, and coining processes for small size sheet metal products; bending, pressing forming process for big size sheet metal products
2.Adjusting and press-in processes for shaft and sleeve parts
3.forming processes for Non-metal materials, plastics products and powder products
Options:
Proportional regulation for slide speed; Displacement sensor; Light curtain safety device; Right and left lateral safety barrier; Power socket; Working area lighting; PLC program controller.
More products :
About us:
Huzhou Xinke Forging Machine Co., Ltd is located in Huzhou Economic and Technology Development Zone-South west Branch, to the west of Huzhou Bus Station. It locates in the superiorly geographical position and transportation convenient! The company possesses a group of professional Engineer and machinist for designing and making Hydraulic Press. We have formed kinds of structure, such as Four Column, Gantry style, Single column, and Horizontal Type. Our products include Special Hydraulic Press, Single-action Hydraulic Stamping Press, Double-action Hydraulic Drawing Press, Mental Extrusion Hydraulic Press, Powder Extrusion Hydraulic Press and Motor Manufacturing Hydraulic Press, etc. We can make a set of Hydraulic Press, Hydraulic Control System and Hydraulic Power Station!
We can offer the low price and reliable products, and also we will full play our technique and process to design effective equipment. We also can modify and improve Hydraulic system! Through scientific management and all the staff unremitting efforts, Hydraulic products are with High Quality, Highly Reliability and suitable price.
Our aim:
Technical Creativity, Sincere Management, Meticulous Education, Common Harvest.
1. Promising quality managing system, fully Knowing customer’s needs, whole-heartly Satisfying customer’s requirements.
2.Call back on time for the requirements. Door to door Service, within 24 hour in Zhejiang Province; within 48 hour out of Zhejiang; Within 24 hour (excluding holidays) answering for foreign market.
3. Be responsible for products, doing lifelong service.
(1) Providing door to door installation, adjustment, training service;
(2) Holding products knowledge and technical training meeting every year.
