hydraulic deep drawing press1, high safety and reliability
2, flexibility
3,simple, economic and practical work

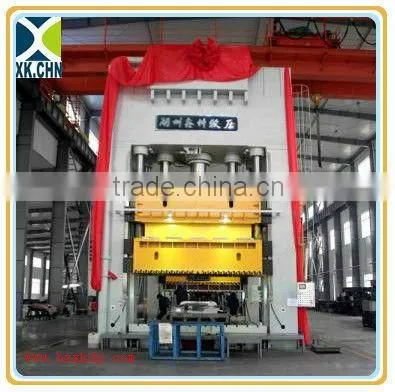

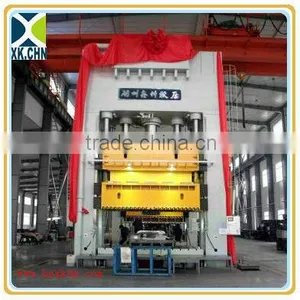

hydraulic deep drawing press
Characteristic of hydraulic deep drawing press:
1, Computer Optimized Design, 3-beam&4-column structure or Gantry-Style structure
2, Gantry-style structure with high rigidity; Four-column structure with simple, economic and practical working
3, drawing and Blankholder Slider be linked, Reach to Single action process
4, Safety protection system with mechanic, electric and hydraulic interlock, such as Oil cylinder cavity supporting loop, Cylinder cavity interlocking circuit with high safety and reliability
5, Control system based on PLC, sensitivity, reliability and flexibility
Applications of hydraulic deep drawing press:
Suitable for all deep drawing process, especially in the following fields:
1, Pressure Vessel, Drawing and forming for barrel and head cap
2, deep drawing for Stainless steel sink
3, drawing for long work piece, like bath
4, Drawing and Forming for Big automobile panel and parts
.
Technical Specification of hydraulic deep drawing press
| Item | Unit Type | HY28-400/630 | HY28-500/800 | HY28-630/1030 | |
| Press Force | kN | 6300 | 8000 | 10300 | |
| Slider Drawing Force | kN | 4000 | 5000 | 6300 | |
| Slide Blank Holder Force | kN | 2300 | 3000 | 4000 | |
| Hydraulic Cushion Force | kN | 1500 | 2000 | 2400 | |
| Knock-out Force of Tensile Slider | kN | 500 | 700 | 700 | |
| Knock-out Force of Blankholder Slider | kN | 500 | 700 | 700 | |
| Ejector Force of Hydraulic Cushion | kN | 500 | 630 | 800 | |
| The MAX.Operating Pressure of Liquid | MPa | 25 | 25 | 25 | |
| The MAX.Distance from Tensile Slider to Working table | mm | 1700 | 2000 | 2200 | |
| The MAX.Distance from Blankholder Slider to Working table | mm | 1700 | 2000 | 2200 | |
| The MAX. Stroke of Tensile Slider | mm | 1000 | 1100 | 1300 | |
| The MAX. Stroke of Blankholder Slider | mm | 1000 | 1100 | 1300 | |
| The Stroke of Hydraulic Cushion | mm | 300 | 350 | 400 | |
| Size of Blankholde Slider | mm | 2500*1800 | 3000*2000 | 3200*2200 | |
| Size of Hydraulic Cushion | mm | 1800*1200 | 2300*1400 | 2500*1500 | |
| Active Size of Tensile Slider | Left-Right | mm | 1800 | 2300 | 2500 |
| Front-Back | mm | 1200 | 1400 | 1500 | |
| Active Size of Working Table | Left-Right | mm | 2500 | 3000 | 3200 |
| Front-Back | mm | 1800 | 2000 | 2200 | |
| Speed of Tensile Slider | Quick Downstream | mm/s | 300 | 300 | 300 |
| Tensile descending | mm/s | 10~45 | 10~45 | 10~45 | |
| Return | mm/s | 200 | 200 | 200 | |
| Speed of Blankholder Slider | Downstream | mm/s | 300 | 300 | 300 |
| Working | mm/s | 10~45 | 10~45 | 10~45 | |
| Return | mm/s | 200 | 200 | 200 | |
| Total Electric Motor Power | kW | 120 | 160 | 180 | |
| Weight of Machine | t | 130 | 160 | 200 | |
Options of hydraulic deep drawing press
Proportional regulation for slide speed and force; Proportional regulation for cushion force; Light curtain safety device; Oil heating/cooling unit; Industry touching screen monitor; Displacement sensor; Floating guide-way and rolling bracket for die exchange; non-recycling column slide device; Working area lighting;Power Socket
