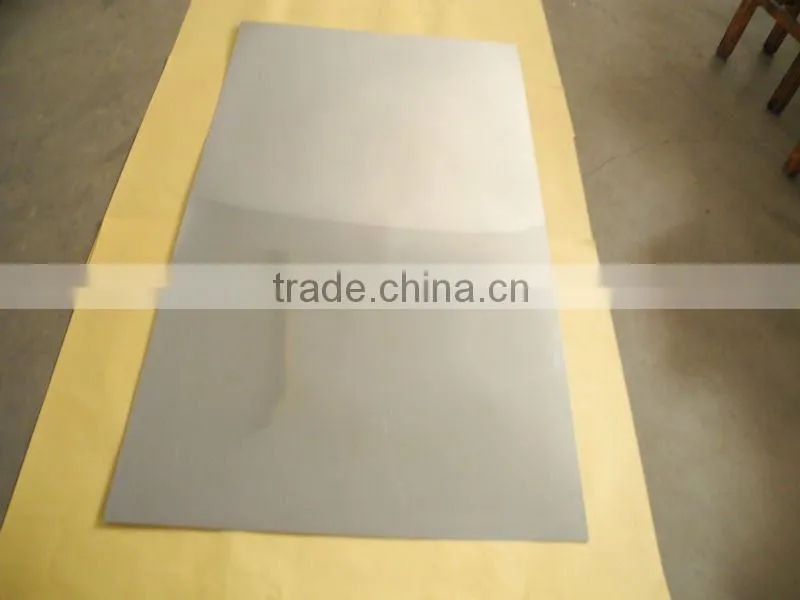

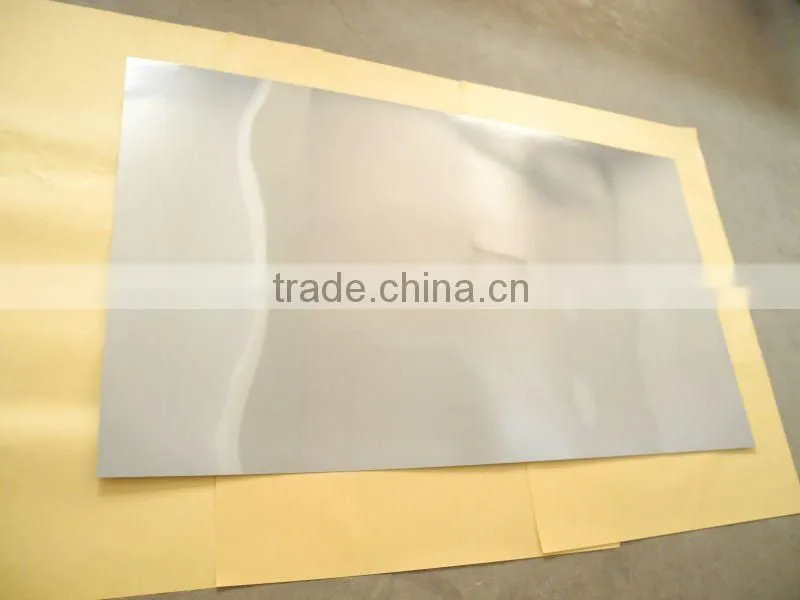

Help CenterThin Molybdenum Sheets
US$ 50 - 150
MOQ: 5 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Luoyang Tuojing Refractory Metal Co.,Ltd
Model Number:
MO-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
99.95% High Purity Molybdenum Crucible for SapphireUS$ 50 - 100MOQ: 5 Kilograms -
Molybdenum Plates for Electric Vacuum DevicesUS$ 50 - 100MOQ: 5 Kilograms
-
The Polished Surface Mo SheetUS$ 50 - 100MOQ: 5 Kilograms
-
Special Shape Pure Moly Sheet/Plate for Vacuum FurnaceUS$ 50 - 100MOQ: 5 Kilograms
-
99.95% High Purity Moly BeltUS$ 30 - 85MOQ: 5 Kilograms
Place of Origin
Henan, China
Brand Name
Luoyang Tuojing Refractory Metal Co.,Ltd
Model Number
MO-1
Application
industrial furnace and medical
Shape
sheet
Material
pure molybdenum
Dimensions
≤820mm wide,thickness≥0.2mm,unlimited length
Chemical Composition
molybdenum
Specifications
1.Appearance:Silver gray metallic luster2.Standard:GB/T 3462-2007
3.Density:>=10.2 g/cm3
4.Size:<=820mm wide,thickness>=0.2m
1.Appearance:Silver gray metallic luster
2.Standard:GB/T 3462-2007
3.Density:>=10.1g/cm3
4.Size:
| Thickness | Width | length | Surface Treatment |
| 0.1-0.25 | <=300 | <=1000 | Rolled |
| 0.25-30 | <=800 | <=2000 | Rolled and acording to client's requirments |
5.Surface Treatment:
The specification within 2.0mm thickness, we provide rolling surface.Above 2.0mm thickness, the surface we provide according to the customer's requirements.Surface can be supplied in a shiny, bright, or as-rolled condition; dependent upon thickness.

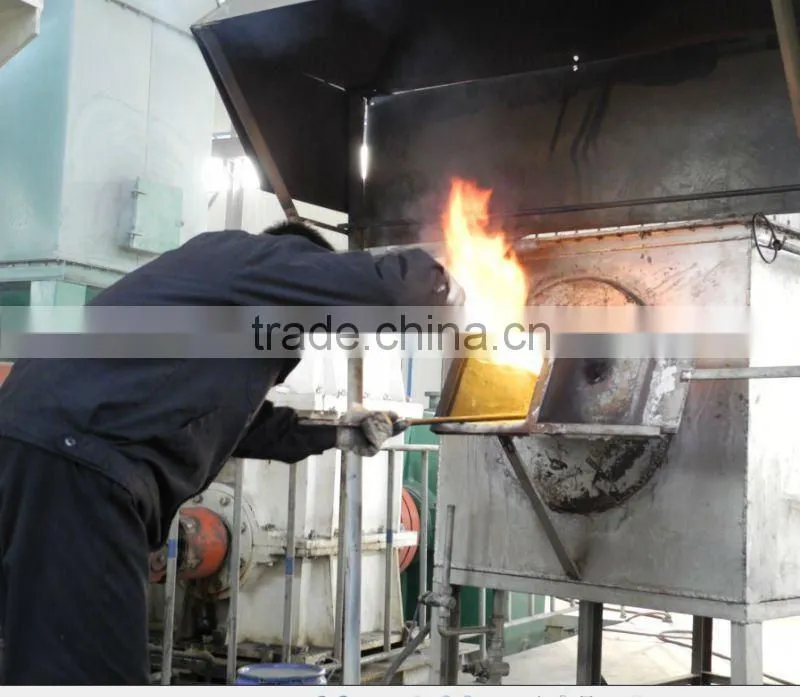

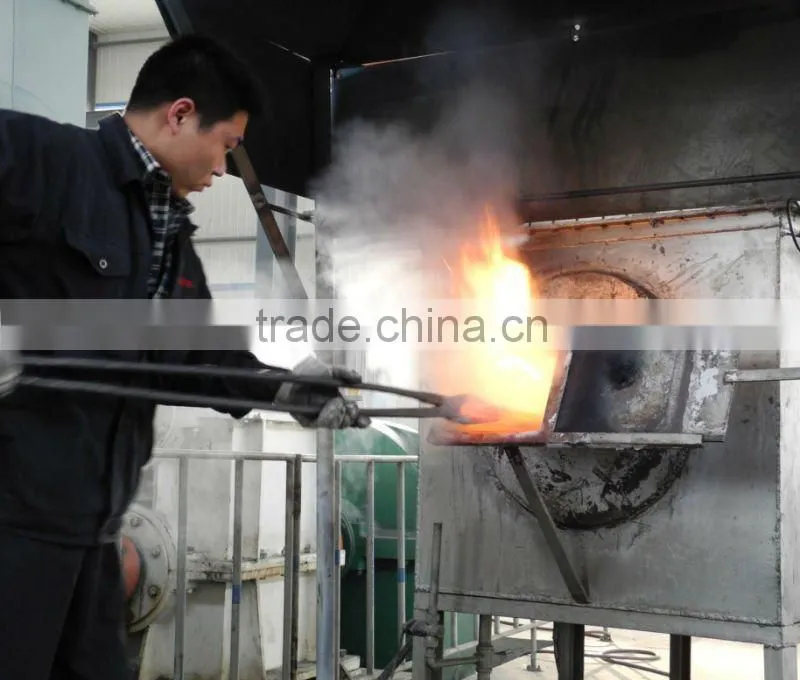

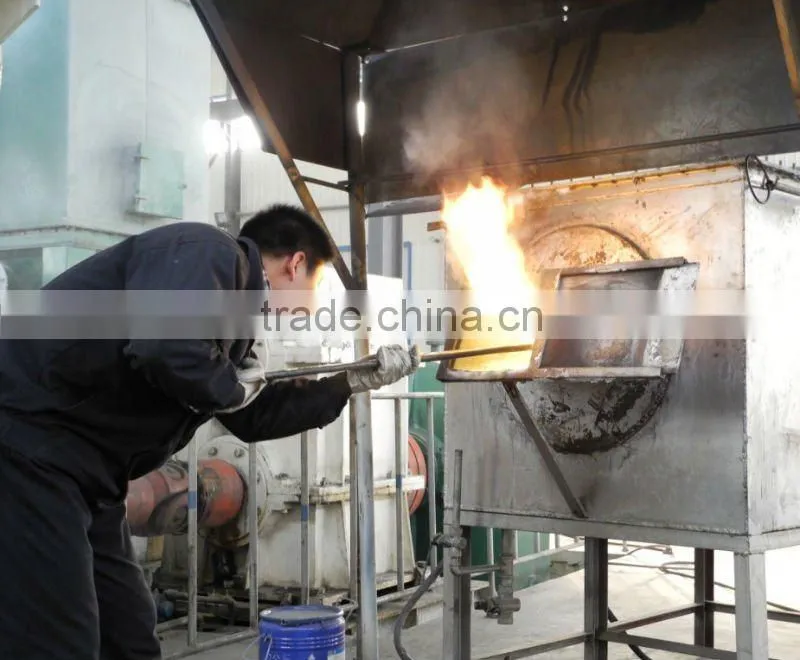

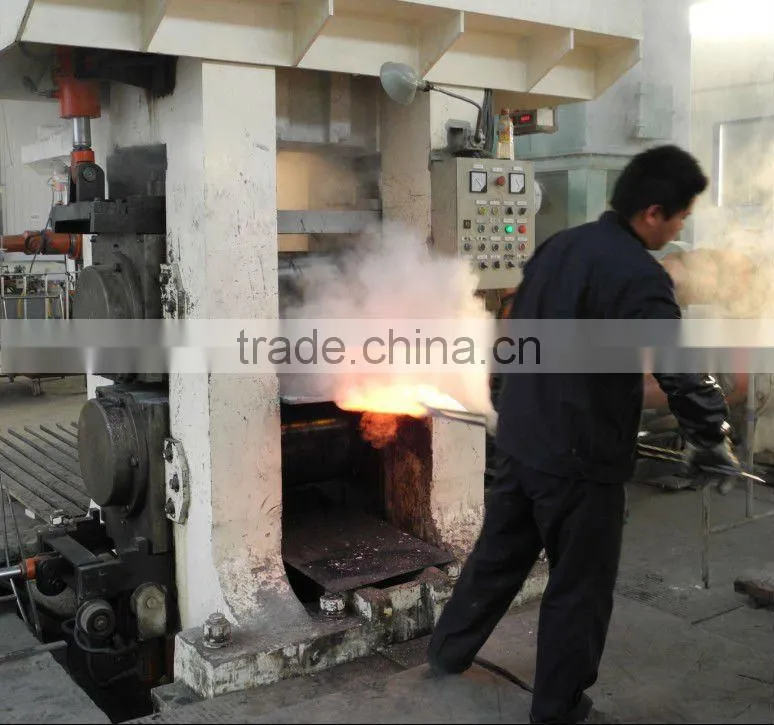

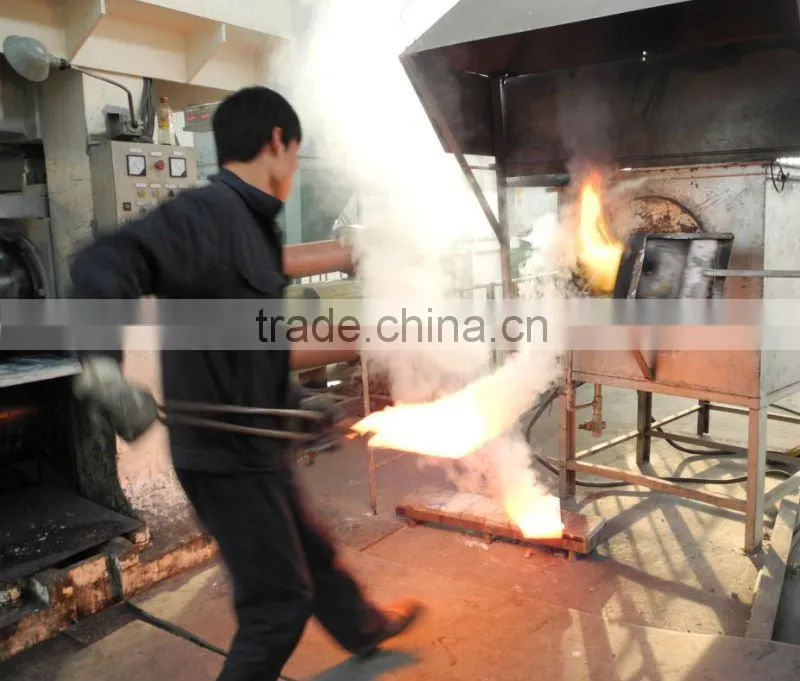

6.Production Process:
7. Porducts Composition:
| LUOYANG TUOJING TEST REPORE(MO≥ 99.95%) | ||
| Si<0.002 | K | S |
| Al<0.0006 | Na | C |
Fe<0.004 |
Ca<0.0015 |
O < 0.008 |
| Cu | Pb<0.0003 | N < 0.002 |
| Mg<0.0007 | Bi<0.0003 | |
| Ni<0.002 | Sn<0.0002 | |
| Mn | Sb<0.0005 | |
| P<0.001 | Cd<0.0003 | |
8.Application:
It is used for fabrication of stintering boats and lighting ,electric vacuum devices, power semiconductor devices, heat shield and heat bodies in high temperature furnace.
9. Other products:
| Product name | Brand | Size(mm) |
| molybdenum bar/rod | MO-1 | 0.8≤Dia≤130 |
| molybdenum wire | MO-1 | 0.1≤Dia≤0.8 |
| molybdenum crucible | MO-1 | according to client's needs |
| molybdenum special shape product | MO-1 | according to client's needs |
10.Ceritficate of Quality:
ducts show:
