Technical Parameters
| Items Type | Unit | Y27-200 | Y27-315 | Y27-315D | Y27-400 | Y27-500 | Y27-500D | Y27-500T | Y27-630 | Y27-800 | Y27-1000 | Y27-1500 | Y27-3000 | |
| Nominal Pressure | kN | 2000 | 3150 | 3150 | 4000 | 5000 | 5000 | 5000 | 6300 | 8000 | 10000 | 15000 | 30000 | |
| Knock-Out Force | kN | 360 | 450 | 450 | 510 | 570 | 570 | 810 | 810 | 930 | 1060 | 1150 | 2450 | |
| Slider Stroke | mm | 710 | 800 | 800 | 800 | 900 | 900 | 1100 | 1100 | 1000 | 1000 | 1200 | 1000 | |
| The Max. Height of Opening | mm | 1120 | 1250 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 1800 | 1800 | 2000 | |
| Nominal Pressure for Hydraulic Cushion | mm | 800 | 1250 | 1000 | 1600 | 2000 | 2000 | 2500 | 2500 | 4000 | 4000 | 4000 | 8000 | |
| Hydraulic Cushion Stroke | kN | 250 | 300 | 350 | 350 | 400 | 400 | 400 | 400 | 400 | 450 | 500 | 400 | |
| Speed of Slider | Downstream | mm/s | 130 | 150 | 150 | 180 | 180 | 180 | 150 | 150 | 150 | 250 | 200 | 200 |
| Working | mm/s | 13-23 | 8-14 | 6-14 | 13-23 | 10-18 | 10-18 | 8-14 | 8-15 | 10-24 | 8-15 | 15 | 5-8 | |
| Return | mm/s | 130 | 110 | 100 | 200 | 180 | 180 | 90 | 110 | 180 | 130 | 100 | 100 | |
| Speed of Hydraulic Cushion | Rising | mm/s | 60 | 40 | 50 | 60 | 45 | 45 | 30 | 35 | 50 | 35 | 50 | 40 |
| Size of Working Table | Left-Right | mm | 930 | 1260 | 2200 | 1300 | 1400 | 2000 | 2500 | 2500 | 3200 | 3000 | 3200 | 4000 |
| Front-Back | mm | 900 | 1200 | 1500 | 1300 | 1400 | 1600 | 1800 | 2200 | 2200 | 2000 | 2200 | 2500 | |
| Size of Hydraulic Cushion | Left-Right | mm | 600 | 900 | 1650 | 900 | 1050 | 1650 | 1950 | 1850 | 2550 | 2300 | 2400 | 3000 |
| Front-Back | mm | 600 | 900 | 900 | 900 | 1050 | 1200 | 1200 | 1650 | 1650 | 1400 | 1650 | 1800 | |
| Size of Machine | Front-Back | mm | 2720 | 3200 | 4600 | 3900 | 4050 | 5640 | 5826 | 4400 | 6400 | 6000 | 6500 | 8500 |
| Left-Right | mm | 2200 | 2200 | 3300 | 3600 | 3850 | 3100 | 2984 | 4000 | 3380 | 3200 | 4500 | 5000 | |
| Height above the Ground | mm | 3630 | 4200 | 4230 | 4530 | 5020 | 5250 | 5590 | 6100 | 6050 | 6000 | 7000 | 7600 | |
| Electric Motor Power | kW | 30 | 30 | 30 | 60 | 60 | 60 | 60 | 60 | 115 | 115 | 112 | 185.5 | |

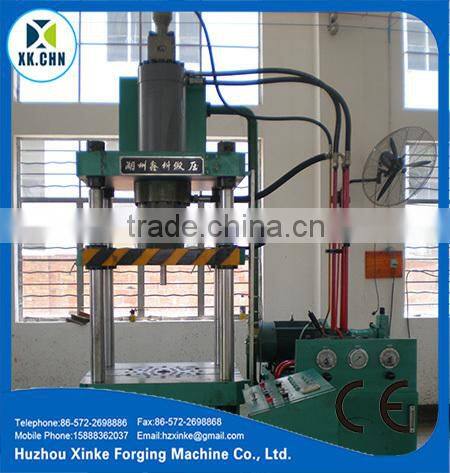

Y27 100t four-column sheet drawing hydraulic press
Characteristics:
1.Based on Computer Optimizing Structure Design. Four-Column type Hydraulic Press is with simple structure, economic and practical; The Gantry Type is with much high rigidity and precision, also electric load resistance performance.
2.Cartridge Foundation System equipped in hydraulic control system and below 550t, equipped in Electro-slider valve hydraulic system with high reliability and durability, small hydraulic impact, and minimum hydraulic impact design.
3.Electrical system controlled by PLC unit, with the features of compact, sensitivity, reliability and flexibility.
4.Three operation modes: Adjustment, Two-hand/single circle and Auto continuous(equipped with robots) operations
5.Under the choice of different actions, forming Preset Stroke Forming or Preset Pressure Forming Process, and cushion actions including Rest, Ejection or blankholding can be selected. Flange Connections is adopted in Hydraulic Plumbing System with good sealing performance and reducing leak point.
Applications:
Suitable for drawing, bending, forming, stamping and flanging processes, especially for the following fields:
1. Automobile parts productions: vehicle bodywork, brake disc, oil tank, chassis, rear axle and bumper, etc.
2. Household Electronic: Washing machine parts, electric cooker, TV set parts, refrigerator parts;
3. Kitchen utensils: kitchen sinks, pots, stainless steel articles and other containers;
4. others: tractor, motorcycle, aircraft and aerospace industry.
Options:
Moving Table; Proportional regulation for slide speed and force; Proportional regulation for cushion force; Cutting dampening system; Light curtain safety device; Oil heating/cooling unit; Industry touching screen monitor; Displacement sensor; Floating guide-way and rolling bracket for die exchange; non-recycling column slide device; Working area lighting.
More products :
About us:
Huzhou Xinke Forging Machine Co., Ltd is located in Huzhou Economic and Technology Development Zone-South west Branch, to the west of Huzhou Bus Station. It locates in the superiorly geographical position and transportation convenient! The company possesses a group of professional Engineer and machinist for designing and making Hydraulic Press. We have formed kinds of structure, such as Four Column, Gantry style, Single column, and Horizontal Type. Our products include Special Hydraulic Press, Single-action Hydraulic Stamping Press, Double-action Hydraulic Drawing Press, Mental Extrusion Hydraulic Press, Powder Extrusion Hydraulic Press and Motor Manufacturing Hydraulic Press, etc. We can make a set of Hydraulic Press, Hydraulic Control System and Hydraulic Power Station!
We can offer the low price and reliable products, and also we will full play our technique and process to design effective equipment. We also can modify and improve Hydraulic system! Through scientific management and all the staff unremitting efforts, Hydraulic products are with High Quality, Highly Reliability and suitable price.
Our aim:
Technical Creativity, Sincere Management, Meticulous Education, Common Harvest.
1. Promising quality managing system, fully Knowing customer’s needs, whole-heartly Satisfying customer’s requirements.
2.Call back on time for the requirements. Door to door Service, within 24 hour in Zhejiang Province; within 48 hour out of Zhejiang; Within 24 hour (excluding holidays) answering for foreign market.
3. Be responsible for products, doing lifelong service.
(1) Providing door to door installation, adjustment, training service;
(2) Holding products knowledge and technical training meeting every year.
