Supplier Eco-friendly Waterproof Well Insulated Sound Proof Fabric Acoustic Wall Panel

Name: Supplier Eco-friendly Waterproof Well Insulated Sound Proof Fabric Acoustic Wall Panel
Brand: chinsunboard
Price: USD $6 - 30 / Piece

FOB Price

USD $6 - $30 / Piece

500 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Ningbo
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

chinsunboard

Model Number:

Calcium Silicate Board

Product Description

Supplier Eco-friendly Waterproof Well Insulated

Sound Proof Fabric Acoustic Wall Panel

Calcium Silicate Board

Chinsun® Calcium Silicate Board is strong and flexible board composed of cement,refined ores,reinforced cellulose fiber as the main materials.It's made of autoclaved process under high temperature and pressure which generates a light-weight,durable and smooth-faced board for various applications of interior and exterior decoration.

It's 100% Non-asbestos and environmental friendly building product.The board is water-proofing and incombustible which makes it more popular in the modern building industry.

Benefits of Chinsun® Calcium Silicate Board

Specication and Product Date

Product Name	Sound Proof Fabric Acoustic Wall Panel
Raw Materials	Cellulose Fiber, Quartz Sand, Portland Cement
Standard Size	1220X2440MM / 1200X2400MM
Maxium Width	1250MM
Maximum Length	3660MM
Thickness	3.5-25MM;
Density	3 Series: 1.3-1.4G/CM3; 1.4-1.6G/CM3; 1.6-1.7G/CM3
Wet Expansion	≤0.23%
Water Absorption	≤26%
Incombustibility	Incombustible Class A1
Water Penetration	Back side without water drop after 24 hours
Flexural Strength	Air dried condition: ≥12; Saturated Condition: ≥8
Radioactivity	Decorative materials Class A
Asbestos	100% free of asbestos
Certification	ISO, CE, SGS
Packaging	Standard wooden pallet
Trade Terms	FOB, CNF, CIF
Payment Terms	T/T, Irrevocable L/C at sight
Delivery Time	Within 15 days after order confirmed
Main Characteristic	Environmental friendly materials
	Excellent Strength and toughness
	Waterproofing and fireproofing
	Antisepsis and moth-proofing
	Good acoustic insulation and weather resistance
	Good thermal and heat insulation
	Durability and long lifetime
Application	Cavity wall for interior partition
	High sound insulation requirement wall panel
	fireproof wall panel
	partation wall panel
	Light concrete grouting wall
	Ceiling board
	Perforated Board
	Aluminium lining board and insulation barriers for high-speed train
	Column coverage
	Lining panel
	Exterior siding/cladding panel
	Exterior wall thermal insulation decoration panel
	Interior/Exterior wall decoration panel
	Flooring; Loft interlayer,Container house, light steel villa
	Subay, tunnel baseboard, outdoor furniture board
	Thinner lining board for stone

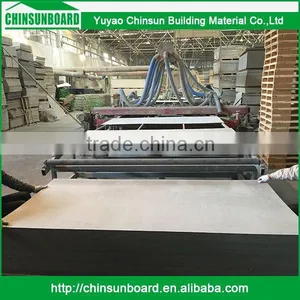

Production

Calcium Silicate Board Surface and Edge

Surface :Polished surface OR Sanded surface as your requirement

Edge:Squared edge/Tapered edge/Bevelled edge

Calcium Silicate Board Packaging Information

Loading Quantity For Middle Density Board

Size(mm)	Thickness(mm)	Weight(kg)	Loading quantity PCS/20CTN
12002400 12202440	5	20	1080
	6	24	900
	8	32	690
	9	36	600
	10	40	540
	12	48	450
	15	60	360
	18	72	300
	20	80	270

Loading Quantity For High Density Board

Size(mm)	Thickness(mm)	Weight(kg)	Loading quantity PCS/20CTN
12002400 12202440	5	24	930
	6	29	780
	8	38.5	588
	9	43	516
	10	48	468
	12	58	390
	15	72	312
	18	86.5	260
	20	96	234

Company Information

    Yuyao Chinsun Building Material Factory based in China and has been established for over 15 years and is one of the biggest manufacturers of fiber cement boards ,magnesium oxide boards ,calcium silicate boards under the trademark Chinsunboard.

    We are providing various of building materials which can be used for interior wall partition,exterior façade,ceiling and flooring etc.All of the products are 100% without asbestos and with CE marking.

    We control our quality and stability of products strictly with ISO9001 International Quality Control System and provide professional solution for various requirements form different customers.

Our Project

Why Choose Us

WHY so many customers choose Our Sound Proof Fabric Acoustic Wall Panel ?

Better Quality!Better Price!Better Shipping!

1.Quality Control

Sound Proof Fabric Acoustic Wall Panel
We make quality control for each item separately.Shipping department checks each item before packing,totally avoiding manufacturing defects.

2.Packing

Sound Proof Fabric Acoustic Wall Panel
We use strong and fumlgated wooden pallet to be sure that ordered items will reach you in perfect confition.

3.Production Facility&Certificate

Sound Proof Fabric Acoustic Wall Panel
Advanced testing&production equipments to precisely guarantee our product quality

4.Safe Shipping

Sound Proof Fabric Acoustic Wall Panel
Shipping method by sea,we establish long terms business relations with many big shipping company for the passed decade.We also provide B/L number and tracking website after ship on board.

5.Our Service

Sound Proof Fabric Acoustic Wall Panel
We're dedicated to give you the best service possible and we'll prove it if you're not completely satisfied,we'll do our best to correct the problems.

Please feel free to contact us if you need further information of our product introduction and technical properties,etc.

Contact Us

Yuyao Chinsun Building Material Factory: Contact nameSccot Hu; Phone86-574-55863536; AddressNo. 18, Jianmin North Road, Binhai New Town, Yuyao Economic Development Zone
