Hydraulic Hot Moulding Press
- 250 Set / Sets per Month
- Shanghai
- T/T
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | CNC | Power Source: | Hydraulic |
Place of Origin: | Zhejiang, China | Brand Name: | Xinke | Model Number: | HY61 |
Power(W): | 22kW-111kW | Weight: | 200t-1250t | Certification: | ISO9001-2000 |
Product Description
Specifications
Hydraulic Hot Moulding Press1,Computer optimized design
2, high direction precision
3, eccentric load resistance
Name: Hydraulic Hot Moulding Press
Characteristics of Hydraulic Hot Moulding Press:
1,Frame structure with small working table, High body strength, economic and practical
2,Cartridge Valve Integrated System equipped in hydraulic control system, and General press below 500t, equipping in hydraulic slider valve control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design
3, Independent electrical control system adopted Japanese imported Mitsubishi PLCwith reliability, intuitive movement and convenient amendment
4, Adopting Button common control with two operation ways: adjustment or two-hand/single cycle operation
5, Preset Stroke Forming or Preset Pressure Forming process can be selected. High control precision, especially for extrusion forming of shaft parts and tooth parts
Apllications of Hydraulic Hot Moulding Press:
Suitable for extrusion and forming of shaft parts, tooth parts and plate type parts with high forming precision, saving material, and also suitable in heating extrusion industry if equipped heating system
Technical Specifications of Hydraulic Hot Moulding Press
Item Type | HY61-200 | HY61-315 | HY61-400 | HY61-500 | HY61-630 | HY61-800 | HY61-1000 | HY61-1250 | ||
Nominal Pressure | kN | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | |
Knock-out force | kN | 360 | 300 | 350 | 570 | 630 | 970 | 660 | 1520 | |
Below Ejecting Force | kN | 400 | 500 | 630 | 630 | 800 | 1000 | 1000 | 1500 | |
The Max. working Pressure of Hydraulic | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
Main Cylinder Stroke | mm | 350 | 350 | 350 | 400 | 450 | 500 | 500 | 900 | |
Stroke of Below Ejector Cylinder | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 300 | |
The Max. Opening between Slider and Working Table | mm | 600 | 600 | 650 | 700 | 800 | 850 | 850 | 1500 | |
Active Area of Working Table | mm×mm | 580x700 | 620×700 | 720x720 | 720x800 | 800x880 | 860x920 | 860x1000 | 1300x1300 | |
Speed of Slider | Quick Descend | mm/s | 300 | 300 | 350 | 350 | 280 | 300 | 300 | 180 |
Slow Descend | mm/s | 12-30 | 10-25 | 10-25 | 10-25 | 10-23 | 10-22 | 10-20 | 8-24 | |
Return | mm/s | 160 | 250 | 250 | 210 | 180 | 200 | 280 | 200 | |
Speed of Ejector | Ejecting | mm/s | 150 | 150 | 150 | 100 | 75 | 120 | 110 | 120 |
Return | mm/s | 230 | 200 | 200 | 130 | 110 | 160 | 200 | 130 | |
Main Electric Motor Power | kW | 22 | 30 | 37 | 44 | 60 | 74 | 74 | 111 | |
Weight | t | 8 | 10 | 12 | 14 | 21 | 25 | 28 | 45 |

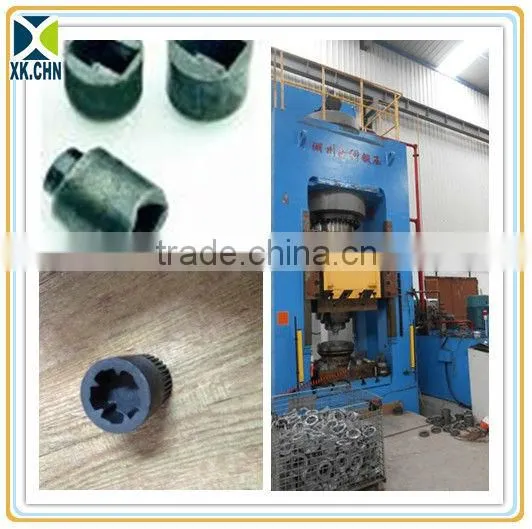

The products of Hydraulic Hot Moulding Press
