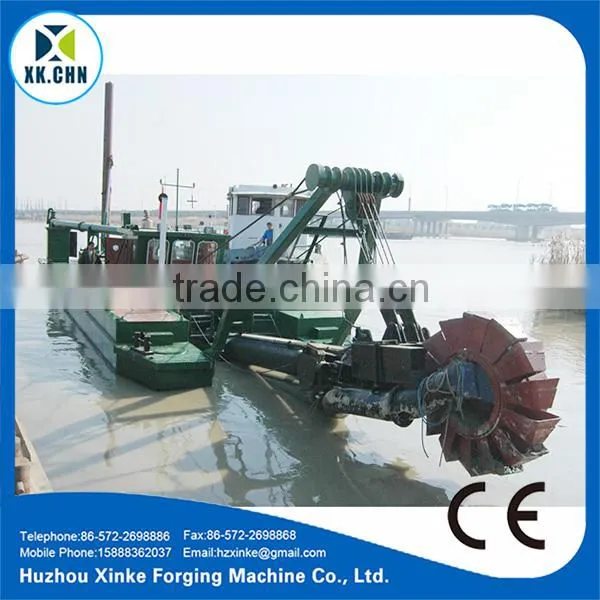

2100pro-Enviromental Hydraulic System Cutter Suction Dredger for Sale
2100 pro-enviromental cutter suction dredger:
Navigation Area BGrade
Dredger Length 21.20m Length overall 28.30m Dredger Width 5.61m
Main floating box 15.50m×3.10m×1.50m
Side flowating box F:9.00m×1.20m(1.50m)×1.50m×2
B:9.50m×1.20m×1.50m×2
Moulded depth 1.50m
Draft mean 1.05m
The engine is equipped with CMI oil enginee, power: 351kW;
Auxiliary engine is equipped Weichai oil engine, power: 120kW
The max. Dig depth 8.0m
Bottom plating, side plating, and deckhouse are applied δ=6( Wu steel), and other structural plating ( An steel, Beitai) is according to the drawings.
Bucke-wheel D2100-70 Diameter: 2100mm,80KW,
pro-enviromental cutter D1600-70,Diameter 1600mm,70KW
one set of 2.50m Positioned trolley Stroke: 2.50m
Dredger Pump type: 1200-60
Diameter of mud dischage: 350mm,
Water flow: 1200m3/h
Gear case box: JL250
The dredger is applied hydraulic control system, the elements are applied Taiwan’s products. Valves use broad and domestic brand products
