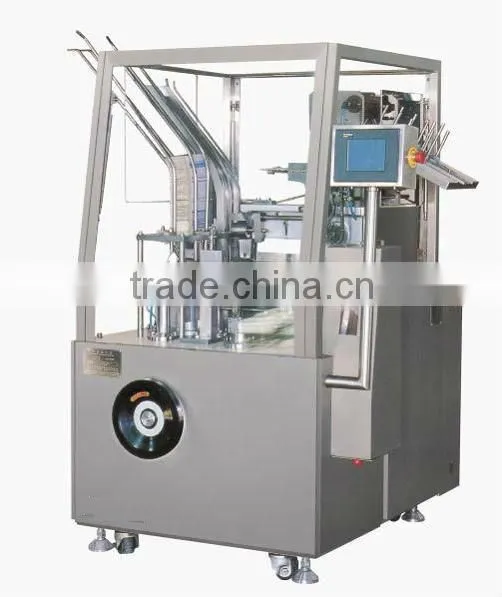

Help CenterJDZ-90 Automatic Vertial Cartoning Machine
Related Products
-
JDZ-260 Automatic High Speed Cartoning MachineUS$ 1 - 1MOQ: 1 Set -
JDZ-100P Automatic Horizontal Cartoning MachineUS$ 1 - 1MOQ: 1 Set
-
JDZ-120P Automatic Vertical Cartoning MachineUS$ 1 - 1MOQ: 1 Set
-
JDZ-100 Automatic Cartoning MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
JDZ-120 Automatic Vertical Cartoning MachineUS$ 1 - 1MOQ: 1 Set
Specifications
Automatic Vertial Cartoning Machine1. General Description
This machine is suitable for automatic feeding blister into carton, Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
2.Technical Data
Weight & Dimensions
Type |
JDZ-90 |
Dimensions in mm |
1265mm×1135mm×1800mm (L×W×H) |
Weight in kg |
1000 |
Output & Speed
Steady production speed |
30-90 cartons/min |
Unfold Leaflets(optional )
Grammage |
Between (60-70)g/m2 |
Size range |
(80-250) ×(90-170)mmm (L×W) |
Fold range |
(1-4 )fold |
Notice: The leaflet can be folded by the machine | |
Carton and blister
Grammage |
Between( 250-350)g/m2 |
Carton Size mm |
(65-125) x(35-90) x(12-60)mm |
Utilities
Standard power supply |
220V – 50Hz |
Power consumption in KW |
0.75 |
Air consumption |
120-160L/min |
Compressed Air Pressure |
0.6MPa |
Noise |
<70 dB |
3.Functions and Options
The cartooning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
No suction carton by missing blister
No suction carton by missing leaflet
Automatically displaying device for trouble, speed and finished products counting
Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
Adopt human-machine operation system.
International famous brand of electric components such for PLC touch screen, frequency inverters, etc
Stable performance, operation is easy Controls
Sensors
Blister presence detection sensor
Leaflet presence detection sensor
Carton present derection sens
|
4.Main Component list
| ||||
No |
Name |
Model and specification |
Place of Origin or Brand |
Qty |
1 |
Main motor |
R17DM80N4 0.75Kw/220V |
Germany SEW |
1 |
2 |
Frequency Converter |
VLT2907PT4 |
Denmark Danfoss |
1 |
3 |
Touch screen |
GP37WZ-BG41-24V |
Japan Proface |
1 |
4 |
PLC |
S7-200 CPU224 |
Germany Siemens |
1 |
5 |
D/A Block |
EM232 |
Germany Siemens |
1 |
6 |
Photoelectric Switch |
VTE18-4N2212 |
Germany Shike |
3 |
7 |
Photoelectric Switch |
WT100-N1439 |
Germany Shike |
1 |
8 |
Sensor Proximity Switch |
1M12-04NNS-2W1 |
Germany Shike |
6 |
9 |
Power Switch |
T0-2-1/EA |
Germany Queensway Moeller |
1 |
10 |
Switch Power |
S-50-24 |
Taiwan Mingwei |
1 |
11 |
Moving Guider |
BRH25B1L340NZO |
Taiwan ABBA |
1 |
12 |
Filter Reduce Valve |
AW30-03BE |
Japan SMC |
1 |
13 |
Electromagnetic Valve |
VQ21A1-5G-C8-F |
Japan SMC |
4 |
14 |
Vacuum occur device |
ZH20DS-03-04-04 24V |
Japan SMC |
2 |
15 |
Silencer |
AN402-04 |
Japan SMC |
2 |
16 |
Coder |
E6B2-CWZ6C |
Japan Omron |
1 |
17 |
Relay |
MY2NJ 220VAC |
Japan Omron |
2 |
18 |
Breaker |
DZ47-D10/2P |
China Yahua |
1 |
19 |
Servo motor |
MHMD022PIU/MSMDO82PIG |
Japan Panasonic |
1 |
