Hot selling VFD007S11A 110V single phase 750w delta vfd inverter drives
Features
General Purpose AC Micro Drive. Delta Electronics most cost effective general purpose drive. The VFD-S series drive is famous for its low-noise carrier frequency feature and easy to use keypad.
*Output frequency 0.1-400 Hz
*Adjustable V/f curve
*Carrier frequency up to 10 kHz
*Built-in PID feedback control
*Built-in MODBUS communication, baud rate up to 38400 bps
*Momentary power failure or fault restart
*Built-in Sleep / Revival function
*Support communication module (DN-02, LN-01, PD-01)
Applications
Air conditioner for large buildings; water supply system for large buildings; temperature control of middle/large oven; webbing loom; packing machine; conveyer belt; fan of drying machine, etc.
Single phase 110V series specifications
Model Number VFDXXXS |
002 |
004 |
007 |
|
Max. Applicable Motor Output (kW) |
0.2 |
0.4 |
0.75 |
|
Max. Applicable Motor Output(HP) |
0.25 |
0.5 |
1.0 |
|
Output Rating |
Rated Output Capacity(kVA) |
0.6 |
1.0 |
1.6 |
Rated Output Current(A) |
1.6 |
2.5 |
4.2 |
|
Maximum Output Voltage(V) |
3-phase proportional to twice the input Voltage |
|||
Output Frequency (Hz) |
0.1~400Hz |
|||
Carrier Frequency (kHz) |
3-10 |
|||
Input Rating |
Rated Input Current(A) |
Single Phase |
||
6 |
9 |
16 |
||
Rated Voltage, Frequency |
Single phase 100-120V, 50/60Hz |
|||
Voltage Tolerance |
+-10%(90~132V) |
|||
Frequency Tolerance |
+-5%(47~63Hz) |
|||
Cooling Method |
Natural |
|||
Weight(kg) |
1.3 |
1.5 |
2.0 |
|

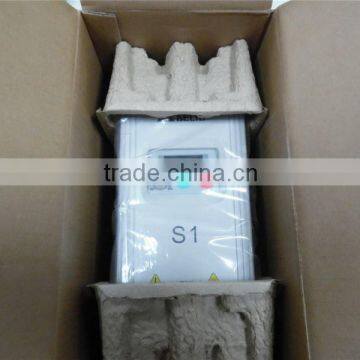

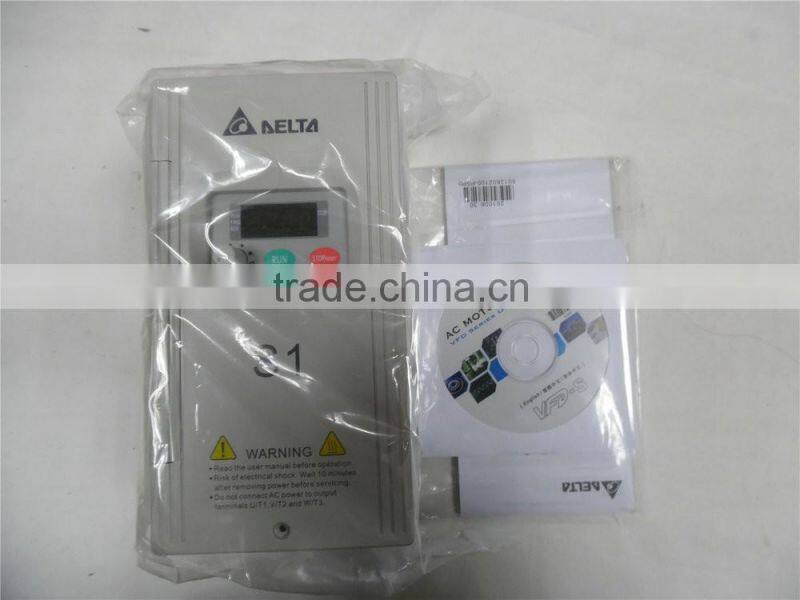

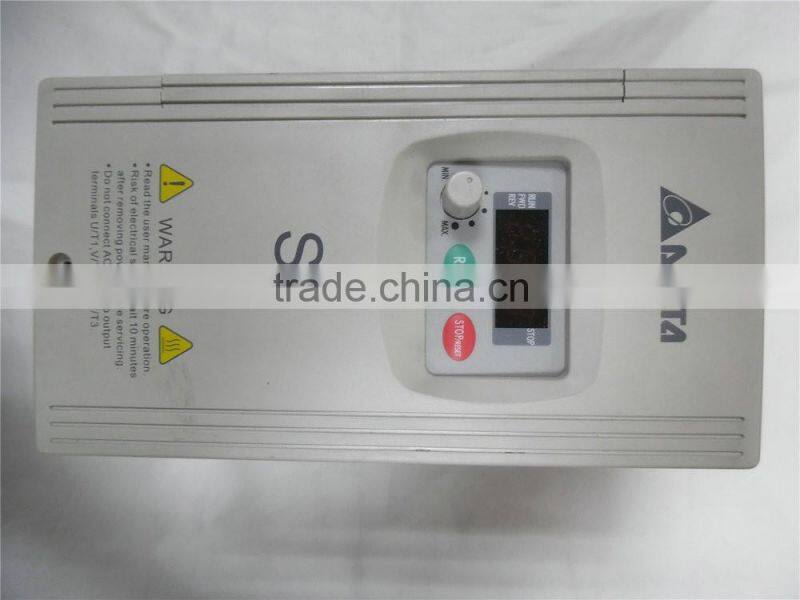

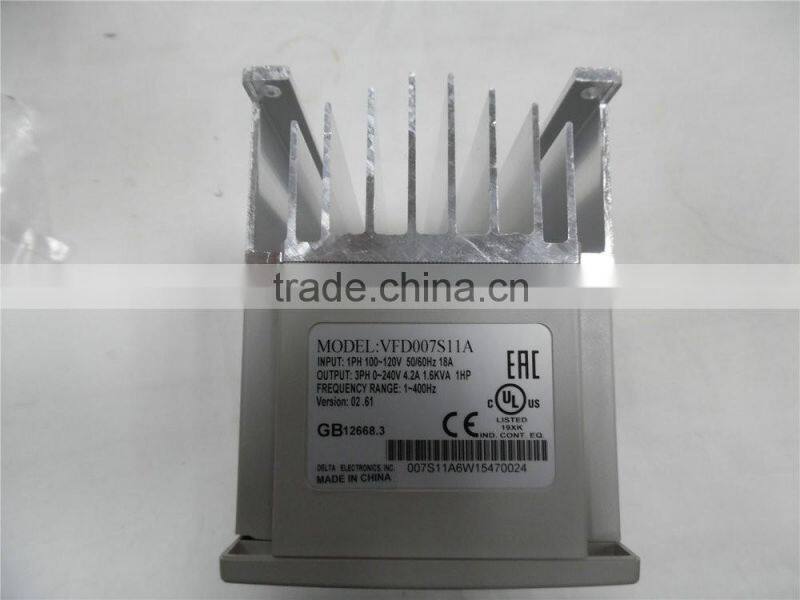

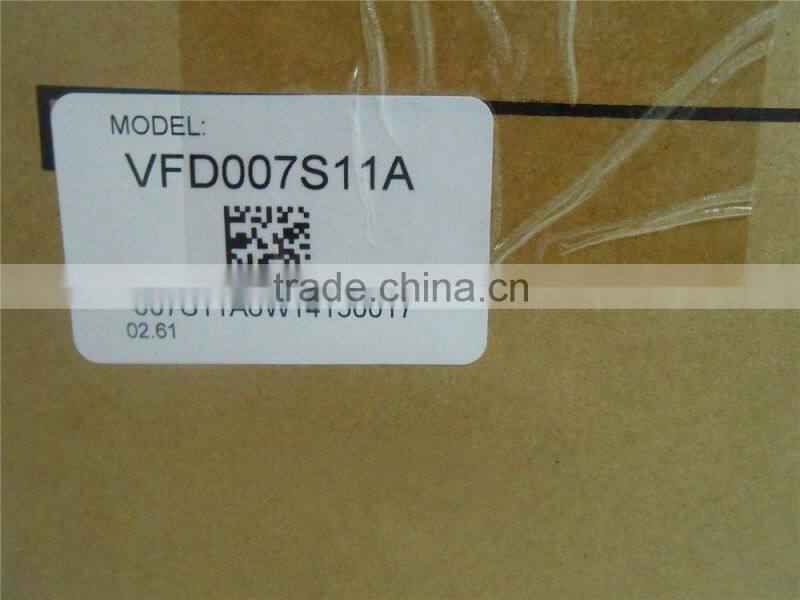

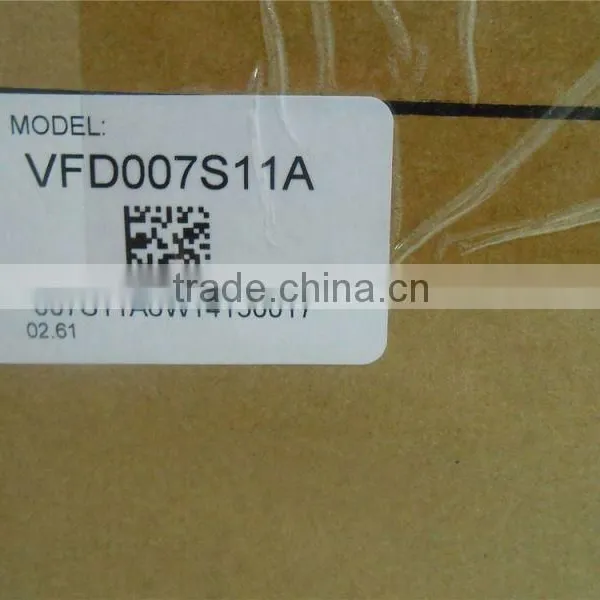

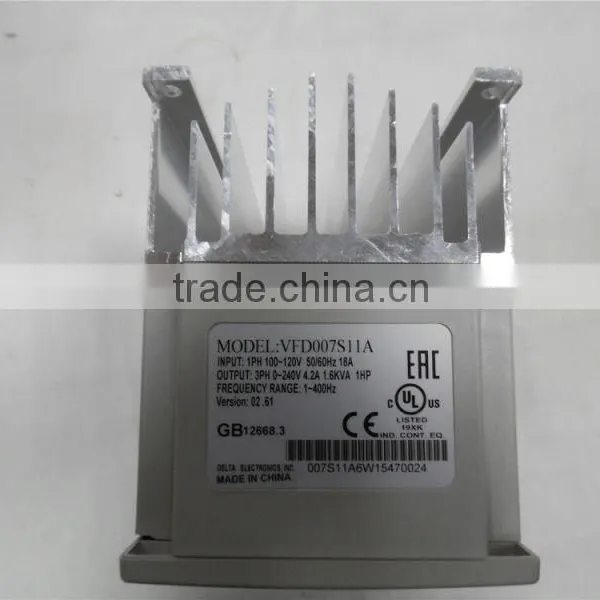

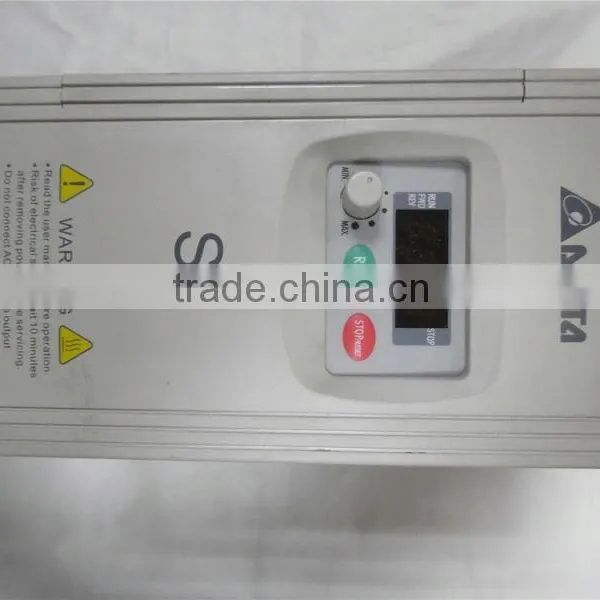

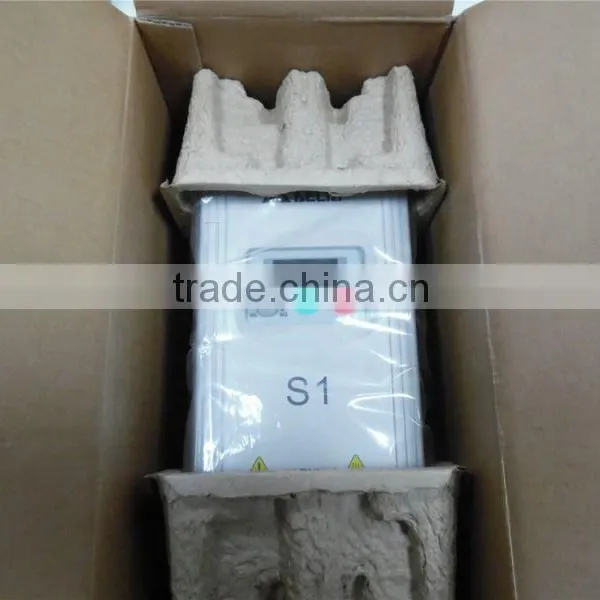

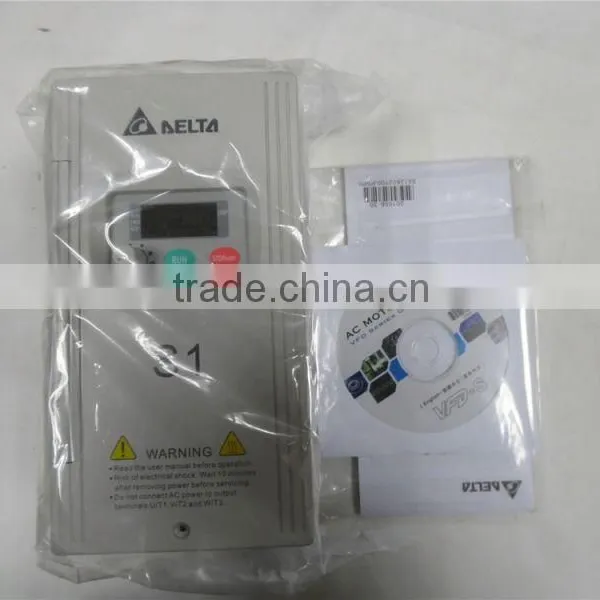

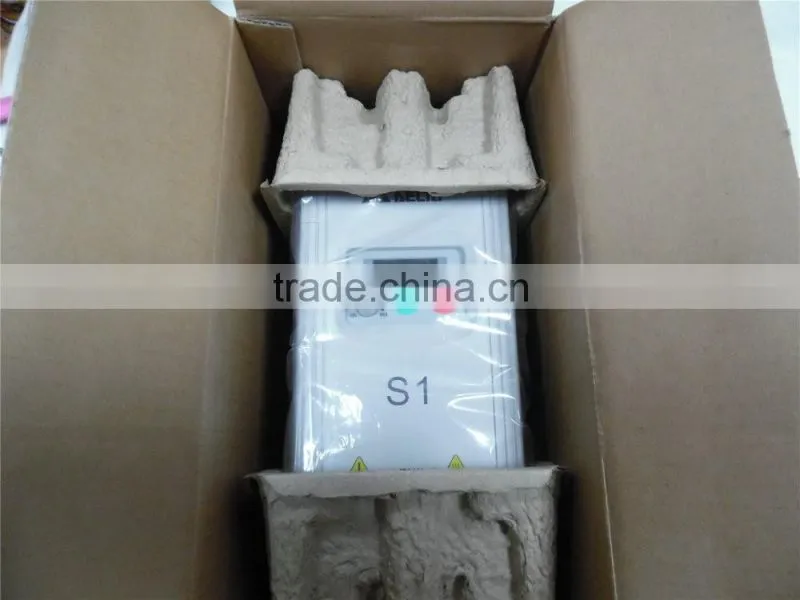

Product photos
Delivery details:
1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.
Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
