3ND2283-600 leadshine 3 phase nema 43 ac motor controller 220v
3ND2283-600 is Lemire's latest use of a precision current control technology designed high subdivision stepper motor drives, suitable for driving 86-110 type of various brands of three-phase hybrid stepping motor. As a result of the advanced anti-noise control method can greatly reduce noise and vibration motor operation, making noise stepper motor operation and stability close to the level of the servo motor. And most other segments drive the market compared to the stepper motor and drives the heat drop of 15-30%.
Features
High performance, low price, low noise, high speed torque
AC servo drive principle, with AC servo operation characteristics, three-phase sinusoidal current output
Supply voltage up 150-220VAC
Peak output current up to 8.2A (mean 5.8A)
Segmentation accuracy up to 16 stalls optional
3,6 lines can drive three-phase stepper motor
Overvoltage, undervoltage, short circuit, overheating protection function
Optically isolated input differential signal, impulse response frequencies up to 250KHz
With single / dual pulse function, fault signal output function
With a dynamic braking function
Specifications
|
Unit |
Min |
Rated |
Max |
Output Current |
A |
2.0 |
- |
8.2 |
Input supply voltage |
VAC |
150 |
180 |
220 |
A current control signal input |
mA |
7 |
10 |
16 |
Stepping pulse frequency |
KHz |
0 |
- |
250 |
Pulse Low Time |
μs |
2 |
|
|
Insulation Resistance |
MΩ |
500 |
|
|

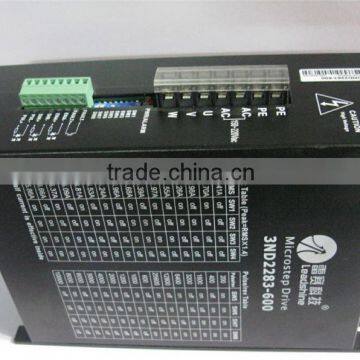

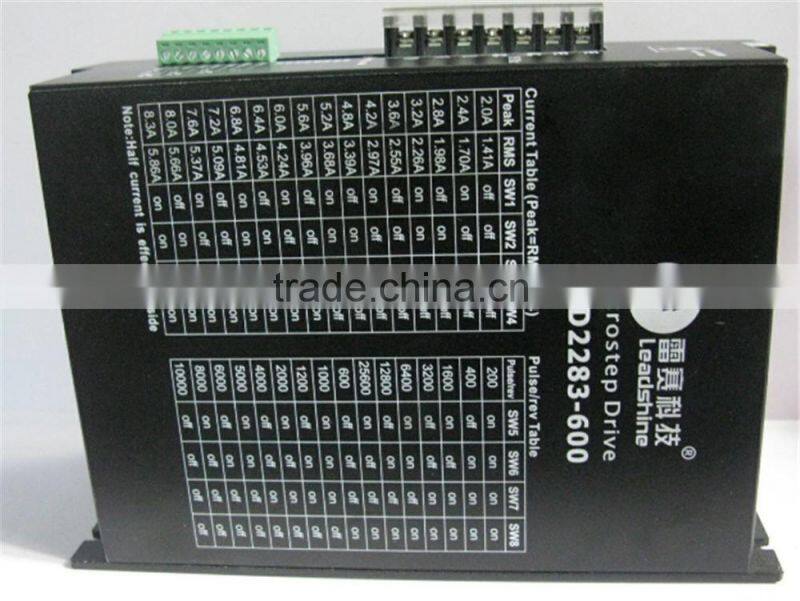

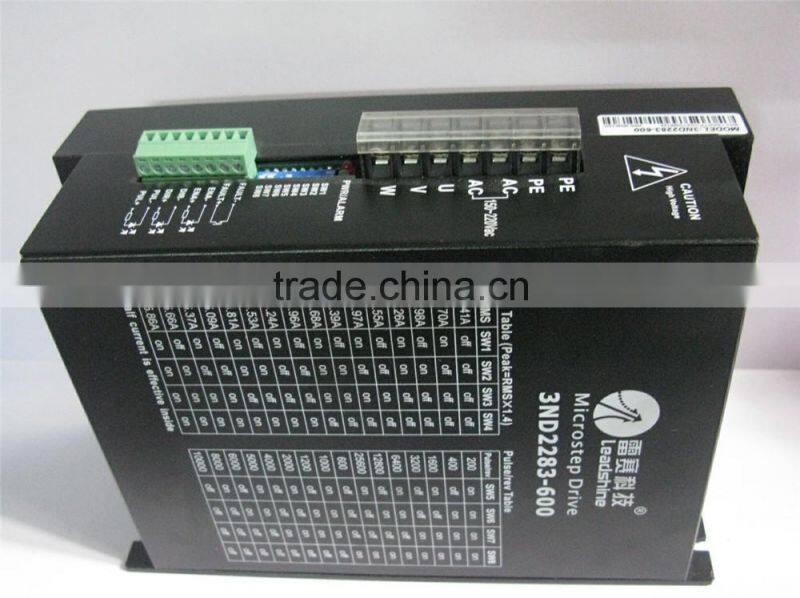

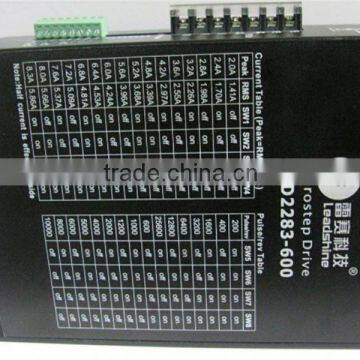

Product photos
Application
For a variety of medium-sized automation equipment and instruments, such as: engraving machine, labeling machine, cutting machine, laser phototypesetting, plotters, CNC machine tools, handling the devices. In user expectations low vibration, low noise, high speed, high-precision equipment applications excellent special effects.
Similar items
| ND1182 | 2ph | 0.7~8.2A | 70~150VAC | Matching Nema34 42 Motor | |
| ND2282 | 2ph | 0.7~8.2A | 90~220VAC | Matching Nema34 42 52 Motor | |
| 3ND583 | 3ph | 2.1~8.3A | 18~50VDC | Matching Nema23 34 Motor | |
| 3ND583B | 3ph | 2.2~8.3A | 20~50VDC | Matching Nema23 34 Motor | Laser Cutting Machine |
| 3ND1183 | 3ph | 2~8.2A | 80~150VAC | Matching Nema34 42 Motor | |
| 3ND2283 | 3ph | 2~8.2A | 150~220VAC | Matching Nema34 42 Motor | |
| 3ND2283-600 | 3ph | 2~8.2A | 150~220VAC | Matching Nema43 52 Motor |
