110J18135EC-1000+2HSS2208H Toauto nema 42 stepper motor cheap stepper motor with encoder
Main application fields
Advertising industry, Engraving, packaging, lasers, electron industry, medical industry, Printing industry, woodworking, machinery industry, Ceramic Industry, stone industry and so on.
Brief introduction
2HSS two phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop,speed loop and position loop.This product has the advantage of both step and servo system, is a highly cost-effective motion control products.
Characteristic
*Full closed loop control, motor encoder with 1000 line, close to 100% of the torque output
*Segment set range is 2-256, fast response, high speed, light isolation fault alarm output interface ALM
*Current loop bandwidth (-3 db) 2 KHZ (typical), speed loop bandwidth 500 hz (typical), the position loop bandwidth 200 hz (typical)
*RS232 serial port communication available to download or change parameters; Over-current, over-voltage, undervoltage, overheating, speeding, differential protection; Alarm clear input ENA
Drive specification
| Model | Current | Voltage | Matched motor | Weight | Dimension | Control signal |
| 2HSS57 | 0-6A | DC(24-48V) | 57.86mm | 0.27kg | 118*75.5*34 | Differential |
| 2HSS86 | 0-6A | DC(24-80V) | 57.86mm | 0.57kg | 150*97.5*53 | Differential |
| 2HSS86H | 0-7A | DC(40-110V) | 57.86.110mm | 0.60kg | 150*97.5*53 | Differential |
| AC(60-80V) | ||||||
| 2HSS1108H | 0-8A | AC(80-220V) | 86.110mm | 1.50kg | 181*140*70 | Differential |
| 2HSS2208H | 0-8A | AC(110-240V) | 110.130mm | 1.50kg | 181*140*70 | Differential |
Motor specification
| Model | Step Angle | Holding Torque | Current / Phase | Resistance / Phase | Inductance / Phase | Detent Torque | Rotor Inetria |
| 57J1854EC-1000 | 1.8 | 0.9NM | 2.8A | 0.4 | 1.2 | 400 | 280 |
| 57J1880EC-1000 | 1.8 | 2.2NM | 4A | 0.35 | 1.8 | 700 | 480 |
| 86J1880EC-1000 | 1.8 | 4.5NM | 4A | 0.4 | 3.5 | 1300 | 1400 |
| 86J1895EC-1000 | 1.8 | 7NM | 5A | 0.37 | 3.3 | 2000 | 1850 |
| 86J18118EC-1000 | 1.8 | 8.5NM | 5A | 0.44 | 4.4 | 2500 | 2700 |
| 86J18156EC-1000 | 1.8 | 12NM | 6A | 0.72 | 5.5 | 4000 | 4000 |
| 110J18135EC-1000 | 1.8 | 12NM | 6A | 0.78 | 12.7 | 3000 | 10000 |
| 110J18160EC-1000 | 1.8 | 18NM | 6.5A | 0.87 | 15.5 | 6000 | 12350 |
| 110J18190EC-1000 | 1.8 | 20NM | 6.8A | 0.97 | 17.5 | 7500 | 13800 |

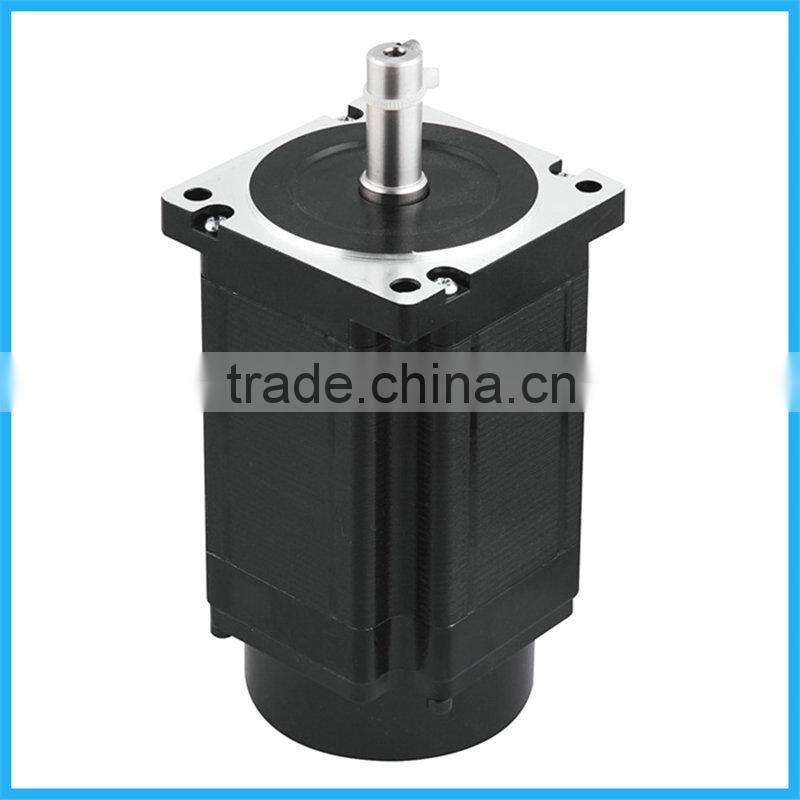

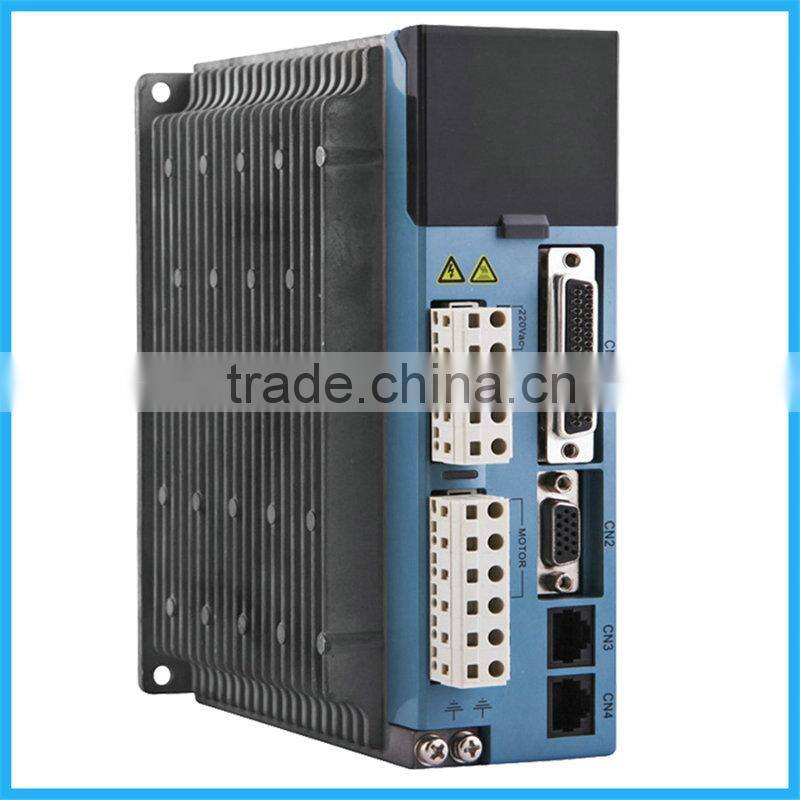

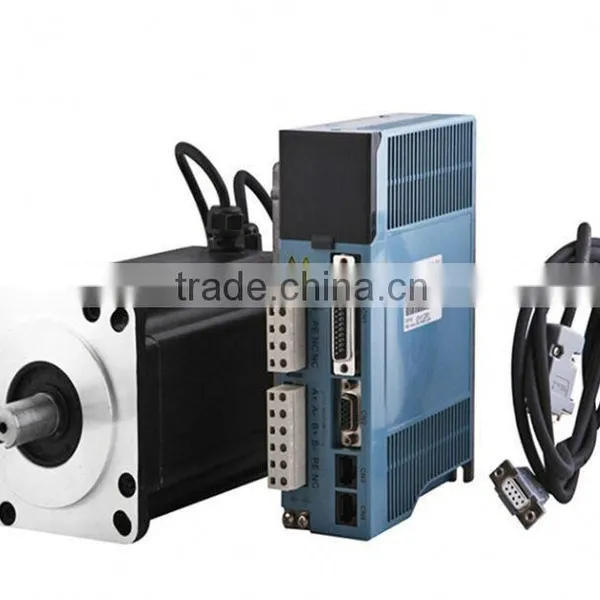

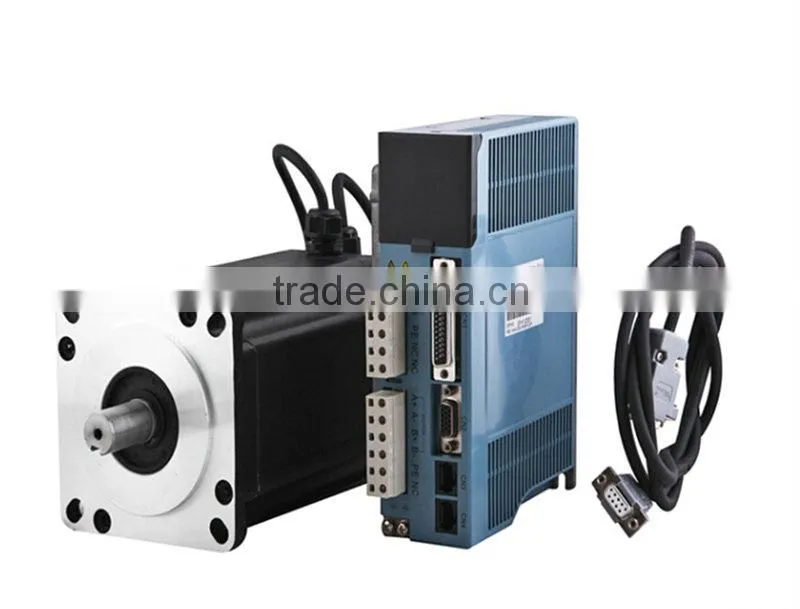

Product photos
Similar items
| Stepper set | Name | Phrase | Motor frame 1 | Motor frame 2 | Holding torque | Current |
| 57J1854EC-1000+2HSS57 | closed loop Stepper Motor+Drive Kit | 2ph | 57mm | NEMA23 | 1NM | 4A |
| 57J1880EC-1000+2HSS57 | closed loop Stepper Motor+Drive Kit | 2ph | 57mm | NEMA23 | 2.2NM | 5A |
| 86J1880EC-1000+2HSS86H | closed loop Stepper Motor+Drive Kit | 2ph | 86mm | NEMA34 | 4.5NM | 4A |
| 86J18118EC-1000+2HSS86H-A-5/24 | closed loop Stepper Motor+Drive Kit | 2ph | 86mm | NEMA34 | 8.5NM | 5A |
| 86J18156EC-1000+2HSS86H-A-5/24 | closed loop Stepper Motor+Drive Kit | 2ph | 86mm | NEMA34 | 12NM | 6A |
| 110J18135EC-1000+2HSS1108H | closed loop Stepper Motor+Drive Kit | 2ph | 110mm | NEMA42 | 12NM | 6A |
| 110J18160EC-1000+2HSS1108H | closed loop Stepper Motor+Drive Kit | 2ph | 110mm | NEMA42 | 18NM | 6.5A |
| 110J18190EC-1000+2HSS1108H | closed loop Stepper Motor+Drive Kit | 2ph | 110mm | NEMA42 | 20NM | 6.8A |
| 130J18205EC-2500+2HSS2208H | closed loop Stepper Motor+Drive Kit | 2ph | 130mm | NEMA54 | 28NM | 7.5A |
