Help CenterHigh Quality Digital Lcd Display 7.2" Inch Touch Screen TFT Module Supplier's Choice
Related Products
-
Pretty Anti Glare TFT LCD 6.5" Inch Custom Tft Lcd Diaplay Modules for Customized Application Supplier's ChoiceUS$ 27 - 40MOQ: 1 Piece -
TFT LCD 3.9 Inch 480*128 Resolution Bar Type Custom Transparent Tft DisplayUS$ 16 - 40MOQ: 100 Pieces
-
Small Size Bar Type TFT LCD 2.9 Inch 320*120 Tft Lcd Monitor With RGB/MCU/SPI InterfaceUS$ 1 - 20MOQ: 1 Piece
-
Bar Type Color TFT LCD 4.6 Inch Tft Lcd Monitor 800*320 Resolution With High Brightness Supplier's ChoiceUS$ 1 - 40MOQ: 100 Pieces
-
TFT LCD 8.8 Inch Special Bar Type Lcd Monitor for Customized ApplicationsUS$ 51 - 80MOQ: 100 Pieces
Gneral specifications
Characteristics |
Size |
7.2 inch |
Resolution |
1280(horizontal)*384(Vertical) |
|
Interface |
RGB 18bit |
|
Connect type |
Connector |
|
Color Depth |
262.144k |
|
Technology type |
a-Si |
|
Display Spec. Pixel pitch (mm) |
TBD |
|
Pixel Configuration |
R.G.B. Vertical Stripe |
|
Display Mode |
Normally White |
|
Driver IC |
TBD |
|
Surface Treatment |
HC |
|
Viewing Direction |
12 O'CLOCK |
|
Mechanical |
LCM (W x H x D) (mm) |
186.18*67.35*6.6 |
Active Area(mm) |
173.76 x52.13 |
|
With /Without TSP |
Without TSP |
|
Weight (g) |
TBD |
|
LED Numbers |
68 LEDs |

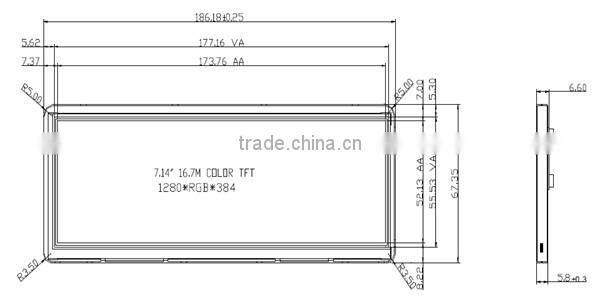

Drawing for Factory direct 7.2" inch Touch Screen TFT Module Displays
Packaging Details: Carton size:385X155X227 mm ,300 pcs one carton
Delivery Time:3-5 weeks
1. Custominzed Touch Screen Displays
2. Do OEM &ODM fro TFT LCD Module pannel.
3. Good quality and quick reply.
Basic information
1.Was found in 2009, 8000 square meters
2.Strong R&D , do OEM & ODM
3.Customer Group : Hardon, HITACHI, ABB Group , Midea Group, CHIGO Group, QSC etc.
4.All goods we export will pass strict international AQL inspection
5. Professional in TFT LCD, HMI and custominzed Touch Screen Displays
Our Workship
The Exhibiton that we attend
Sale Volume
Contact us:
CDTech (H.K.) Electronics Limited
Tel: 86-755-23032206
Fax: 86-755-23032209
E-mail: sales@CDTechHK.com
Website:
http://cdtechhk.en.china.cn/
Address: 7F, Blgd 5, Chaxi Industrial Park, Huafeng 1st Technology Park,
Gushu, Bao'an District, Shenzhen518126, China
1. Can you support us with CTP’s? G+G? or OGS-CTP?
Yes, we can support, G+G and the OGS both is OK.
2. How you will glue the TFT to the OGS? By OCA or DST?
OCA and DST both OK, it depends on the customer.
