Hot selling 2-phase M542 leadshine stepper motor driver controller
The M542 V2.0 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.
Features
Extremely cost-effective
Good high speed performance
Supply voltage up to +50 VDC
Output current up to 4.2A
Self-adjustment technology
Pure-sinusoidal current control technology
Pulse input frequency up to 300 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Short-voltage, over-voltage, over-current protections
Specifications
| Model | Phase | Control Type | Power | Matching Motors | Configuration | ||
| Voltage(V) | Current(A) | (NEMA) | |||||
| AC | DC | Peak | |||||
| M542 | 2 | Step & Dir | - | 24 - 50 | 1.0 - 4.2 | 17, 23 | DIP switch |
| M542-05 | 2 | Step & Dir | - | 24 - 50 | 1.0 - 5 | 17, 23 | DIP switch |
| M550 | 2 | Step & Dir | - | 20 - 50 | 1.2 - 5.0 | 14, 17, 23 | DIP switch |
| M752 | 2 | Step & Dir | - | 20 - 70 | 1.26 - 5.2 | 23, 34 | DIP switch |
| M860 | 2 | Step & Dir | - | 24 - 80 | 2.4 - 7.2 | 17,23,34 | DIP switch |
| MA860 | 2 | Step & Dir | - | 18 - 50 | 2.4 - 7.2 | 34, 42 | DIP switch |

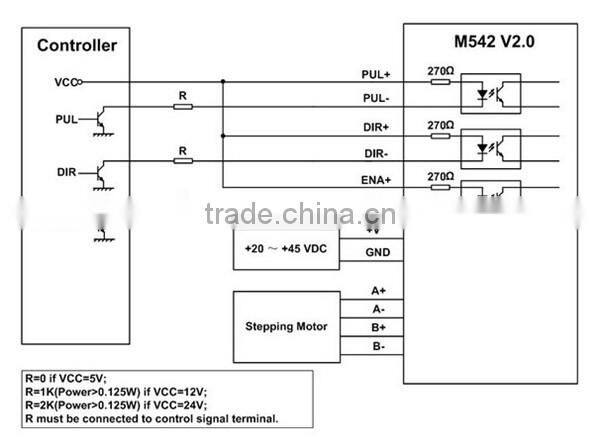

Electronic connection
Product photos
Application
For a variety of medium-sized automation equipment and instruments, such as: engraving machine, labeling machine, cutting machine, laser phototypesetting, plotters, CNC machine tools, handling the devices. In user expectations low vibration, low noise, high speed, high-precision equipment applications excellent special effects.
Similar items
| Model | Phase | Current | Voltage | Matching motor |
| M415B | 2ph | 0.21~1.5A | 18~36VDC | Matching Nema14 15 17 Motor |
| M542 | 2ph | 1~4.2A | 24~50VDC | Matching Nema17 23 Motor |
| M542-05 | 2ph | 1~5A | 24~50VDC | Matching Nema17 23 Motor |
| M752 | 2ph | 1.26~5.2A | 20~70VDC | Matching Nema23 34 Motor |
| M860 | 2ph | 2.4~7.2A | 24~80VDC | Matching Nema23 34 Motor |
| MA335B | 2ph | 1.3~3.5A | 10~29VAC | Matching Nema17 23 Motor |
| MA860 | 2ph | 2.4~7.2A | 18~60VAC | Matching Nema23 34 Motor |
Delivery details:
1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.
Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
