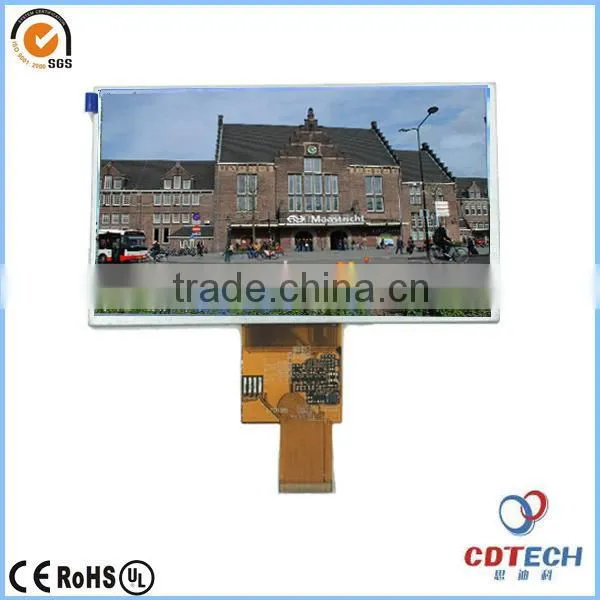

High quality 800x480 resolution 7 inch TFT capacitive LCM
- 500000 Piece / Pieces per Month
- HK
- T/T Credit Card PayPal
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S070WV95-35 |
| Type: | TFT |
Product Description
Product Description
Feature | Item | High quality 800x480 resolution 7 inch TFT capacitive LCM |
Characteristics | Size | 7 inch |
Resolution | 800(horizontal)*480(Vertical) | |
Interface | RGB 24bit | |
Connect type | Connector | |
Color Depth | 262k | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.192 x 0.1805 | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally White | |
Driver IC | HX8264-D/ HX8664-B | |
Surface Treatment | 3H | |
Viewing Direction | 6 O’clock | |
Mechanical | LCM (W x H x D) (mm) | 165*104*5.7 |
Active Area(mm) | 154.08*85.92 | |
With /Without TSP | With | |
Weight (g) | TBD | |
LED Numbers | 27 leds |

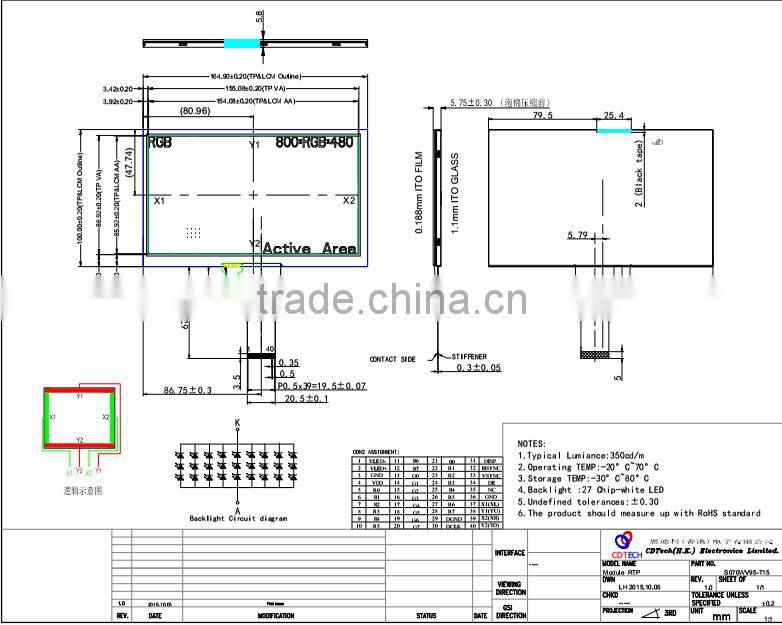

Drawing for Product
Our Company:
CDTech Products Pictures
Our Workshops
The Exhibition that we attend
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
