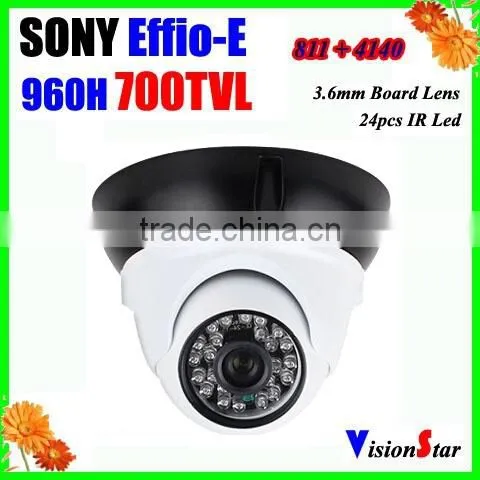

Motion detection 700tvl ccd sensor sony Effio-E 3.6mm board lens cctv security camera

Model No.

VS-V5172IR

Camera Type

Color Vandalproof IR Camera

Image Sensor

1/3"SONY Super HAD CCDⅡ

Effective Pixels

PAL:976(H) x 582(V)570K

NTSC:976(H) x 494(V)480K

Signal System

PAL /NTSC

Horizontal Resolution

700 TV Lines

Min. Illumination

0.01 LUX/F1.2

Lens Mount

3.6mm Board Len/F1.2

Iris Control

 Auto/Manual

S/N

≥52Db (AGC OFF)

OSD Menu

Support

Language

8 languages  (EN, FR, DT, ES, POR, CN, RCN, RUS,JP)

White Balance

Push/User/Antic/Manual/Push lock/ATW

Picture Adjust

Mirror/Brightness/Contrast/Sharpness/HUE/Gain

ATR

Yes

Motion Detection

Yes

Privacy Mask

4 masks

Day & Night

Color / B/W / Auto

Noise Reduction

2D-NR

HLC

Yes

AFD

Yes

SYNC

Internal

Shutter

PAL:1/60(Sec.)~1/100,000(Sec.);
NTSC: 1/50(Sec.)~1/100,000(Sec.)

Infrared Luminary

24 pieces IR-LED

Infrared Wavelength

850 nm

Illuminate Distance

20M

Waterproof Criterion

IP66

I/O Connector

Power : DC Power Jack , Video Output : BNC

Video Output Level

1.0 Vp-p (75 Ohms, composite)

Supplied Voltage

DC12V Voltage

Power Consumption

IR On: 280mA max., IR Off: Less than 130mA

Dimensions

110mm x 80mm

Weight

Approx. 0.85kg
