Sunlight readable, full-view 12.3inch TFT LCD with high luminance 1000nits, Remote Driver HDMI Board
- 1000 Piece / Pieces per Month
- HK
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S123WU01 Sunlight readable displays |
| Type: | Other, TFT, 12.3 inch Sunlight readable displays |
Product Description

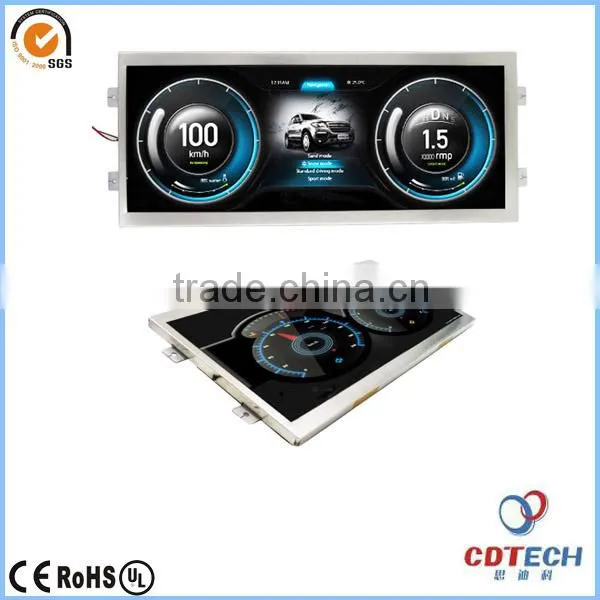

TFT LCD ultra wide 12.3 inch 1920X720 bar type tft lcd displsy for car rearview mirror monitor
Gneral specifications
Characteristics
| Size | 12.3 inch |
Resolution | 1920(Horizontal)*720(Vertical) | |
Interface | LVDS | |
Connect type | Connector | |
Color Depth | 16.7M | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.05075(H)×RGBx0.15225(V) | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally Black | |
Driver IC | - | |
Surface Treatment | HC | |
Viewing Direction | ALL | |
Mechanical
| LCM (W x H x D) (mm) | 308.1*134.86*6.5 |
Active Area(mm) | 292.32 x109.62 | |
With /Without TSP | Without | |
Weight (g) | TBD | |
LED Numbers | 80 LEDs |
