Product Details
Place of Origin: | Guangdong, China | Brand Name: | Visionstar | Model Number: | VS-D3380IR |
Type: | Analog Camera | Style: | Dome Camera | Sensor: | CCD |
Technology: | Infrared | Special Features: | Vandal-proof |
Product Description

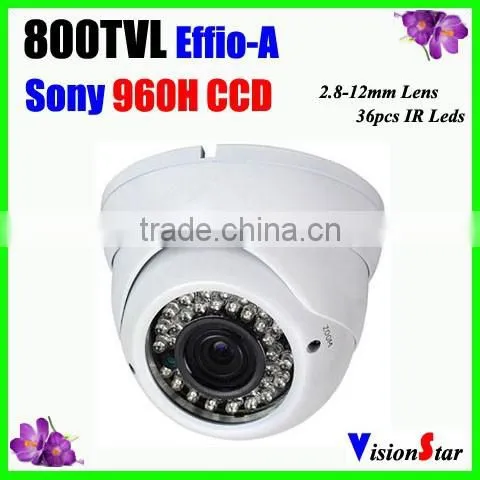

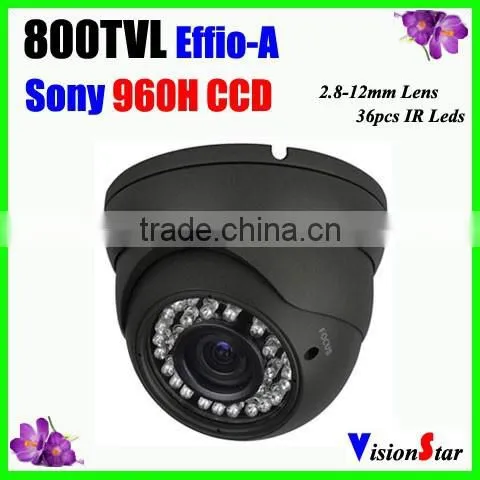

Camera security system 800tvl sony effio-a ccd sensor 36pcs ir leds CXD4151gg metal cover outdoor using dome cctv camera
Picture shows:
Color CCTV IR Camera;
1/3" Sony 960H Double -Speed CCD;
DSP: Sony Effio-A CXD4151GG;
Ultra High Resolution 800TVL, 0.001Low Lux;
2D&3D-DNR, Sense-up, Defog, Ezoom;
OSD /BLC /Motion Detection /Privacy Masking;
36pcs F5 IR-LED, IR Range more than 30M;
2.8-12mm Varifocal lens ( 2Mega Pixels );
OSD Languages: Chinese,English,Japanese,French,Portuguese,German
Model No. | VS-D3380IR | |
Camera Type | Color Vandalproof IR Camera | |
Image Sensor | 1/3" SONY 960H Exview HADII CCD(Dual CCD) | |
System | PAL: 673+4151+5148 NTSC: 672+4151+5148 | |
Effective Pixels | PAL: 1020(H)x508(V) NTSC: 1020(H)x596(V) | |
Sync. System | Internal | |
Signal System | PAL /NTSC | |
Horizontal Resolution | 800TV Lines | |
Min. Illumination | 0.001Lux/F1.2 (IR ON 0 Lux) | |
Lens | 2.8-12MM Varifocal Lens ( 2Mega Pixels ) | |
IR LED | 36pcs F5 IR LED | |
Infrared Wavelength | 850 nm | |
Illuminate Distance | 30M | |
Noise Reduction | 3DNR+2DNR | |
Sense Up | Yes | |
Defog | Yes | |
S/N Ratio | More Than 52dB (AGC Off) | |
OSD Menu | LENS: | AUTO/MANUAL |
SCENE SELECT: | CUSTOM/FULL AUTO/INDOOR/OUTDOOR/BLACKLIGHT/ITS | |
ATR-EX: | ON/OFF CLEAR FACE:LOW/MIDDLE/HIGH/OFF | |
SYNC MODE: | INT | |
COMMUNICATION | INT | |
FLIP: | HV/OFF/V/H | |
Shutter/AGC: | AUTO/MANUAL | |
PICT Adjust: | BRIGHTNESS/CONTRAST/SHARPNESS/HUE/COLOR GAIN | |
WDR | 150DB | |
DAY/NIGHT: | AUTO/DAY/NGHT | |
HLC/BLC: | OFF/ HLC/BLC | |
Moving detection: | ON/OFF | |
LANGUAGE: | Chinese/English/Japanese/German/French /Russian/Portuguese/Spanish | |
White Balance: | ATW FRAME/SPEED/DELAY CNT/ENVIRONMENT | |
S/N : | OFF/low/middle low/middle/middle high/high | |
EZOOM: | ON/OFF | |
DIS: | ON/OFF | |
PRIVACY MASK: | Area selection/Display/position/color/Transparency/Mosaic | |
MOTION DET: | ON/OFF | |
CAMERA RESET | ||
I/O Connector | Power: DC Power Jack, Video Output: BNC | |
Video Output | 1.0Vp-p Composite Output (75Ω / BNC) | |
Power Supply | DC12V(+/-10%) | |
Working Temperature | -10°C~50°C | |
Working Humidity | ≤ 95% RH | |
Dimensions | 120mm x 90mm | |
Weight | Approx. 0.72kg |
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
Each item will be tested and checked before shipping, for any problems after you received,such as damage, defective, please contact us immediately for helping, and please don't heasitate to contact us for any unsatisfyingbefore you open a dispute, we will try our best to offer you a reasonable solution.
