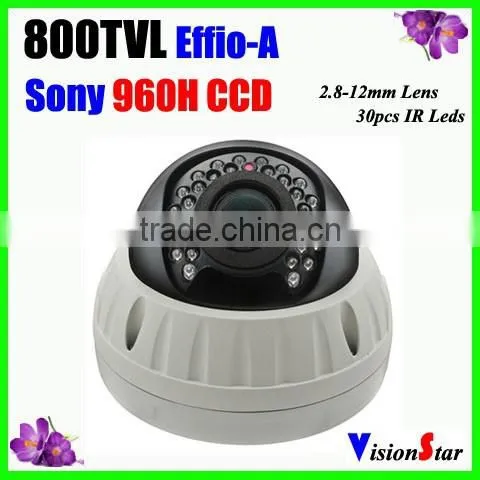

Excellent image indoor using 800TVL sony Effio-A Cxd4151gg+673 day/night vision security vandalproof camera

Model No.

VS-V3380IR

Camera Type

Color Vandalproof IR Camera

Image Sensor

1/3" SONY 960H Exview HADII CCD(Dual CCD)

System

PAL: 673+4151+5148    NTSC: 672+4151+5148

Effective Pixels

PAL: 1020(H)x508(V)  NTSC: 1020(H)x596(V)

Sync. System

Internal

Signal System

PAL /NTSC

Horizontal Resolution

800TV Lines

Min. Illumination

0.001Lux/F1.2 (IR ON 0 Lux)

Lens

2.8-12MM Varifocal Lens ( 2Mega Pixels )

IR LED

30pcs F5 IR LED

Infrared Wavelength

850 nm

Illuminate Distance

25M

Noise Reduction

3DNR+2DNR

Sense Up

Yes

Defog

Yes

S/N Ratio

More Than 52dB (AGC Off)

OSD Menu

LENS:

AUTO/MANUAL

SCENE SELECT:

CUSTOM/FULL AUTO/INDOOR/OUTDOOR/BLACKLIGHT/ITS

ATR-EX:

ON/OFF   CLEAR FACE:LOW/MIDDLE/HIGH/OFF

SYNC MODE:

INT

COMMUNICATION

INT

FLIP:

HV/OFF/V/H

Shutter/AGC:

AUTO/MANUAL

PICT Adjust:

BRIGHTNESS/CONTRAST/SHARPNESS/HUE/COLOR GAIN

WDR

150DB

DAY/NIGHT:

AUTO/DAY/NGHT

HLC/BLC:

OFF/ HLC/BLC

Moving detection:

ON/OFF

LANGUAGE:

Chinese/English/Japanese/German/French /Russian/Portuguese/Spanish

White Balance:

ATW FRAME/SPEED/DELAY CNT/ENVIRONMENT

S/N :

OFF/low/middle low/middle/middle high/high

EZOOM:

ON/OFF

DIS:

ON/OFF

PRIVACY MASK:

Area selection/Display/position/color/Transparency/Mosaic

MOTION DET:

ON/OFF

CAMERA RESET

I/O Connector

Power: DC Power Jack, Video Output: BNC

Video Output

1.0Vp-p Composite Output (75Ω / BNC)

Power Supply

DC12V(+/-10%)

Working Temperature

-10°C~50°C

Working Humidity

≤ 95% RH

Dimensions

142mm x 108mm

Weight

Approx. 0.850kg
