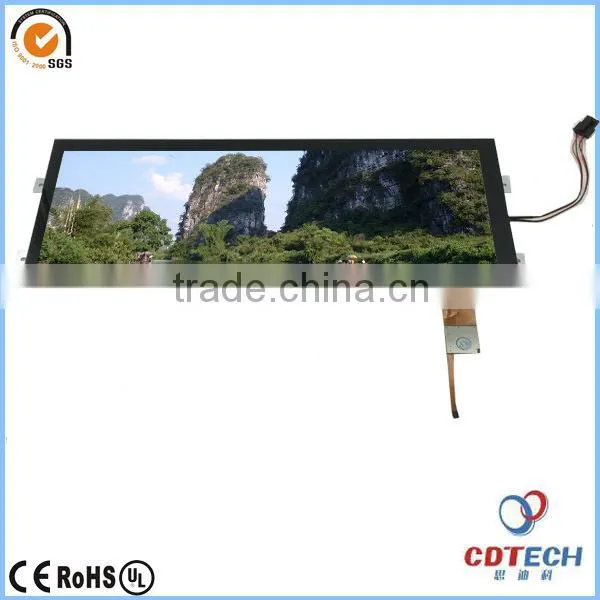

CTP multi touch screen panel 12.3 inch lcd display for car equipment
- 500000 Piece / Pieces per Month
- HK
- T/T Credit Card PayPal
-
Digital thermometer hygrometer used for travelling weather station pocket type
-
Wireless Atomic Table Clock, Thermometer/Display In/Out Temperature, Blue/Green Backlight Selectable
-
Weather Station Clock with Forecast/Desk/Digital Clock with in/Outdoor Temperature and Humidity
-
Wired Weather Station/Desk/Digital Clock with In/Outdoor Temperature Display
-
MAX / MIN Temperature And Humidity Automatic Memory Digital Thermometer Hygrometer
-
Atomic Projection Desk Clock with Indoor Temperature and Big Character Display
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S123WU01-CT4-18 |
| Type: | TFT |
Product Description
Product Description
Feature | Item | CTP multi touch screen panel 12.3 inch lcd display for car equipment |
Characteristics | Size | 12.3 inch |
Resolution | 1920(Horizontal)*720(Vertical) | |
Interface | LVDS | |
Connect type | Connector | |
Color Depth | 16.7M | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.05075(H)×RGBx0.15225(V) | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally Black | |
Driver IC | ILI6480 | |
Surface Treatment | 3H | |
Viewing Direction | ALL | |
Mechanical | LCM (W x H x D) (mm) | 308.1*134.86*6.5 |
Active Area(mm) | 292.32 x109.62 | |
With /Without TSP | Without | |
Weight (g) | TBD | |
LED Numbers | 80 LEDs |
Products Drawing:
CDTech Company
CDTech Products Pictures
| P/N | Size | Resolution | P/N | Size | Resolution |
| S032HV04 | 3.2" | 320*480 | S035VR14-T | 3.5" | 480*640 |
| S035Q01 | 3.5" | 320*240 | S035HV09 | 3.5" | 320*480 |
| S035Q01-T | 3.5" | 320*240 | S035HV09H | 3.5" | 320*480 |
| S035Q03-T | 3.5" | 320*240 | S035HV12 | 3.5" | 320*480 |
| S035Q08-T | 3.5" | 320*240 | S035HV13 | 3.5" | 320*480 |
| S035Q09 | 3.5" | 320*240 | S035HV13H | 3.5" | 320*480 |
| S035Q09-CTP | 3.5" | 320*240 | S039WQ01 | 3.9" | 480*128 |
| S035Q13-T | 3.5" | 320*240 | S040WV04 | 3.95" | 480*800 |
| S035Q24 | 3.5" | 320*240 | S042WQ01 | 4.2" | 240*432 |
| S035LQNC111 | 3.5" | 320*240 | S043WQ02 | 4.3” | 480*272 |
| S035LQNC111-CT | 3.5" | 320*240 | S043WQ07 | 4.3” | 480*272 |
| S035LQNC211 | 3.5" | 320*240 | S043WQ08 | 4.3” | 480*272 |
| S035LQNC116 | 3.5" | 320*240 | S043WQ09 | 4.3” | 480*272 |
| S035V01 | 3.5" | 480*640 | S043WQ018HB | 4.3” | 480*272 |
| S035V01-T | 3.5" | 480*640 | S043WQ15 | 4.3” | 480*272 |
| S035V03 | 3.5" | 480*640 | S043WQ21 | 4.3” | 480*272 |
| S035V03-T | 3.5" | 480*640 | S043WQ24 | 4.3” | 480*272 |
| S035V04 | 3.5" | 480*640 | S043WQ24H | 4.3” | 480*272 |
| S035V04-T | 3.5" | 480*640 | S043WQ26H | 4.3” | 480*272 |
| S035VR10 | 3.5" | 480*640 | S043WQ26H-CT6 | 4.3” | 480*272 |
| S035VR10-T | 3.5" | 480*640 | S043WQ28 | 4.3” | 480*272 |
| P/N | Size | Resolution | P/N | Size | Resolution |
| S043WQ36H | 4.3” | 480*272 | S050WV43-CT5 | 5.0" | 800*480 |
| S043WQ40H | 4.3” | 480*272 | S056V01 | 5.6" | 640*480 |
| S043WQ49 | 4.3” | 480*272 | S057Q01 | 5.7" | 320*240 |
| S043WQ55 | 4.3” | 480*272 | ma | 5.7" | 640*480 |
| S043WQ56 | 4.3” | 480*272 | S057V02 | 5.7" | 640*480 |
| S043WQ56H | 4.3” | 480*272 | S057V03 | 5.7" | 640*480 |
| S043WQ56HS | 4.3” | 480*272 | S058WV01 | 5.8" | 800*320 |
| S043WV07 | 4.3” | 800*480 | S060FW03 | 6.0" | 480*854 |
| S046WV01 | 4.6" | 800*320 | S065WV01 | 6.5" | 800*320 |
| S046WV02 | 4.6" | 800*320 | S065WV02 | 6.5" | 800*320 |
| S046WV03 | 4.6" | 800*320 | S070WV20 | 7.0" | 800*480 |
| S050WQ06 | 5.0" | 480*272 | S070WV83 V.1 | 7.0" | 800*480 |
| S050WQ06-T | 5.0" | 480*272 | S070WV83 V2.0 | 7.0" | 800*480 |
| S050WQ06-CT | 5.0" | 480*272 | S070WV84 | 7.0" | 800*480 |
| S050WQ07 | 5.0" | 480*272 | S070WV85-CT8 | 7.0" | 800*480 |
| S050WV02 | 5.0" | 800*480 | S070WV92 | 7.0" | 800*480 |
| S050WV06 | 5.0" | 800*480 | S070WV94 | 7.0" | 800*480 |
| S050WV07 | 5.0" | 800*480 | S070WV94H | 7.0" | 800*480 |
| S050WV43 | 5.0" | 800*480 | S070WV95/97 | 7.0" | 800*480 |
| S050WV44 | 5.0" | 800*480 | S070WV98 | 7.0" | 800*480 |
| S050WV44H | 5.0" | 800*480 | S070WV101 | 7.0" | 800*480 |
| S050WV43-T | 5.0" | 800*480 |
| P/N | Size | Resolution | P/N | Size | Resolution |
| S070WS03 | 7.0" | 1024*600 | S101WS09 | 10.1 | 1024*600 |
| S070WS08 | 7.0" | 1024*600 | S101WX06 | 10.1 | 1280*800 |
| S070WS12 | 7.0" | 1024*600 | S101FH01 | 10.1 | 1280*800 |
| S070WS14 | 7.0" | 1024*600 | CDT101PUW1-A00/S101WU01 | 10.1 | 1920*1200 |
| S070WX02 | 7.0" | 800*1280 | S091WX02 | 10.1 | 1920*480 |
| S070WU01 | 7.0" | 1200x1920 | S104V01 | 10.4" | 800*600 |
| S072WX01 | 7.2 | 1280*384 | S104SX01 | 10.4" | 800*600 |
| S080SV01 | 8.0" | 800*600 | S104SX02 | 10.4" | 800*600 |
| S080SV03H | 8.0" | 800*600 | G104VN01 V1 | 10.4" | 640*480 |
| S080SV04H-L | 8.0" | 800*600 | S104XG01 | 10.4" | 1024*768 |
| S080SV05H | 8.0" | 800*600 | S104XG02 | 10.4" | 1024*768 |
| S080XG04 | 8.0" | 1024*768 | S104SV05H | 10.4" | 800*600 |
| S080XG04H V2 | 8.0" | 1024*768 | S088WX03 | 10.8 | 1280*320 |
| S072WX02 | 8.2 | 1280*384 | S088WU02 | 11.8 | 1920*480 |
| S088WX01 | 8.8 | 1280*320 | S121SDS01 | 12.1" | 800*600 |
| S090WV02 | 9.0" | 800*480 | S121WX03 | 12.1" | 1280*800 |
| S091WX01 | 9.1 | 1920*480 | S123WU01 | 12.3" | 1920*720 |
| S072WX03 | 9.2 | 1280*384 | S150XG01 | 15.0" | 1024*768 |
| S088WX02 | 9.8 | 1280*320 | S170XG01 | 17" | 1024*768 |
| S101WS07 | 10.1 | 1024*600 | S190XG01 | 19" | 1024*768 |
| S101WS08 | 10.1 | 1024*600 | M220ZGE-L20 | 22" | 1680*1050 |
Our Workshops
The Exhibition that we attend
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
