Home > Products > TFT lcd diaply and Capacitive touch panel > Car Rearview Monitor 7.0 inch TFT LCD HD screen with 1024*600 solution Quality Choice

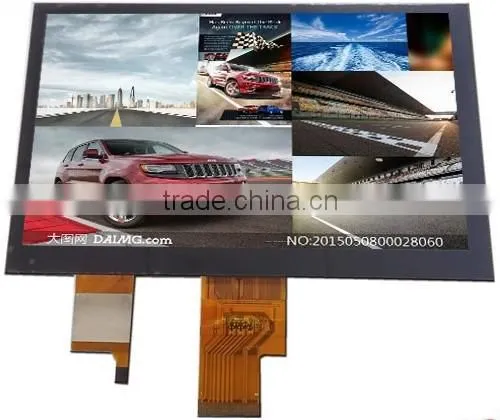

Car Rearview Monitor 7.0 inch TFT LCD HD screen with 1024*600 solution Quality Choice
- 500000 Piece / Pieces per Month
- HK
- Digital thermometer hygrometer used for travelling weather station pocket type
- Wireless Atomic Table Clock, Thermometer/Display In/Out Temperature, Blue/Green Backlight Selectable
- Weather Station Clock with Forecast/Desk/Digital Clock with in/Outdoor Temperature and Humidity
- Wired Weather Station/Desk/Digital Clock with In/Outdoor Temperature Display
- MAX / MIN Temperature And Humidity Automatic Memory Digital Thermometer Hygrometer
- Atomic Projection Desk Clock with Indoor Temperature and Big Character Display
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S070WS08H -CT19 TFT LCD Panel |
Type: | Standard |
Product Description
Feature | Spec | |
Characteristics | Size | 7 inch |
Resolution | 1024(Horizontal)*600(Vertical) | |
Interface | LVDS | |
Connect type | Connector | |
Color Depth | 16.7M | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.05 x 0.15 | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normall white | |
LCD Driver IC | LVDS | |
CTP Interface | I2C | |
Viewing Direction | 12 O'clok | |
Surface treatment | - | |
Mechanical | LCM (W x H x D) (mm) | 165.25x104.89x4.2 |
Active Area(mm) | 153.6 X 90 | |
With /Without TSP | With CTP | |
Weight (g) | TBD | |
LED Numbers | 27 LEDs |
Drawing and Images show

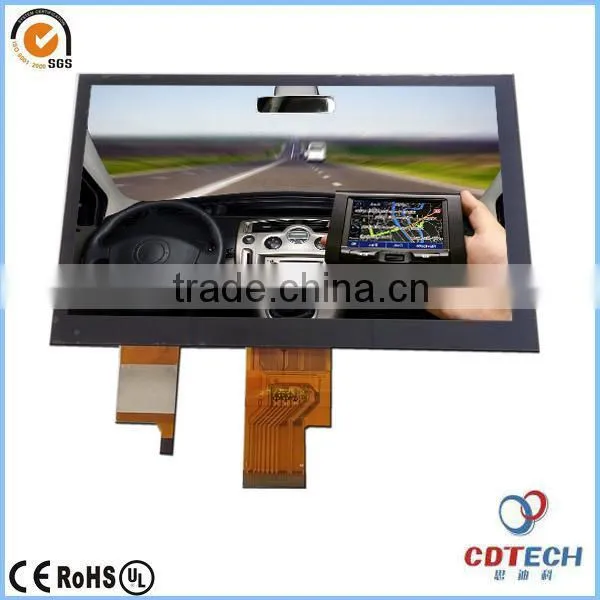

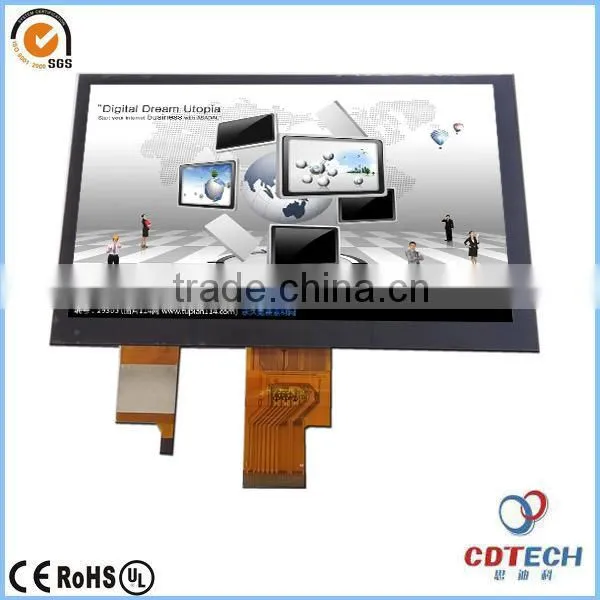

Other images show
Packaging
1. Put module into tray cavity.
2. Tray stacking .
3. Put 1 cardboard under the tray stack and 1 cardboard above.
4. Fix the cardboard to the tray stack with adhesive tape.
5. Put the tray stack into carton.
6. Carton sealing with adhesive tape.
Shipping
CDTech Electronics was established in 2009, is a hightech company who focus on the LCD R & D, manufacturing and selling. We can Provide professional, perfect lcd solutions to customers.
Our LCD products are widely applied to telecommunications, Medical area, industrial control area, consumer electronics, automotive electronics and many other fields. We have professional R & D team, who can develop, design and customize all kinds of LCD/LCM for customers, OEM and ODM are very welcome.
We can guarantee world advanced technology LCD/LCM manufacturing workshop, providing the high quality and efficient services and quick feedback. We have been establishing good relationship with Philips, Devilbiss, Midea Group, CHIGO Group, Harman Kardon, ABB, Micronet etc. Our main agents in France, Italy, Taiwan and other brand industrial LCD, size is from 1.77 ” to 42” . According to customers demand,we can also provide a variety of LCD panel accessories : LCD driving board, touch screen, inverter, HMI ,and so on.
Our aim is to assure the top quality and to serve our customers heart and soul. With the continuous competitiveness, it is our mutual goal to look for a path bette
Application
Application of TFT LCD Display | |
Consumer Products | Camera,DVD player,toy,gam player,etc |
Technical Equipment | Elevator controller,Industrial machine,etc |
Office Automation | Printer,scanner,attendance machine,fax machine,etc |
Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
Automobile | GPS,video player,speedometer,audio broadcast,etc |
IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
Medical Equipment | Ultrasound machine,therapeutic equipment, Blood pressure meter,etc |
All the descriptions correspond with the goods
