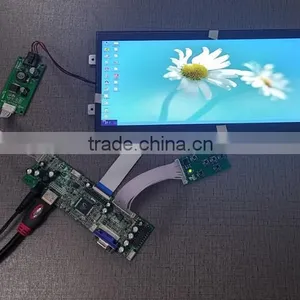

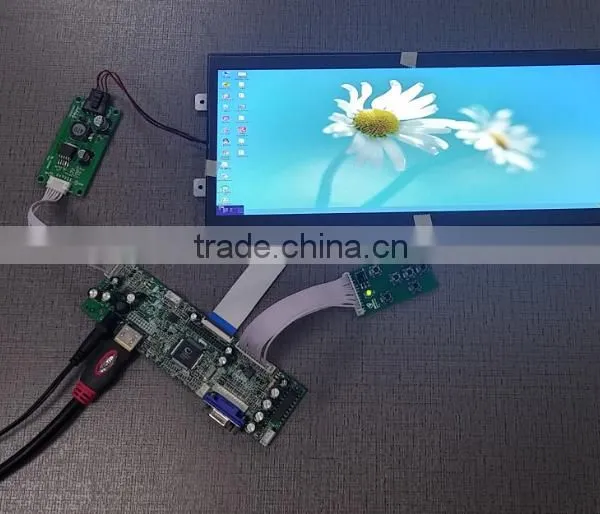

Newest Transflectitive sunlight readable industrial 12.3 inch tft lcd module
- 500000 Piece / Pieces per Month
- HK
- T/T Credit Card PayPal
- Water proof sunlight readable 12.3 inch lcd module transflective color lcd
- 3.5 inch tft lcd 320x480 HVGA colorful touch screen Portrait type with shenzhen competitive prices
- Grade A+ LCD Panel 12.3inch lcd monitor with BNC input
- 12.3 inch hdmi monitor/ 12.3 inch lcd DVI monitor
- All view agnel 1920x720 IPS mode 12.3 inch tft type Bar lcd for automotive
- 12.3 inch LCD 1920X720 bar type TFT LCD ultra wide TFT LCD for car rearview mirror monitor Quality Choice
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S123WU01-285 |
Type: | TFT |
Product Description
Product Description
Feature | Item | Newest Transflectitive sunlight readable industrial 12.3 inch tft lcd module |
Characteristics | Size | 12.3 inch |
Resolution | 1920(Horizontal)*720(Vertical) | |
Interface | LVDS | |
Connect type | Connector | |
Color Depth | 16.7M | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.05075(H)×RGBx0.15225(V) | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally Black | |
Driver IC | ILI6480 | |
Surface Treatment | 3H | |
Viewing Direction | ALL | |
Mechanical | LCM (W x H x D) (mm) | 308.1*134.86*6.5 |
Active Area(mm) | 292.32 x109.62 | |
With /Without TSP | Without | |
Weight (g) | TBD | |
LED Numbers | 80 LEDs |
Products Drawing:
CDTech Company
CDTech Products Pictures
P/N | Size | Resolution | P/N | Size | Resolution |
S032HV04 | 3.2" | 320*480 | S035VR14-T | 3.5" | 480*640 |
S035Q01 | 3.5" | 320*240 | S035HV09 | 3.5" | 320*480 |
S035Q01-T | 3.5" | 320*240 | S035HV09H | 3.5" | 320*480 |
S035Q03-T | 3.5" | 320*240 | S035HV12 | 3.5" | 320*480 |
S035Q08-T | 3.5" | 320*240 | S035HV13 | 3.5" | 320*480 |
S035Q09 | 3.5" | 320*240 | S035HV13H | 3.5" | 320*480 |
S035Q09-CTP | 3.5" | 320*240 | S039WQ01 | 3.9" | 480*128 |
S035Q13-T | 3.5" | 320*240 | S040WV04 | 3.95" | 480*800 |
S035Q24 | 3.5" | 320*240 | S042WQ01 | 4.2" | 240*432 |
S035LQNC111 | 3.5" | 320*240 | S043WQ02 | 4.3” | 480*272 |
S035LQNC111-CT | 3.5" | 320*240 | S043WQ07 | 4.3” | 480*272 |
S035LQNC211 | 3.5" | 320*240 | S043WQ08 | 4.3” | 480*272 |
S035LQNC116 | 3.5" | 320*240 | S043WQ09 | 4.3” | 480*272 |
S035V01 | 3.5" | 480*640 | S043WQ018HB | 4.3” | 480*272 |
S035V01-T | 3.5" | 480*640 | S043WQ15 | 4.3” | 480*272 |
S035V03 | 3.5" | 480*640 | S043WQ21 | 4.3” | 480*272 |
S035V03-T | 3.5" | 480*640 | S043WQ24 | 4.3” | 480*272 |
S035V04 | 3.5" | 480*640 | S043WQ24H | 4.3” | 480*272 |
S035V04-T | 3.5" | 480*640 | S043WQ26H | 4.3” | 480*272 |
S035VR10 | 3.5" | 480*640 | S043WQ26H-CT6 | 4.3” | 480*272 |
S035VR10-T | 3.5" | 480*640 | S043WQ28 | 4.3” | 480*272 |
P/N | Size | Resolution | P/N | Size | Resolution |
S043WQ36H | 4.3” | 480*272 | S050WV43-CT5 | 5.0" | 800*480 |
S043WQ40H | 4.3” | 480*272 | S056V01 | 5.6" | 640*480 |
S043WQ49 | 4.3” | 480*272 | S057Q01 | 5.7" | 320*240 |
S043WQ55 | 4.3” | 480*272 | ma | 5.7" | 640*480 |
S043WQ56 | 4.3” | 480*272 | S057V02 | 5.7" | 640*480 |
S043WQ56H | 4.3” | 480*272 | S057V03 | 5.7" | 640*480 |
S043WQ56HS | 4.3” | 480*272 | S058WV01 | 5.8" | 800*320 |
S043WV07 | 4.3” | 800*480 | S060FW03 | 6.0" | 480*854 |
S046WV01 | 4.6" | 800*320 | S065WV01 | 6.5" | 800*320 |
S046WV02 | 4.6" | 800*320 | S065WV02 | 6.5" | 800*320 |
S046WV03 | 4.6" | 800*320 | S070WV20 | 7.0" | 800*480 |
S050WQ06 | 5.0" | 480*272 | S070WV83 V.1 | 7.0" | 800*480 |
S050WQ06-T | 5.0" | 480*272 | S070WV83 V2.0 | 7.0" | 800*480 |
S050WQ06-CT | 5.0" | 480*272 | S070WV84 | 7.0" | 800*480 |
S050WQ07 | 5.0" | 480*272 | S070WV85-CT8 | 7.0" | 800*480 |
S050WV02 | 5.0" | 800*480 | S070WV92 | 7.0" | 800*480 |
S050WV06 | 5.0" | 800*480 | S070WV94 | 7.0" | 800*480 |
S050WV07 | 5.0" | 800*480 | S070WV94H | 7.0" | 800*480 |
S050WV43 | 5.0" | 800*480 | S070WV95/97 | 7.0" | 800*480 |
S050WV44 | 5.0" | 800*480 | S070WV98 | 7.0" | 800*480 |
S050WV44H | 5.0" | 800*480 | S070WV101 | 7.0" | 800*480 |
S050WV43-T | 5.0" | 800*480 |
P/N | Size | Resolution | P/N | Size | Resolution |
S070WS03 | 7.0" | 1024*600 | S101WS09 | 10.1 | 1024*600 |
S070WS08 | 7.0" | 1024*600 | S101WX06 | 10.1 | 1280*800 |
S070WS12 | 7.0" | 1024*600 | S101FH01 | 10.1 | 1280*800 |
S070WS14 | 7.0" | 1024*600 | CDT101PUW1-A00/S101WU01 | 10.1 | 1920*1200 |
S070WX02 | 7.0" | 800*1280 | S091WX02 | 10.1 | 1920*480 |
S070WU01 | 7.0" | 1200x1920 | S104V01 | 10.4" | 800*600 |
S072WX01 | 7.2 | 1280*384 | S104SX01 | 10.4" | 800*600 |
S080SV01 | 8.0" | 800*600 | S104SX02 | 10.4" | 800*600 |
S080SV03H | 8.0" | 800*600 | G104VN01 V1 | 10.4" | 640*480 |
S080SV04H-L | 8.0" | 800*600 | S104XG01 | 10.4" | 1024*768 |
S080SV05H | 8.0" | 800*600 | S104XG02 | 10.4" | 1024*768 |
S080XG04 | 8.0" | 1024*768 | S104SV05H | 10.4" | 800*600 |
S080XG04H V2 | 8.0" | 1024*768 | S088WX03 | 10.8 | 1280*320 |
S072WX02 | 8.2 | 1280*384 | S088WU02 | 11.8 | 1920*480 |
S088WX01 | 8.8 | 1280*320 | S121SDS01 | 12.1" | 800*600 |
S090WV02 | 9.0" | 800*480 | S121WX03 | 12.1" | 1280*800 |
S091WX01 | 9.1 | 1920*480 | S123WU01 | 12.3" | 1920*720 |
S072WX03 | 9.2 | 1280*384 | S150XG01 | 15.0" | 1024*768 |
S088WX02 | 9.8 | 1280*320 | S170XG01 | 17" | 1024*768 |
S101WS07 | 10.1 | 1024*600 | S190XG01 | 19" | 1024*768 |
S101WS08 | 10.1 | 1024*600 | M220ZGE-L20 | 22" | 1680*1050 |
Our Workshops
The Exhibition that we attend
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
