6-16mm Elevator Wire Rope 2 Relay 3000kg 24v dc Load Limiter Controller Sensor

6-16mm Elevator Wire Rope 2 Relay 3000kg 24v dc Load Limiter Controller Sensor photo-1

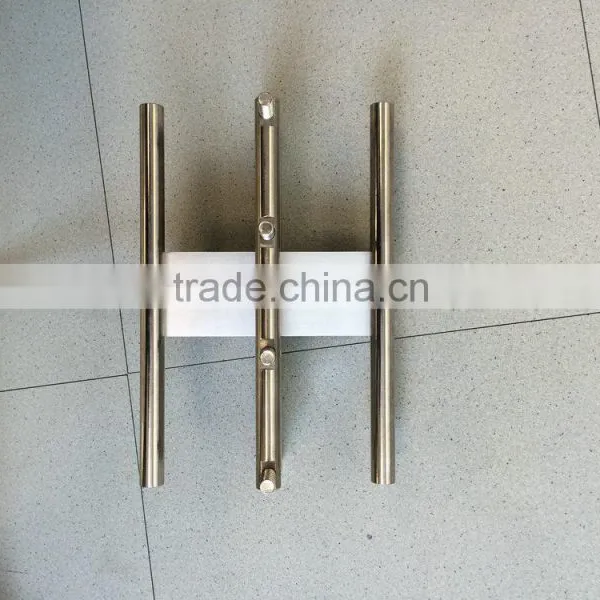

6-16mm Elevator Wire Rope 2 Relay 3000kg 24v dc Load Limiter Controller Sensor photo-2
6-16mm Elevator Wire Rope 2 Relay 3000kg 24v dc Load Limiter Controller Sensor photo-3
6-16mm Elevator Wire Rope 2 Relay 3000kg 24v dc Load Limiter Controller Sensor photo-4
US$ 10 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Summit
Model Number:
WDS-MR100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Summit
Model Number WDS-MR100
Usage Other, for elevator lift
Theory Other, other
Output Other, Relay output
Welcome

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly.  :)

Product Description

6-16mm elevator wire rope 2 relay 3000kg 24v dc load limiter controller sensor

Feature
*It is a Multi-rope weight detecting system.
*Testing the object of hanging on the rope, which Whether to run within the prescribed scope.
*It outputs switching signal by relay to Stop the equipment to continue running.
Application Fields
Elevator lift
Specifications

Model

WDS-MR100

WDS-MR200

WDS-MR300

Power supply voltage

AC/DC 16~65V  50/60Hz

Power rating

10W

Alarm relays

3

Max. switching voltage

250VAC

Max. Peak Current

5A

Rated current

3A

Rated load(resistive)in AC1

800VA

Rated load(inductive)in AC15

200VA

Galvanically isolated

Disable

Hold input

12V~230V AC/DC

Rope diameter

6~16mm

Measuring accuracy

10Kg

Measuring range

300~2500Kg

1000~5000Kg

Maximum load

5000Kg

10000Kg

response time

100ms

Dimensions

158*230*115mm

210*230*130mm

306*230*130mm

Length of cable set

3m(standard)

Protection grade

IP45  FR-ABS   -20~80 degree centigrade













Advantage

Overload weighing system with extremely attractive performance/cost ratio.

Meet the requirement of EN81

Controller configured with 6 keys and 4 digits LED display

Thanks to the integrated control unit, no additional cables are needed to connect the sensor and control unit.

Easy installation,only a few minutes are needed to install multi-rope sensors

Suitable for steel rope with 6~16mm diameter

2 channel relay output

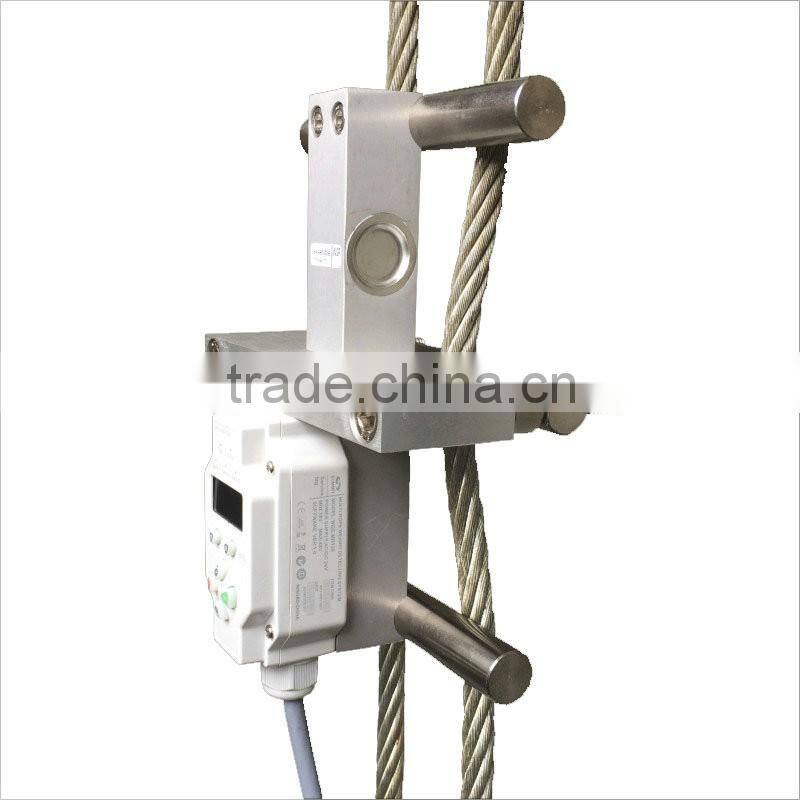

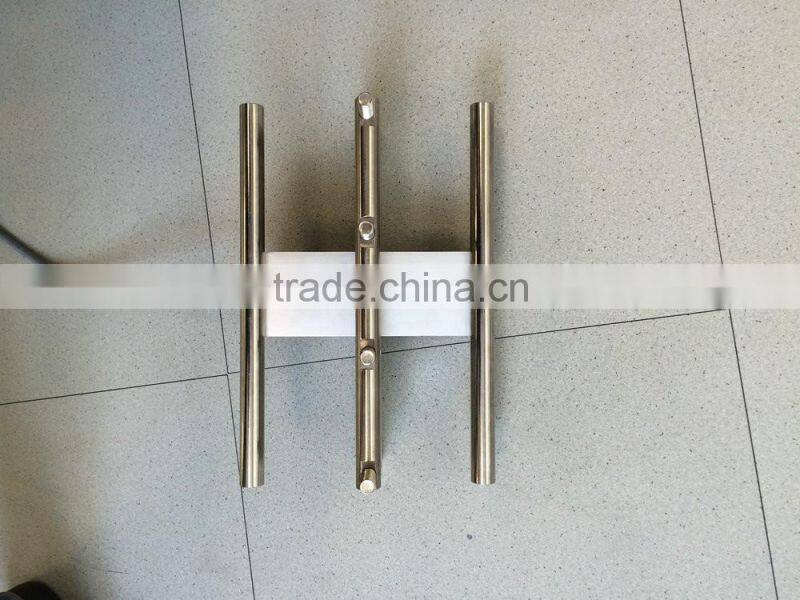

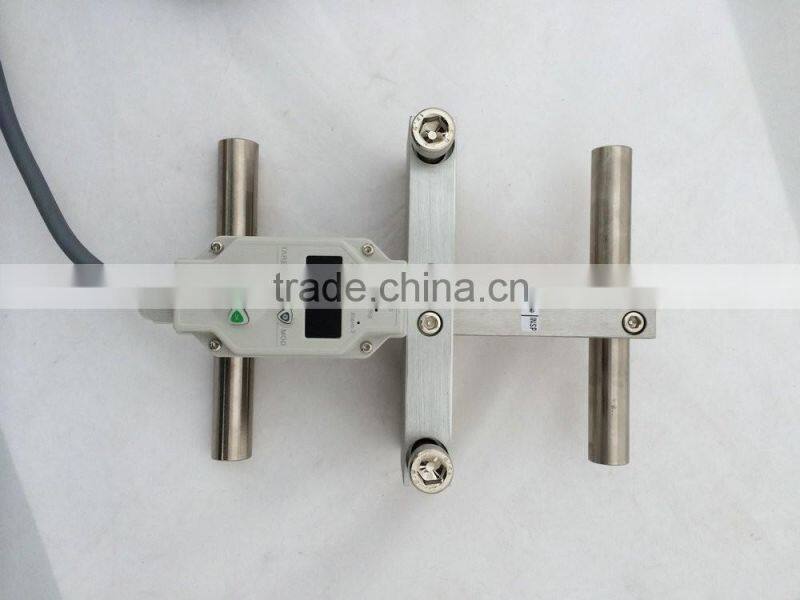

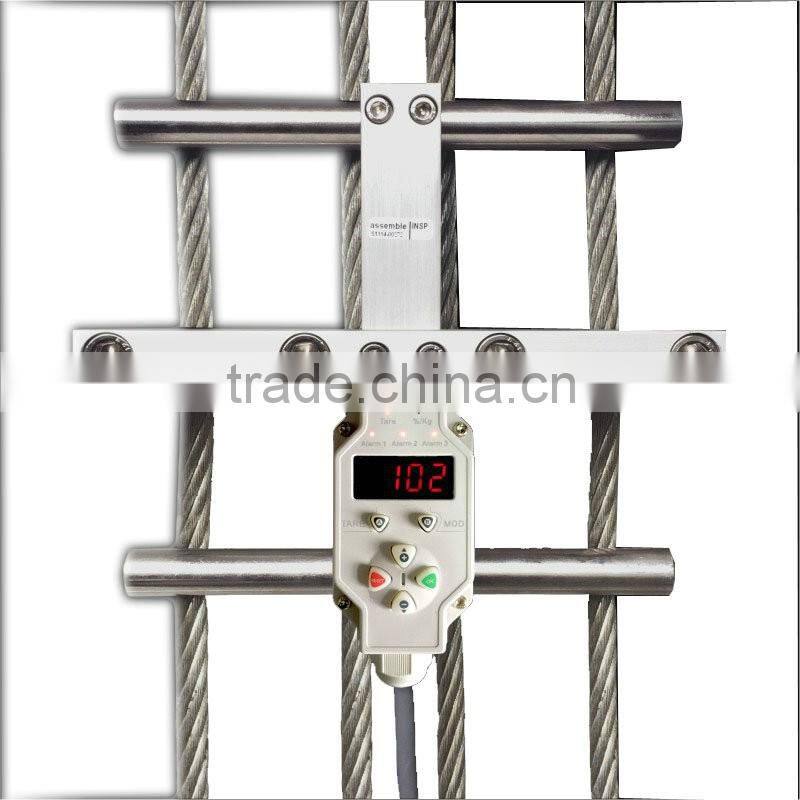

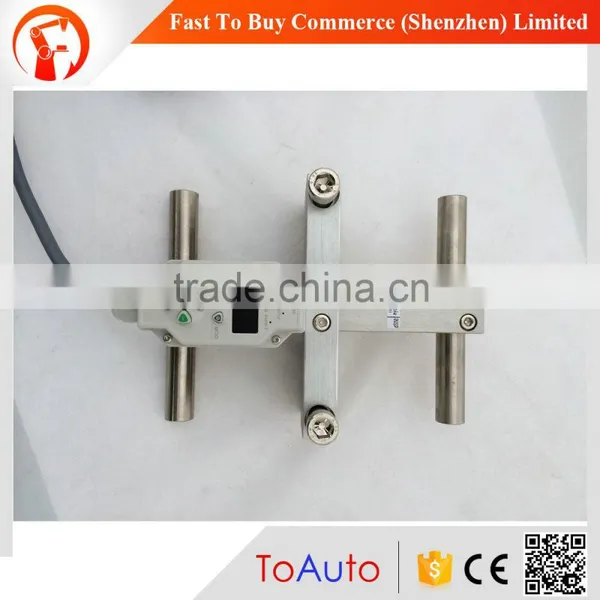

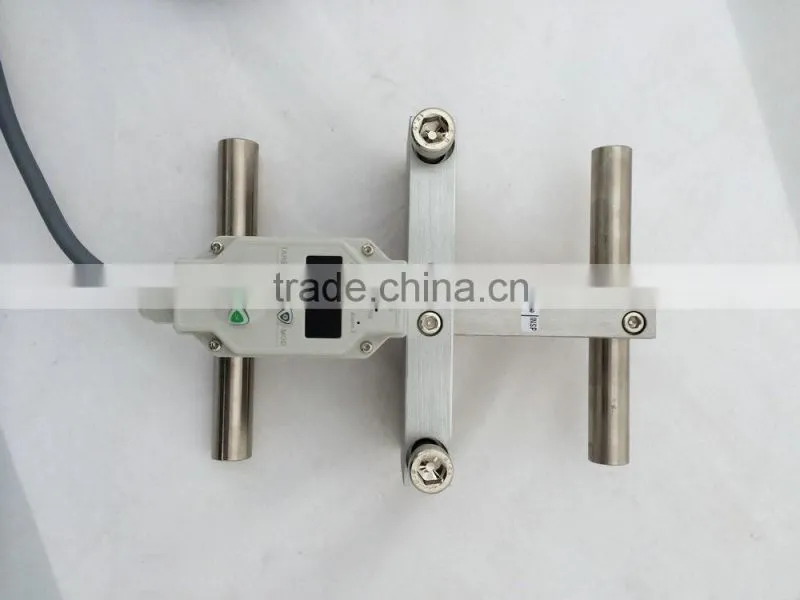

Product photos

6-16mm elevator wire rope 2 relay 3000kg 24v dc load limiter controller sensor6-16mm elevator wire rope 2 relay 3000kg 24v dc load limiter controller sensor6-16mm elevator wire rope 2 relay 3000kg 24v dc load limiter controller sensor6-16mm elevator wire rope 2 relay 3000kg 24v dc load limiter controller sensor
