Home > Products > Ratio 4:3 Industrial LCD Display > vehicle traveling data recorder 7'' inch 800*400 WVGA resolution Tft Lcd display
vehicle traveling data recorder 7'' inch 800*400 WVGA resolution Tft Lcd display
- 500000 Piece / Pieces per Month
- HK
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CDTech | Model Number: | S070WV95 |
Type: | Standard |
Product Description
Key Feature
Feature | Spec | |
Characteristics | Size | 7 inch |
Resolution | 800(horizontal)*480(Vertical) | |
Interface | 24-bit RGB | |
Connect type | Connector | |
Color Depth | 16.7M | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.192 x 0.1805 | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally White | |
Driver IC | HX8264-D,HX8664-B | |
Surface Treatment | HC | |
Viewing Direction | 12 O’clock | |
Mechanical | LCM (W x H x D) (mm) | 164.9*100*3.55 |
Active Area(mm) | 154.08 x 85.92 | |
With /Without TSP | Without TSP | |
Weight (g) | TBD | |
LED Numbers | 27 LEDs |

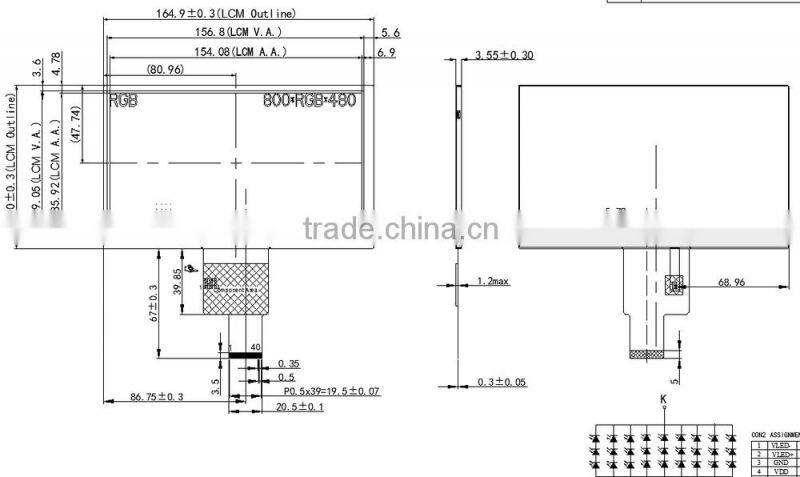

Enginner Drawing for 7'' inch 800*400 resolution tft display
Application for 7'' inch 800*400 resolution tft display | |
Telecommunication Devices | Telephone,interphone,watch,radio,etc |
Consumer Products | Camera,DVD player,toy,game player,etc |
Technical Equipment | Elevator controller,Industrial machine,etc |
Office Automation | Printer,scanner,attendance machine,fax machine,etc |
Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
Automobile | GPS,video player,speedometer,audio broadcast,etc |
IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
Medical Equipment | Ultrasound machine,therapeutic equipment, Blood pressure meter,etc |

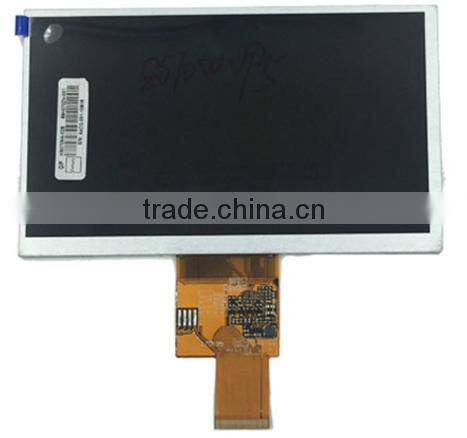

As shown below for 7 inch 800*400 resolution tft display
Packaging
1. Put module into tray cavity.
2. Tray stacking .
3. Put 1 cardboard under the tray stack and 1 cardboard above.
4. Fix the cardboard to the tray stack with adhesive tape.
5. Put the tray stack into carton.
6. Carton sealing with adhesive tape.
Shipping
Product Certification:
All the descriptions correspond with the goods
Contact me
CDTech (H.K.) Electronics Limited
Website:
Tel: 86-755-23032206
Fax: 86-755-23032209
Skype: txllain
E-mail: sales@CDTechHK.com
Any questions pls do not hesitate to contact me anytime!!

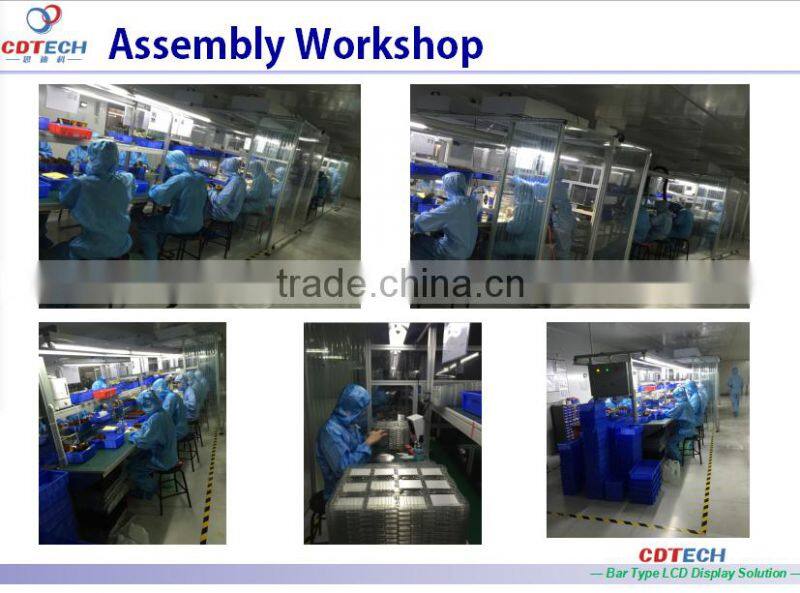

Company Show
CDTech Electronics was established in 2009, is a hightech company who focus on the LCD R & D, manufacturing and selling. We can Provide professional, perfect lcd solutions to customers.
Our LCD products are widely applied to telecommunications, Medical area, industrial control area, consumer electronics, automotive electronics and many other fields. We have professional R & D team, who can develop, design and customize all kinds of LCD/LCM for customers, OEM and ODM are very welcome.
We can guarantee world advanced technology LCD/LCM manufacturing workshop, providing the high quality and efficient services and quick feedback. We have been establishing good relationship with Philips, Devilbiss, Midea Group, CHIGO Group, Harman Kardon, ABB, Micronet etc. Our main agents in France, Italy, Taiwan and other brand industrial LCD, size is from 1.77 ” to 42” . According to customers demand,we can also provide a variety of LCD panel accessories : LCD driving board, touch screen, inverter, HMI ,and so on.
Our aim is to assure the top quality and to serve our customers heart and soul. With the continuous competitiveness, it is our mutual goal to look for a path bette
