Table type Ultrasonic tube sealing machine/sealing machine/ultrasonic tube sealer with cutting function

Specifications

sealing machinery for tube tail
utrasonic
Pneumatic device
Low cost,wear resistance

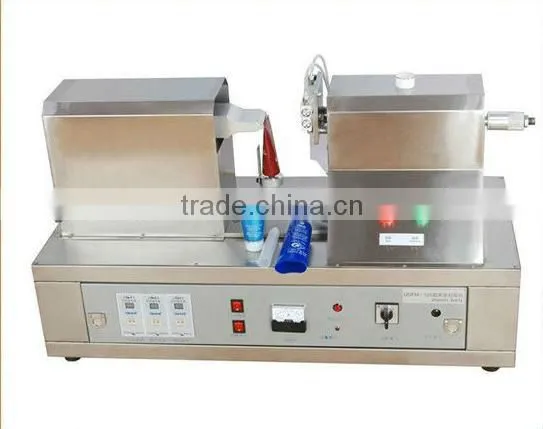

YS-125   Ultrasonic Tube Sealing Machine

Please ask me for the manual and operation video if you need it!



♦Introductions♦

 Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.



♦Two working principle ♦

Utilizing the energy produced by c high speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of  to head mould foot mould while removal of excess material to reach good effect at last .



♦Machine Feature♦

1.Two dimensional adjustment of work piece platform, it is easy to operate.

2.It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts.

3.Overload protection, phase separation protection, power-fail protection.

4.Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube.

5.It can sealing soft tube also can printing date and cutting.



♦Technical parameter♦

Environmental   temperature	0°C +35°C
Environment humidity	relative humidity below 85%
Working Height	0-300mm(Can be Customized)
Air pressure	0.2----0.6 MPa
Maximum output power	1250W
Tube height	50~180mm ( Can be Customized )
Tube diameter	F5~F50 mm ( Can be Customized )
Working table	vertical/horizontal adjustable worktable
Ultrasonic working frequency	20kHZ
Weight	100kg



♦ Item pictures ♦
