Specifications
1.4 bolt flange assembly bearings2.High rotation,Low noise,Long service life
3.High loading capability
4.Normal duty

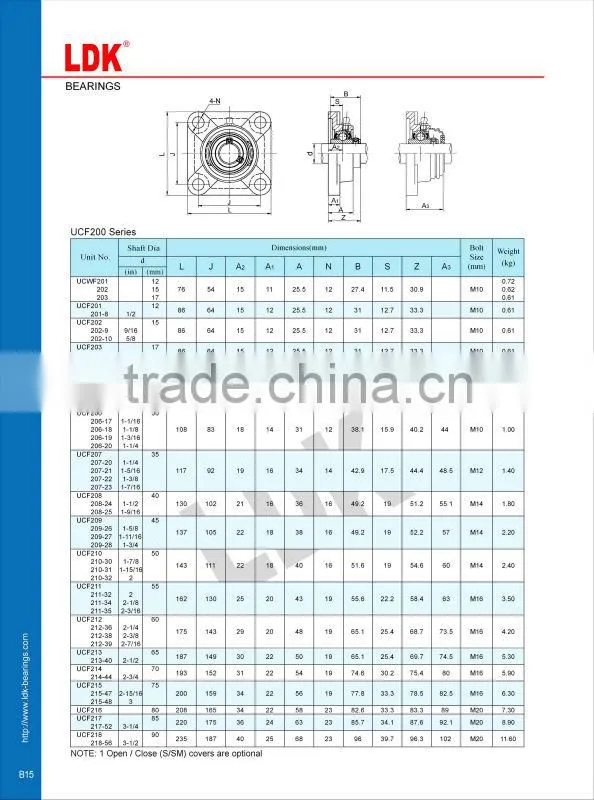

| Unit No. | Shaft Dia | Dimensions(mm) | Bolt Size (mm) | Weight(kg) | ||||||||||
| d | ||||||||||||||
| (in) | (mm) | L | J | A2 | A1 | A | N | B | S | Z | A3 | |||
| UCF215 | 75 | 200 | 159 | 34 | 22 | 56 | 19 | 77.8 | 33.3 | 78.5 | 82.5 | M16 | 6.30 | |
| UCF215-47 | 2-15/16 |
|
||||||||||||

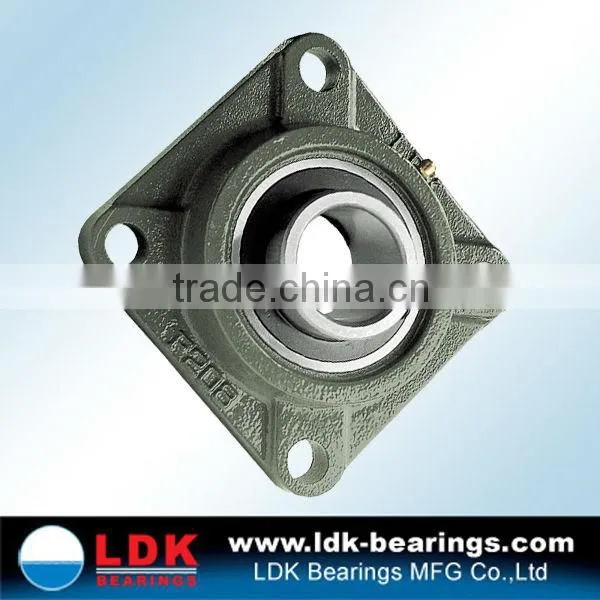

1). Structure of ball bearing and housing
The outer ring of the self-contained ball bearing in ground to a sphere and the bore of housing in machined to a matching radius. This permits self-aligning between the two members. Above figure is a view of a pillow block whic is the most popular type of Insert ball bearing units with set screw locking. The bearing units have various types of perfect sealing devices and can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings. They're widely used in agriculture, construction, textile, foodstuff, and conveying industry, and so on.
2). Features
a. Rational Self-alignment;
b. Large load capacity;
c. Long life service;
d. Efficient sealing;
e. Bearing can be locked on the shaft easily;
f. Easy installation.
g.4 bolt flange assembly bearings
h.High rotation,Low noise,Long service life
i.High loading capability
j. Normal duty
3).The main products of our factory
- Cast iron pillow blocks
- Thermoplastic bearing housings
- All stainless steel mounted units.
- Accu-Grip Concentric lock Bearing Units(New!)
- Rod ends
- Spherical plain bearings
- Agriculture Bearings(Disc Harrow Bearings)
4).Applications
5).Company Introduction
1) Enterprise group combines industry with International trade
2) The 13th Year's Gold Supplier in Alibaba
3) Strict quality controll system with perfect facilities
4) Advanced production facilities
5) The abundant capability of R&D
6) High&New Tech enterprise,low carbon omission and environment friendly
6) For more details of the Model,please browse the website:
