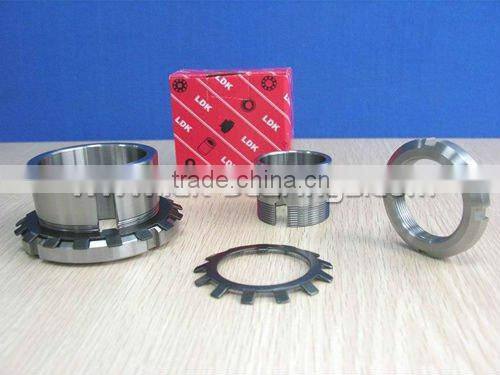

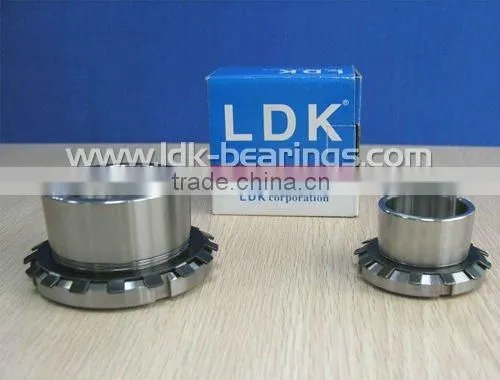

Help CenterH2340 Ball Bearing Adapter Sleeve
Related Products
-
H2340 Ball Bearing Adapter SleeveUS$ 0.2 - 100MOQ: 300 Pieces -
LDK Factory Adapter Sleeve Bearing ManufacturerUS$ 0.2 - 10MOQ: 500 Pieces
-
Bearing Adapter Sleeve and Lock Nut H2320US$ 0.2 - 10MOQ: 300 Pieces
-
H208 Sleeve Bearing Accessory Lock NutUS$ 0.2 - 100MOQ: 300 Pieces
-
Adapter Sleeve H SeriesUS$ 0.2 - 100MOQ: 300 Pieces
Specifications
1.ball bearing adapter sleeve with high load capacity2.Good polish effect
3.Convenient installation,dismantlement
1.Series of the ball bearing adapter sleeve
- Series H200,H300,H2300
- Series AH/AHX200(300,2300,3000)
- Series AH/AHX2200(3100,3200)
- Series AH/KM
- Series MB
- Series AL/MS,ALL/MS
2.Specification
1)Material:Carbon Steel
2)Quality:High Precision.Low tolerance(0~-0.01/-0.02mm for inner diameter. +/-0.2mm for deep height)
3)Professional manufacturer ,high reputation in domestic.
4)Certifications:ISO9001-2000 Standards.
5)Excellent quality,high temperature resistance,oil/fuel/water/weathering resistance.etc.
6)OEM/ODM welcome(logo,No, drawing or sample)
7)Application: agriculture,light textile,mining,food &beverage,pharmaceutical,chemical
processing,printing,dyeing,airport,air-conditioning and various kinds of conveying and rolling devices.
3.Advantages:
1) Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating as they can be used on smooth or stepped shafts.
2) They are easy to mount and require no additional location on the shaft.
3) When adapter sleeves are used on smooth shafts, the bearing can be located at any position on the shaft.
4) When used on stepped shafts, together with an abutment ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated.
4.Applications:
1)Adapter sleeve is used to fix the conic aperture self-aligning ball bearing (self-aligning ball bearing, self-aligning roller bearing) on the non-bearing shoulder bearing. It is simply structured and its working is reliable. Easy to replace the bearing.
2)Widely applied in the lines of textile, light industry, metallurgy, belt convey and transmission equipment, etc.
