Help CenterPillow Block Ball Bearing Housing P204
Related Products
Specifications
a)High precision,long lifeb)Insert bearing types:UC/NA/UK/SA/SB
c)Samples available
d)MOQ:300 pcs
1.Features of the pillow block ball bearing housing P204
1) High precision, long life, low noise, low vibration,
2) Reasonable price
3) Prompt delivery
4) Safety and protection from dirt
2.Specification of the mounted ball bearing units
1)Pillow block a are most extensively used among the bearing units:UCP,UCPE,UCAK and SBLP,SBLLP.These types are fixed to the shafts by means of the setscrews prepared in the innerring.
2)NAP,SALP and SALLP types are fixed to the shafts by the setscrews prepared in the eccentric locking collor.
3)UKP type is mounted to the shafts by use of adapter sleeves
4)Housing P200 series could be machined grooves on both sides to be mounted with metal covers for dust prevention and safty purpose.
3.The main series of the pillow block bearing
1) UCP200 series(Normal duty)
UCP201, UCP202, UCP203, UCP204, UCP205, UCP206, UCP207, UCP208, UCP209, UCP210, UCP211, UCP212, UCP213, UCP214, UCP215, UCP216, UCP217, UCP218
2)NAP200series (Normal duty)
NAP201,NAP202,NAP203,NAP204,NAP205,NAP206,NAP207,NAP208,NAP209,NAP210,NAP211,NAP212,NAP213,NAP214,
NAP215
3)UKP200+H series (Normal duty)
UKP205+H2305,UKP206+H2306,UKP207+H2307,UKP208+H2308,UKP209+H2309,UKP210+H2310,UKP211+H2311,
UKP212+H2312,UKP213+H2313,UKP215+H2315,UKP216+H2316,UKP217+H2317,UKP218+H2318
4)UCPX00 series(Medium duty)
UCPX05,UCPX06,UCPX07,UCPX08,UCPX09,UCPX10,UCPX11,UCPX12,UCPX13,UCPX14,UCPX15,UCPX16,UCPX17
5) UCP300 series(Heavy duty)
UCP305, UCP306, UCP307, UCP308, UCP309, UCP310, UCP311, UCP312, UCP313, UCP314, UCP315, UCP316, UCP317, UCP318, UCP319 ,UCP320
6)NAP300series(Heavy duty)
NAP305,NAP306,NAP307,NAP308,NAP309,NAP310,NAP311,NAP312,NAP313,NAP314,NAP315,NAP316,NAP317,NAP318,
NAP319,NAP320
7)UKP300+H series(Heavy duty)
UKP305+H2305,UKP306+H2306,UKP307+H2307,UKP308+H2308,UKP309+H2309,UKP310+H2310,UKP311+H2311,
UKP312+H2312,UKP313+H2313,UKP315+H2315,UKP316+H2316,UKP317+H2317,UKP318+H2318,UKP319+H2319,
UKP320+H2320
8)UCPE200 series (Normal duty)
UCPE201,UCPE202,UCPE203,UCPE204,UCPE205,UCPE206,UCPE207,UCPE208,UCPE209,UCPE210,UCPE211,UCPE212UCPE213,UCPE214,UCPE215
9)UCAK200 series (Normal duty)
UCAK201,UCAK202,UCAK203,UCAK204,UCAK205,UCAK206,UCAK207,UCAK208,UCAK209,UCAK210,UCAK211,UCAK212,
UCAK213,UCAK214,UCAK215
10)SALP200 series (Light duty)
SALP201,SALP202,SALP203,SALP204,SALP205,SALP206,SALP207
11)SALP200 series (Light duty)
SBLP201,SBLP202,SBLP203,SBLP204,SBLP205,SBLP206,SBLP207
12)UCPA200 series (Normal duty)
UCWPA201,UCWPA202,UCWPA203,UCPA201,UCPA202,UCOA203,UCPA204,UCPA205,UCPA206,UCPA207,UCPA208,
UCPA209,UCPA210,UCPA211,UCPA212
13)UCPW200 series (Normal duty)
UCPW201,UCPW202,UCPW203,UCPW204,UCPW205,UCPW206,UCPW207,UCPW208,UCPW209,UCPW210
14)UCPG200 series (Normal duty)
UCPG201,UCPG202,UCPG203,UCPG204,UCPG205,UCPG206,UCPG207,UCPG208,UCPG209,UCPG210
15)UCPH200 series (Normal duty)
UCPH201,UCPH202,UCPH203,UCPH204,UCPH205,UCPH206,UCPH207,UCPH208,UCPH209,UCPH210,UCPH211,
UCPH212
4.The main products of our factory

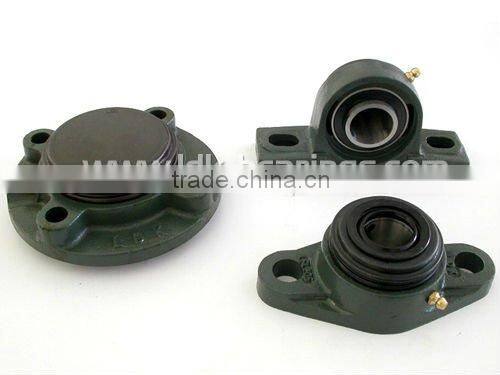

- Cast iron pillow blocks

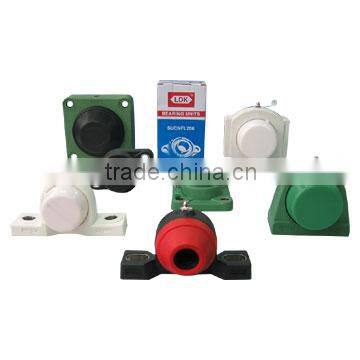

- Thermoplastic bearing housing

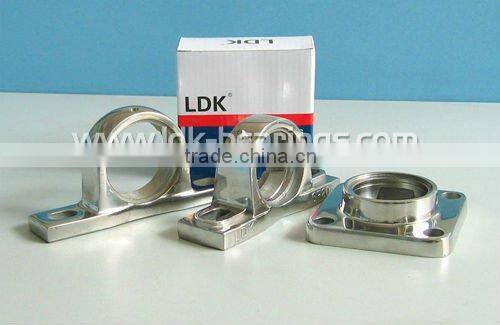

- All stainless steel mounted units.
- Accu-Grip Concentric lock Bearing Units(New!)
- Rod ends
- Spherical plain bearings
- Agriculture Bearings(Disc Harrow Bearings)
5.Applications
1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Airport,
10)Air-conditioning,
11)Various kinds of conveying and rolling devices.
6.Company Introduction
1) Enterprise group combines industry with International trade
2) The 10th Year's Gold Supplier in Alibaba
3) Strict quality controll system with perfect facilities
4) Advanced production facilities
5) The abundant capability of R&D
6) High&New Tech enterprise,low carbon omission and environment friendl
7. For more details of our products,please visit:
