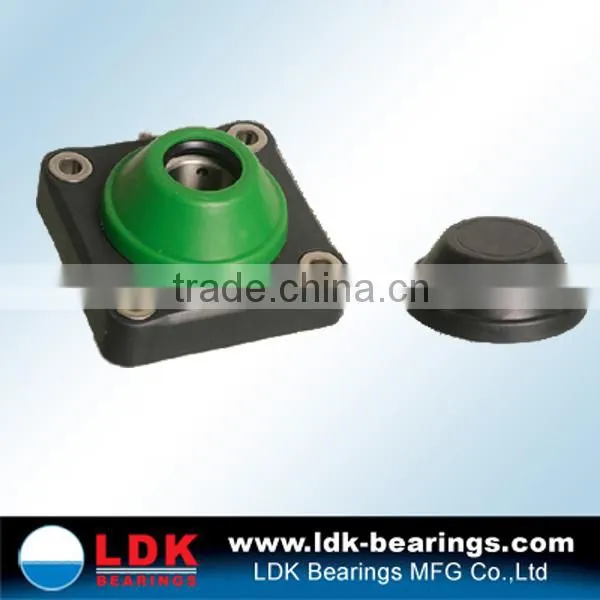

LDK WP-F200 Series Plastic Bearing Housing Wih Cover and Seal

Specifications

1.Features:

1)Light weight

2)Stainless steel grease nipples are standard as well as bolt holes

3)Refined design for applying closed and open caps in material of reinforced plastic

4)Loading rating:Strong or equal to pressed steel and cast iron housing

5)Long lige

2.Insert options:
1)Stainless steel bearings
2)Chrome steel bearings
3)Black oxided Chrome steel bearings

3.The series of the Thermoplastic Bearing Units

1)WP-F200

2)WP-P200

3)WP-FL200

4. Advantages of LDK Thermoplastic housings

LDK Thermoplastic housings are specially designed to meet particular engineering demand for food ,beverage photo, and the chemical industries. The maintenance and the corrosion resistance characteristics as well as a low weight element has proven to stand the hard working conditions for all needed application.

LDK Thermoplastic housings can be delivered with Chrome steel bearings inserts black oxided inserts or stainless steel inserts for maximum corrosion resistance.

LDK Thermoplastic housings are designed to meet important engineering demand for:

-- Frequent washdowns

--Corrosion resistance

-- Exposure to harsh chemicals

--Exposure to high humidity

--Regreasable fittings

--Operating temperature -35°C to 102°C

LDK thermoplastic housings can be delivered with food approved grease to any specification. Please contact your local distributor for your grease specification requirement.

5.Applications industries:

Because of their corrosion-resistant and non-magnetic properties. LDK thermoplastic housings are used in a wide variety of industries:

-- Food processing

-- Canning

--Bottling

--Pharmacy industry

--Chemical processing

--Photo industry

6.LDK  Anti-Bacterial protection series

1.Set Screw or Eccentric locking color shaft locking.

2.Solid base design: ideal for sanification.

3.Material:

c 1.Housing in reinforced platic polymer(PBT/PA/PP)with anti-bacterial protection additive

which is effective against most of the common bacterial that may grow in foodstuff like

E-coli, Salmonella etc.

c 2.Protection caps in reinforced PP polymer with anti-bacterial protection additive which is effective against most    of  common bacterial that may grow in foodstuff like E-coli, Salmonella etc.

c 3.Seal and O ring in NBR rubber. On request supplied in Viton rubber.Viton material offers high resistance to chemical agents.

c 4. Grease nipple in stainless steel AISI316.

c 5.Seamless bushing on mounting holes in stainless steel AISI 316.

c 6.Ordering example:

   Anti-Bacterial protection plastic housings with stainless steel insert bearings:ABTP-SUCP205

   Anti-Bacterial protection plastic housings with chrome steel insert bearings:ABWP-SBP205
