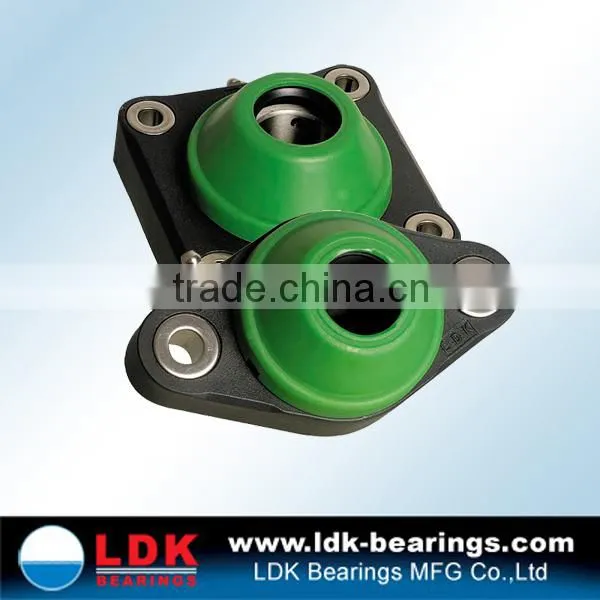

Help CenterLDK Plastic Housing Units--bearing Housing F208
Related Products
-
LDK Plastic Pillow Block Bearing T206US$ 4 - 8MOQ: 300 Pieces -
LDK Pillow Block Bearing 209US$ 0.5 - 35MOQ: 300 Pieces
-
LDK TP-P208 Plastic Flange Bearing HousingUS$ 0.5 - 35MOQ: 300 Pieces
-
LDK TP-SUCP204 Bearing With Plastic CoverUS$ 5 - 30MOQ: 200 Pieces
-
LDK TP-FB205 3-bolt Flange BearingUS$ 5 - 30MOQ: 200 Pieces
Specifications
LDK mounted bearing units are used in a wide variety of industries-Food processing
-Canning
-Bottling
-Pharmacy industry
1.Features:
Thermoplastic bearing housing with stainless steel bearings: TP-SUCP200 white /
black / green + OC / CC, TP-SUCF200 white/black/green + OC / CC, TP-SUCFL200
white/black/green + OC / CC, TP-SUCT200 white/black/green + OC / CC
2.LDK Thermoplastic housings
LDK Thermoplastic housings are specially designed to meet particular engineering demand for food ,beverage photo, and the chemical industries. The maintenance and the corrosion resistance characteristics as well as a low weight element has proven to stand the hard working conditions for all needed application.
LDK Thermoplastic housings can be delivered with Chrome steel bearings inserts black oxided inserts or stainless steel inserts for maximum corrosion resistance.
LDK Thermoplastic housings are designed to meet important engineering demand for:
-- Frequent washdowns
--Corrosion resistance
-- Exposure to harsh chemicals
--Exposure to high humidity
--Regreasable fittings
--Operating temperature -35°C to 102°C
LDK thermoplastic housings can be delivered with food approved grease to any specification. Please contact your local distributor for your grease specification requirement.
Because of their corrosion-resistant and non-magnetic properties. LDK thermoplastic housings are used in a wide variety of industries:
-- Food processing
-- Canning
--Bottling
--Pharmacy industry
--Chemical processing
--Photo industry
3.LDK Anti-Bacterial protection series
1.Set Screw or Eccentric locking color shaft locking.
2.Solid base design: ideal for sanification.
3.Material:
c 1.Housing in reinforced platic polymer(PBT/PA/PP)with anti-bacterial protection additive
which is effective against most of the common bacterial that may grow in foodstuff like
E-coli, Salmonella etc.
c 2.Protection caps in reinforced PP polymer with anti-bacterial protection additive which is effective against most of common bacterial that may grow in foodstuff like E-coli, Salmonella etc.
c 3.Seal and O ring in NBR rubber. On request supplied in Viton rubber.Viton material offers high resistance to chemical agents.
c 4. Grease nipple in stainless steel AISI316.
c 5.Seamless bushing on mounting holes in stainless steel AISI 316.
c 6.Ordering example:
Anti-Bacterial protection plastic housings with stainless steel insert bearings:ABTP-SUCP205
Anti-Bacterial protection plastic housings with chrome steel insert bearings:ABWP-SBP205
STANDARD THERMOPLASTIC MOUNTED UNITS WITH ANTI-BACTERIA PROTECTION
Housing No |
Unit No |
|||
W/SS insert set screw type |
W/SS insert eccentric locking type |
|||
ABTP-P204~212 |
ABTP-SUCP204~212 |
ABTP-SSBP204~212 |
ABTP-SSAP204~212 |
ABTP-SNAP204~212 |
ABTP-F204~212 |
ABTP-SUCF204~212 |
ABTP-SSBF204~212 |
ABTP-SSAF204~212 |
ABTP-SNAF204~212 |
ABTP-FL204~212 |
ABTP-SUCFL204~212 |
ABTP-SSBFL204~212 |
ABTP-SSAFL204~212 |
ABTP-SNAFL204~212 |
ABTP-PA204~210 |
ABTP-SUCPA204~210 |
ABTP-SSBPA204~210 |
ABTP-SSAPA204~210 |
ABTP-SNAPA204~210 |
ABTP-T204~210 |
ABTP-SUCT204~210 |
ABTP-SSBT204~210 |
ABTP-SSAT204~210 |
ABTP-SNAT204~210 |
ABTP-FB204~210 |
ABTP-SUCFB204~210 |
ABTP-SSBFB204~210 |
ABTP-SSAFB204~210 |
ABTP-SNAFB204~210 |
WATER PROOF MOUNTED UNITS WITH ANTI-BACTERIAL PROTECTION
Housing No |
Units No. |
ABWP-P204~208 |
ABWP-SSBP204~208 |
ABWP-F204~208 |
ABWP-SSBF204~208 |
ABWP-FL204~208 |
ABWP-SSBFL204~208 |
4.Company Introduction
1) Enterprise group combines industry with International trade
2) Manufacturing Bearings since 1998 and the 13th Year's Gold Supplier in Alibaba
3) Strict quality control system with perfect facilities
4) Advanced production facilities
5) The abundant capability of R&D
6) High & New Tech enterprise, low carbon omission and environment friendly
7) Large variety of product range, your one-stop choice
LDK HONOR
PART OF EQUIPMENT
PACKAGE ( Plywood pallets )
5. For more details of our products, please visit:
