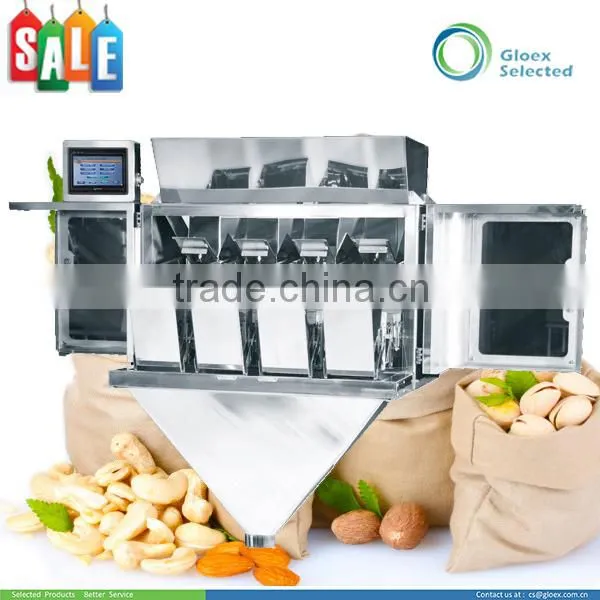

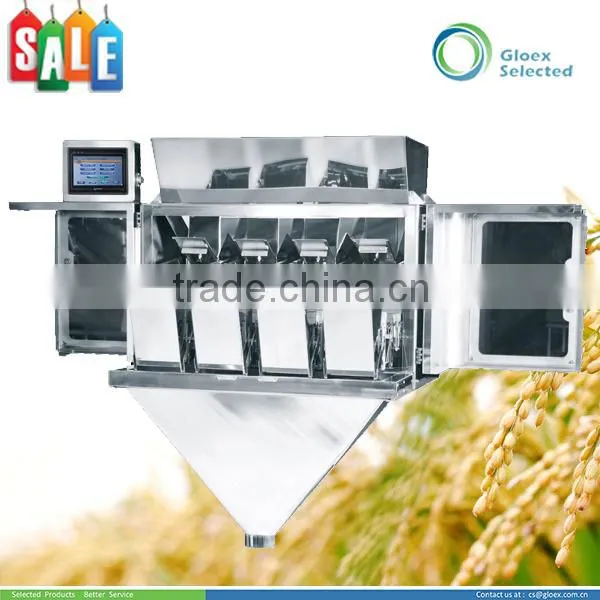

Help CenterT Linear Weigher
Related Products
This machine is applicable for measure loose powder, granule or other irregular solidity in form of bottle, can, or pouches, with different type of capping or sealing device is capable to form a production line, the detail application description as following table:
Issue |
Application Description |
Applicable Products |
Suitable for loose powder or granule dosing and filling. Such as sugar, salt, detergent powder, coffee powder, nuts, seeds, popcorn etc. |
Applicable Containers |
Flexible for filling containers, like premade pouches, can, barrel or bottles. |
Following are the reference style of packaging
Standard Features
• Granule , loose powder or other irregular solidity Products dosing and filling
• Stainless steel 304 structure and surface, Mirror deal process for product touching parts
• MCU & HMI Control, More stable operation, Easy for parameter setting and troubleshooting
• Storing 99 configurations of parameter, convenient for products changing
• Advanced software integrated, faster dosing speed and flexible positive or negative deviation setting up, and even for piece counting conversion.
• Complete statistics function, like single dosing weight, accumulative weight, percentage of pass, weighing deviation etc. adapt different production management requirement
• Ingress Protection 65 grade waterproof and dustproof, reliable performance
• International reputable vibrator and weight sensor enable the accuracy of dosing
• Separate control module for each weighing head, makes function expanding and maintenance easier and at lowest cost
Optional Features
• Multi-products weighting and filling in one container
• Unqualified weight rejecting and discharging
• Configure with platform for semi-automatic product packaging
Except for the design of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:
No |
Components |
Material / Short List |
1 |
Products Touching Parts |
Stainless Steel 304 with mirror deal process as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 |
Structure |
Stainless Steel 304 |
3 |
Surface |
Stainless Steel 304 |
4 |
HMI-Touch Screen |
Weinview, Siemens,Delta,Kinco |
5 |
Stepper/Servo Motor |
Teco, Delta, Panosonic,Moons |
6 |
Key Electric Components |
Schneider,Chint, Ls, Ark |
7 |
Key Protection & Relay |
Schneider,Delixi |
8 |
Weight Sensor |
Zemic |
Catalogue/1C-xx-xx |
TY-M2 |
TY-M4 |
Weighing Heads |
2**1) |
4 |
Best Filling Range ‘g |
25-500*n |
20-2000 |
Filling Accuracy ‘g |
+/- 0.5-2 |
+/- 0.2-2 |
Filling Speed -times/min |
10-30 |
10-50 |
Single Hopper Volume-Liter |
8 |
3 |
Power Requirement |
AC220 50/60Hz |
AC220 50/60Hz |
Power Consumption-KW |
0.8 |
1.0 |
Compress Air Required |
NA |
NA |
Compress Air Consumption-m3/min |
NA |
NA |
Approximate Weight -kg |
185 |
200 |
Dimension ( ‘mm ) |
1160*1030*1260 |
1500*1200*1150 |

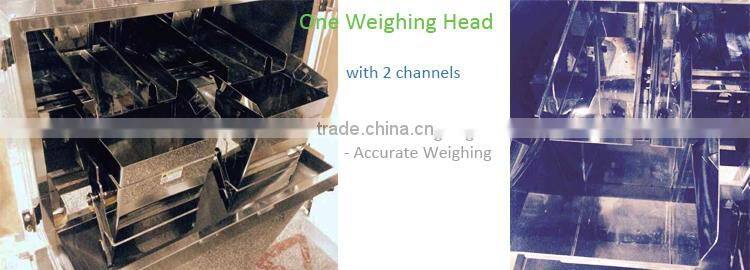

**1)Note : There are 2 vibrating weighing channels for each head, one is for fast weighing with bigger filling channel, and one is for accurate weighing with smaller filling channel. These 2 channel enable the weigher suitable for large volume weighing, faster and accurate. Following are reference photo for weighing head
**Note: the above one weighing head , with 2 channels applies for 2 heads linear weigher
If you think the above machine can't fulfill your requirement , please click the following link to get more machine demostration:
Pouch & Sachet Packaging Machine
In order to enable you understand our products conveniently, following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
• Multi-products weighting and filling in one container
• Unqualified weight rejecting and discharging
• Configure with platform for semi-automatic product packaging
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
