Product Details
Application: | Beverage, Chemical, Commodity, Food, Medical | Packaging Type: | Film, Foil, Pouch | Packaging Material: | Paper, Plastic |
Automatic Grade: | Automatic | Driven Type: | Electric | Voltage: | 380V 50/60HZ |
Power: | 6.0 KW | Place of Origin: | Hubei, China | Brand Name: | Gloex Selected |
Model Number: | QF-PH-PP131-159 | Weight: | By type | Dimension(L*W*H): | 1800*1400*2300 mm |
Certification: | CE approval | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

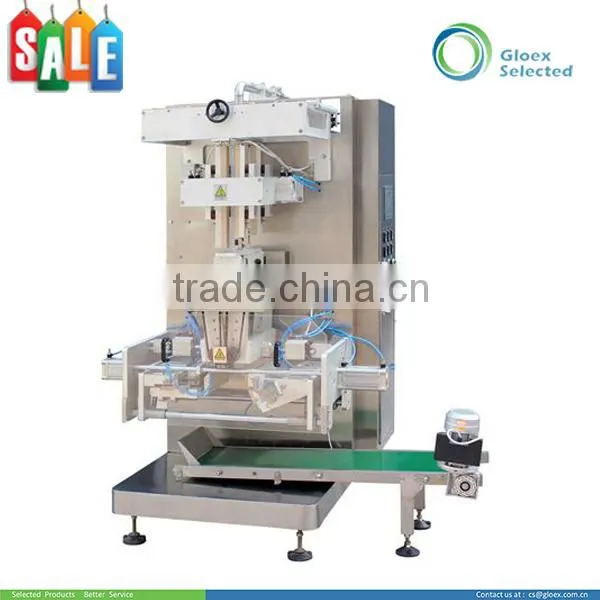

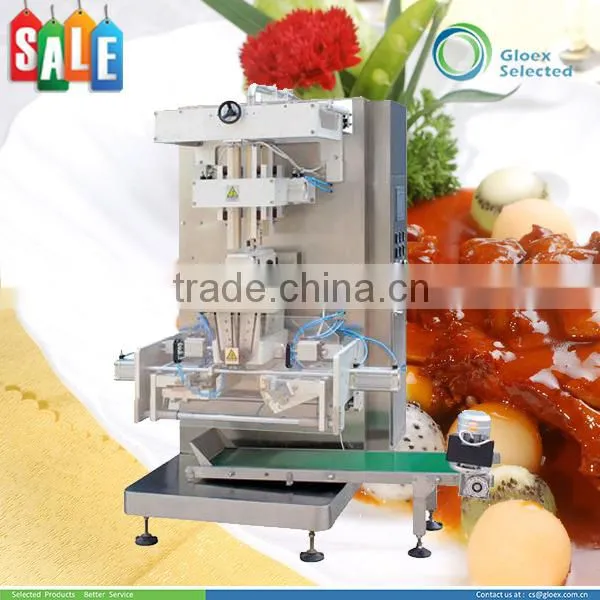

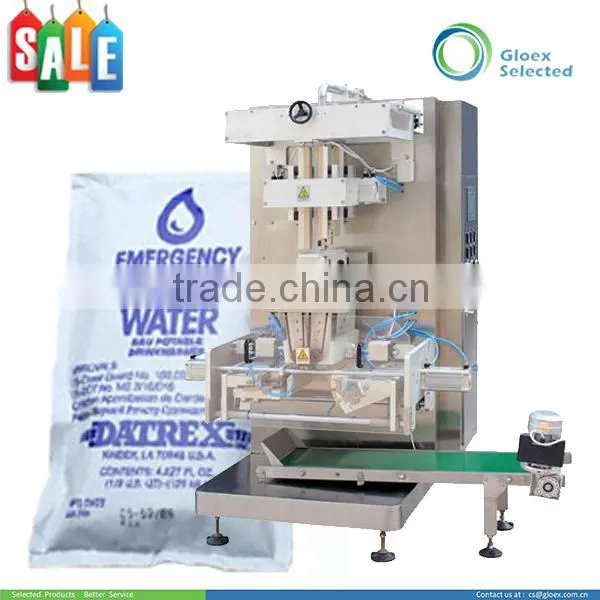

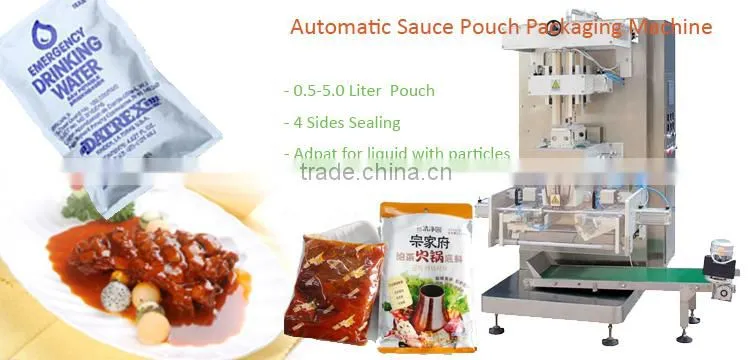

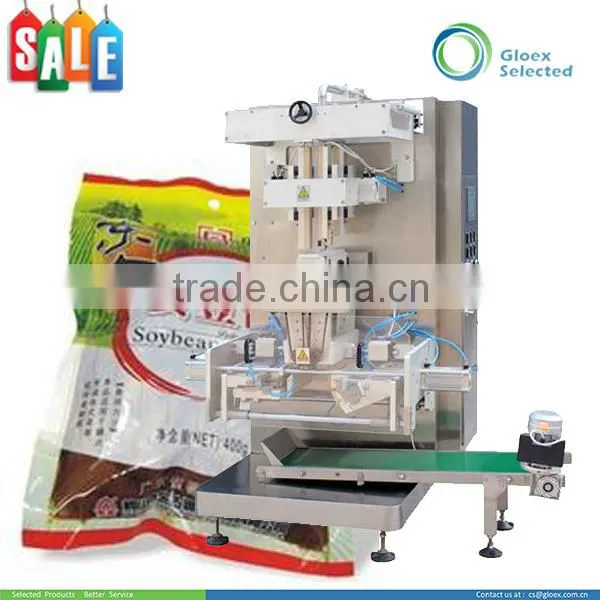

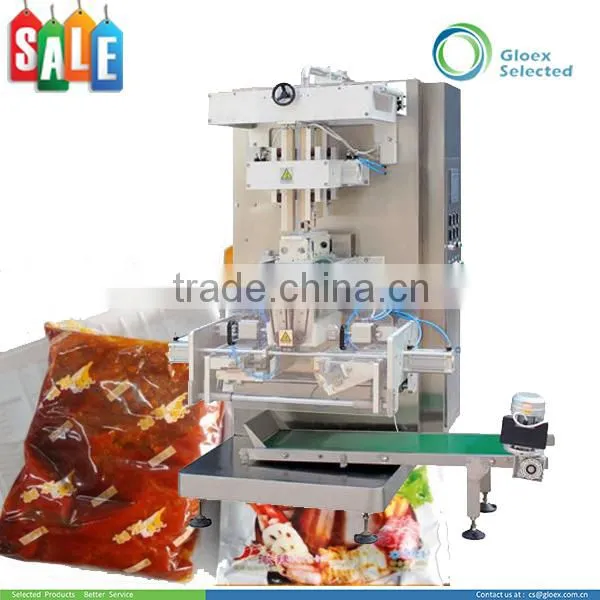

New design CE Approval full automatic sachet water packaging machine
This machine is applicable for packing liquid with particles in form of 4 sides sealing pouch, with different patterns of sealing, which include processes of packaging film-pulling, liquid dosing, filling, pouch-making, sealing and cutting off, the detail application description as following table:
Issue | Application Description |
Applicable Pouches | Pouch with 4 sides sealing style |
Applicable Products | Normal liquid or viscous liquid with particle such as water , sauce, curry paste etc |
Applicable Packaging Material | Laminate Heat sealable packing materials such as OPP/PE,BOPP/OPP/PE,PET/AL etc |

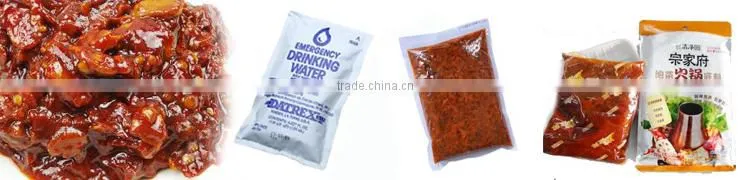

Following are the reference style of pouches
Standard Features
• Products dosing, Filling, Laminate heat sealable 4sides sealing pouch making and sealing.
• Stainless steel 304 for main structure and surface
• PLC & HMI Control Integrated, easy for operation and troubshooting
• Simple changing of pouch former, to adapt different pouch size requirement
• Intelligent temperature controlling configuration, ensure the artistic and neat sealing
• Configure with packaging film pre-pulling device, to enable stable pouch making
• No film no filling, and easy to change the packaging film
Catalogue/1U-xxxx | J-5000 |
Dosing Device | Screw Pump |
Type of Sealing | 4 sides Sealing |
Width of Pouch-mm | 100-300 |
Length of Pouch-mm | 100-350 |
Packaging Range-ml | 500-5,000 |
Packing Speed –Pouches/min | 10-20 |
Filling Accuracy | +/-1.5% |
Power Consumption-KW | 6.0 |
Power Requirement | 380V 50/60HZ |
Compress Air Requirement | 0.65 Mpa |
Compress Air Consumption | 0.7m3/min |
Approximate Net Weight -kg | 850 |
Dimension ( ‘mm ) | 1800*1400*2300 |
Except for the design of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:
No | Components | Material / Short List |
1 | Products Touching Parts | Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 | Main Structure | Stainless Steel 304 |
3 | Surface | Stainless Steel 304 |
4 | Programmable Logic Controller | Delta, Siemens, Mitsubishi, Panosonic |
5 | Touch Screen | Weinview, Siemens,Delta,Kinco, Panosonic |
6 | Stepper/Servo Motor | Teco, Delta, Panosonic,Leadshine |
7 | Frequency Convertor | Delta, Schneider,Leadshine |
8 | Key Electric Components | Schneider,Chint, Ls, Ark |
9 | Key Protection & Relay | Schneider |
10 | Cylinder, Filter | Airtac , SMC |
10 | Photocell Sensor | Autonics , Keyence, Leuze, Panosonic, Datalogic |
11 | Vacuum Sucker | Airtac, Sunx |
12 | Temperature Controller | Omoron |
Practically, in the market, compare with other types of machine, this vertical type machine its advantages as indicated in the following table:
No | Issue | Advantage |
1 | Sealing Style | 4 sides sealing even for 5 liter pouch , ensure no leakage , beautiful aspect |
2 | Dosing | Screw pump as the dosing device, suitable for liquid with particle |
3 | Volume | Adapt for 0.5 – 5.0 liter filling |
If you think the products above can't fulfill your requirement , please click following link to get more pouch packaging solutions, like: Sachet Flat / Pillow Pouch , Gusset Pouch, Stand up Pouch , even with zipper or spout
If you need other liquid pouch packaging machine , like liquid sachet or pouch with spout , 2.5-25 liter , 0.5-5.0 liter or 200 ml liquid pouch packaging machines
In ordr to enable you understand our products conveniently , following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Filling Products
- Type of pouch to be used , with spout or not , and position of spout
- Capacity requirement, namely how many pouches per hour
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
